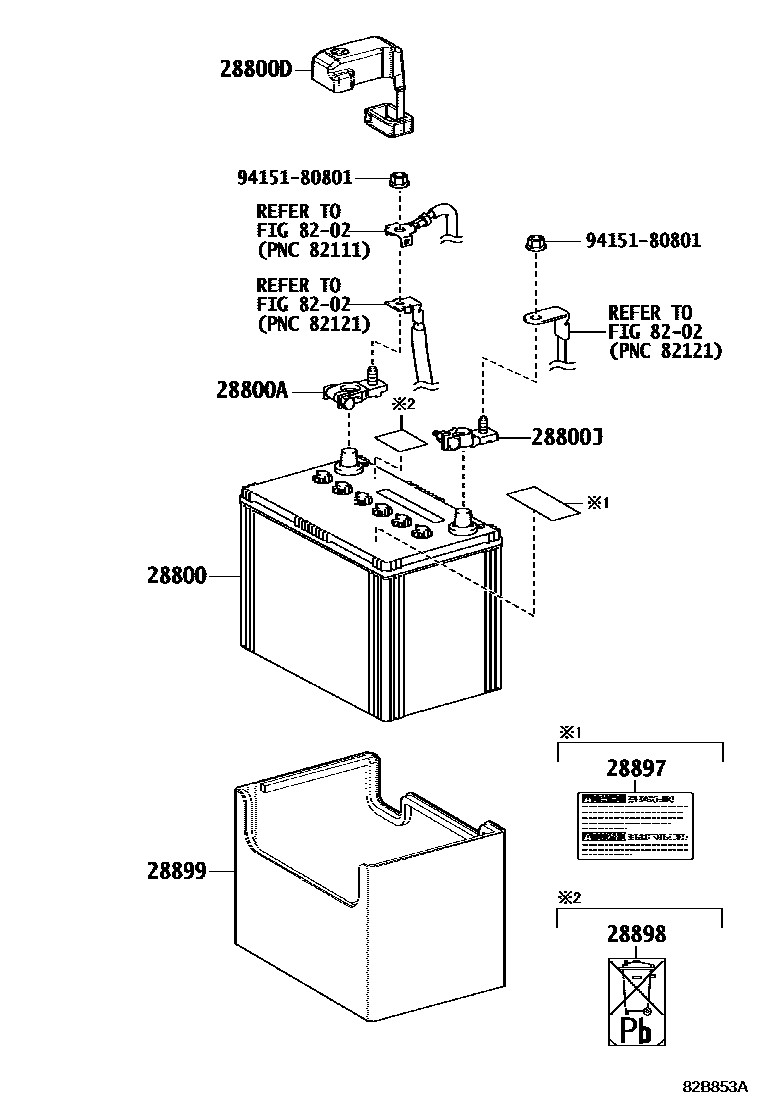

BATTERY & BATTERY CABLE

0001 1 0002 112V BATTERY 0003 1HV BATTERY 0004 1HV BATTERY 0005 1HV BATTERY

28800BATTERY

main28800-31291i2GRFXS..GYL26201803-202302

S55D23L

sub28800-31292

main28800-38080i2GRFKS..GGL26201712-202302

80D26L

sub28800-38081

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFXS..GYL26201803-201908

main90982-05056i2GRFKS..GGL26201712-201908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-48250i2GRFKS..GGL26201712-201908

28800JTERMINAL, BATTERY NEGATIVE

main90982-06061i2GRFXS..GYL26201803-201908

main90982-06070i2GRFKS..GGL26201712-201908

28897PLATE, BATTERY CAUTION

main28897-31040i2GRFKS..GGL26201712-201805

main28897-38070i2GRFKS..GGL26201806-201908

28898PLATE, BATTERY

main28898-46020i2GRFKS..GGL26201712-201908

28899INSULATOR, BATTERY

main28899-31100i2GRFXS..GYL26201803-202109

main28899-31220i2GRFKS..GGL26201712-201908

8202

9415180801

main94151-80801

9 parts on this diagram · 5 diagrams in section
