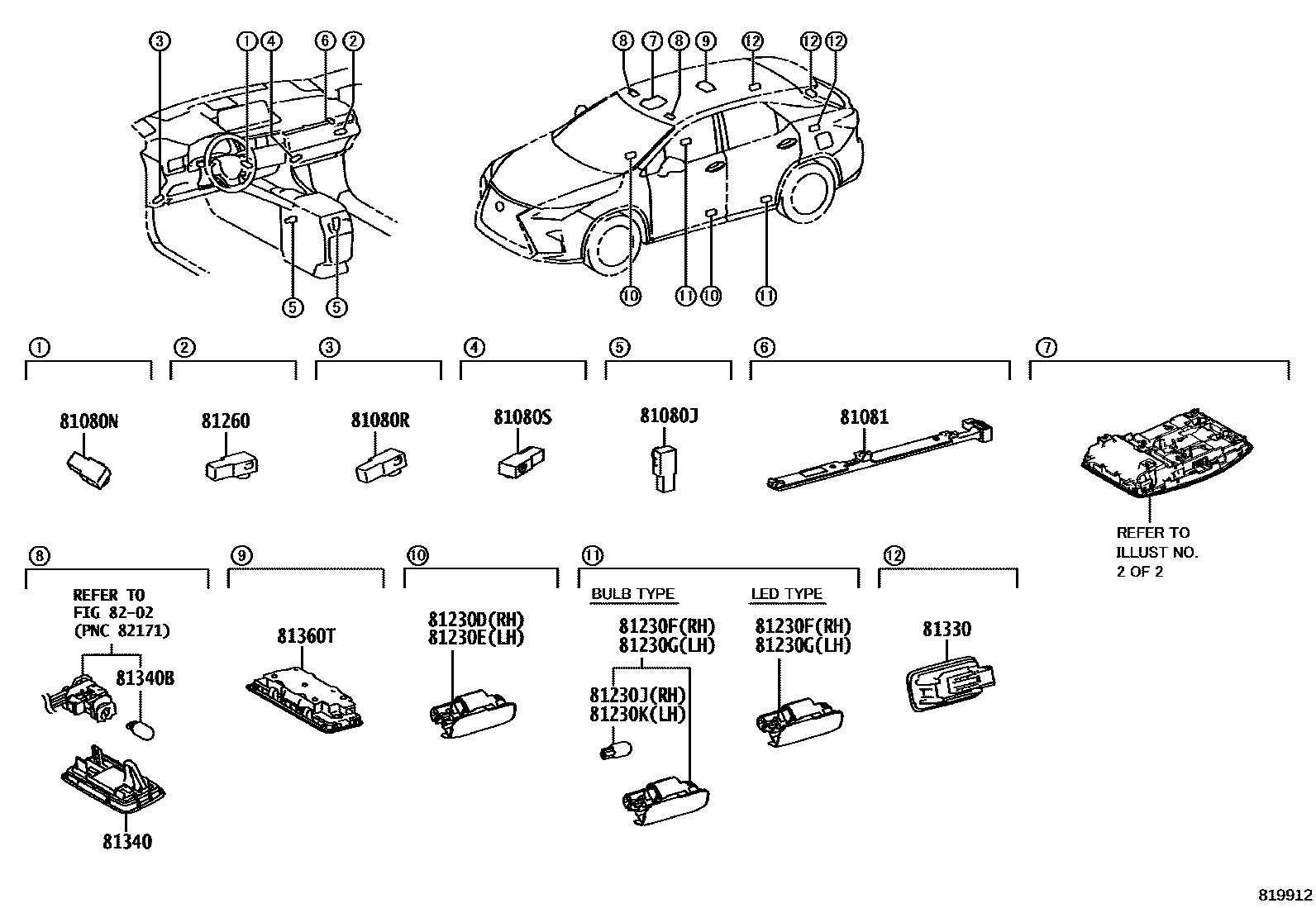

INTERIOR LAMP

0001 1 0002 1 0003 1 0004 1

81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-33290iGGL26,GYL26¥920201712-201908

81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1

main81080-30010iGGL26,GYL26¥1,020201712-201908

81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH

main81080-33290iGGL26,GYL26¥920201712-201908

81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH

main81080-33290iGGL26,GYL26¥920201712-201908

81081LAMP SUB-ASSY, INTERIOR ILLUMINATION

main81081-48010¥3,880

main81081-48011

main81081-48020¥3,230

81230DLAMP ASSY, FRONT DOOR COURTESY, RH

main81230-30200iGGL26,GYL26¥990201712-201908

81230ELAMP ASSY, FRONT DOOR COURTESY, LH

main81230-30200iGGL26,GYL26¥990201712-201908

81230FLAMP ASSY, REAR DOOR COURTESY, RH

main81230-30200iGGL26,GYL26¥990201712-201908

81230GLAMP ASSY, REAR DOOR COURTESY, LH

main81230-30200iGGL26,GYL26¥990201712-201908

81230JBULB(FOR REAR DOOR COURTESY LAMP RH)

main90981-12010iGGL26,GYL26¥110201712-201908

12V 5W

81230KBULB(FOR REAR DOOR COURTESY LAMP LH)

main90981-12010iGGL26,GYL26¥110201712-201908

12V 5W

81260LAMP ASSY, GLOVE BOX

main81080-33290iGGL26,GYL26¥920201712-201908

81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1

main81360-78020iGGL26,GYL26¥1,670201712-201908

81340LAMP ASSY, VANITY

main81340-30110iGGL26,GYL26¥1,670201712-201908

81340BBULB (FOR VANITY LAMP)

main90981-11062iGGL26,GYL26¥340201712-202209

12V 8W

81360TLAMP ASSY, SPOT

main81360-48120-A0iGGL26,GYL26201712-201908

ECRU,TRIM0#,5#,6#

sub81360-48120¥12,500

main81360-48120-B1iGYL26201908

MOON STONE,TRIM1#,2#,4#,8#

sub81360-48120¥12,500

main81360-48120-B1iGGL26201712-201908

MOON STONE,TRIM1#,2#,4#

sub81360-48120¥12,500

8202

17 parts on this diagram · 4 diagrams in section
