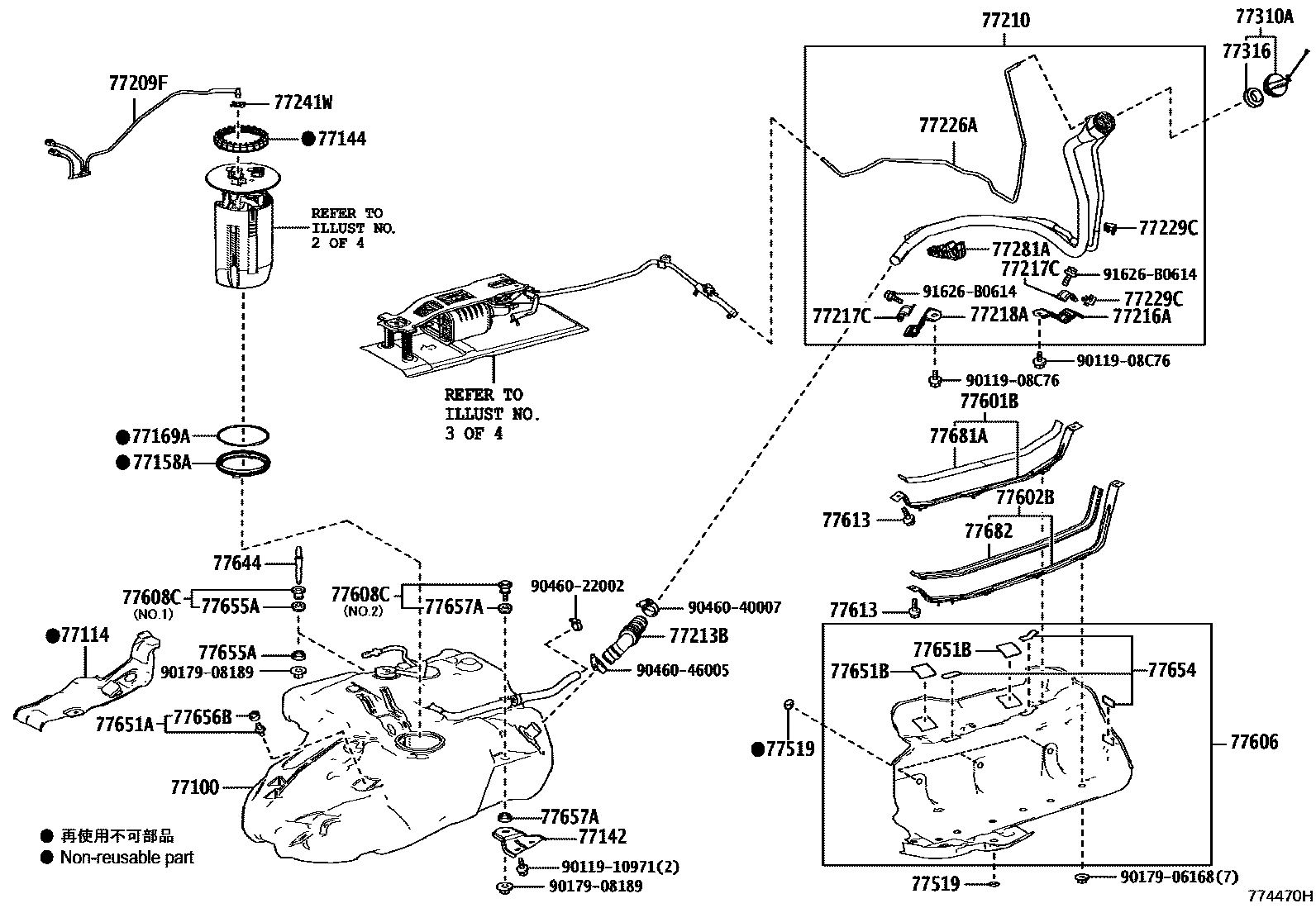

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL PUMP 0004 1FUEL PUMP 0005 1FUEL TUBE 0006 1FUEL TUBE 0007 1FUEL LID OPENER

77100TANK ASSY, FUEL

main77001-48201iGGL26¥41,200201712-201908

sub77001-0E090¥41,200

sub77114-0E060¥2,720

sub77213-0E060¥2,420

sub77652-48060¥850

sub77653-0E010¥200

sub90460-50008¥240

main77001-48250iGYL26201803-202209

77114PLATE, FUEL TANK SIDE, REAR

main77114-48040iGGL26¥2,710201712-201908

77142BRACKET, FUEL TANK MOUNTING, REAR

main77142-48010iGGL26¥910201712-201908

77144RETAINER, FUEL PUMP GAUGE

main77144-48020iGGL26¥2,490201712-201908

77158ASUPPORT, TANK SUCTION TUBE

main77158-48020iGGL26¥1,720201712-201908

77169AGASKET, FUEL SUCTION TUBE SET

main77169-33030iGYL26¥770201803-201908

main77169-48040iGGL26¥240201712-201908

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-48120iGGL26201712-201908

main77209-48160iGYL26201803-201908

77210PIPE ASSY, FUEL TANK FILLER

main77210-48350iGGL26201712-201908

main77210-48360iGYL26201803-201908

77213BHOSE, FUEL TANK TO FILLER PIPE

main77213-48110iGGL26¥1,750201712-201908

77216ASUPPORT, FUEL TANK FILLER PIPE, NO.1

main77216-48080iGGL26201712-201908

main77216-48100iGYL26201803-201908

77217CSUPPORT, FUEL TANK FILLER PIPE, NO.2

main77217-48080iGGL26,GYL26201712-201908

77218ASUPPORT, FUEL TANK FILLER PIPE, NO.3

main77218-48110iGGL26201712-201908

main77218-48150iGYL26201803-201908

77226ATUBE, FUEL TANK BREATHER, NO.6

main77226-48170iGGL26201712-201908

main77226-48180iGYL26201803-201908

77229CCLAMP, BREATHER TUBE

main77229-48050iGGL26¥300201712-201908

main77229-48090iGYL26201803-201908

77241WCLIP, TUBE JOINT

main77241-33011iGGL26,GYL26¥80201712-201908

77281BRACKET, FUEL MAIN TUBE, NO.1

main77281-48130iGGL26¥220201712-201908

77281ACLAMP, FUEL FILLER PIPE

main77281-48090iGGL26¥1,020201712-201908

main77281-48190iGYL26201803-201908

77310ACAP ASSY, FUEL TANK

main77300-12020iGGL26¥1,660201712-201908

main77300-48020iGYL26¥1,960201803-201908

77316GASKET, FUEL TANK CAP

main77316-52040iGGL26¥230201712-201908

main77316-75020iGYL26¥200201803-201908

77519SPACER, FUEL TANK BRACKET

main77529-48010iGGL26¥240201712-201908

77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH

main77601-48190iGGL26¥2,300201712-201908

main77601-48200iGYL26¥2,010201803-201908

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-48180iGGL26¥4,260201712-201908

main77602-48200iGYL26¥2,010201803-201908

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-48140iGGL26¥4,440201712-201908

main77606-48150iGYL26¥3,400201803-201908

77608CCUSHION SET, FUEL TANK

main77608-48011iGGL26¥410201712-201908

NO.1

main77608-48040iGGL26¥410201712-201908

NO.2

77613BOLT, FUEL TANK BAND SET

main90119-10971iGGL26,GYL26¥120201712-201908

77644BOLT, FUEL TANK

main77644-48010iGGL26¥200201712-201908

77651ACUSHION, FUEL TANK, NO.1

main77651-12070iGYL26¥230201803-201908

main77651-48020iGGL26¥230201712-201908

77651BCUSHION, FUEL TANK

main77651-12070iGGL26¥230201712-201908

77654CUSHION, FUEL TANK, NO.2

main77652-48020iGGL26¥280201712-201908

77655ACUSHION, FUEL TANK, NO.5

main77655-48011iGGL26¥170201712-201908

77656BCUSHION, FUEL TANK, NO.6

main77656-48020iGGL26¥220201712-201908

77657ACUSHION, FUEL TANK, NO.5

main77655-48020iGGL26¥170201712-201908

77681ASEAT, FUEL TANK BAND

main77681-48050iGGL26¥1,270201712-201908

main77681-60200iGYL26¥780201803-201908

77682SEAT, FUEL TANK BAND, LH

main77681-48090iGYL26¥810201803-201908

main77682-48050iGGL26201712-201908

9011908C76

main90119-08C76¥80

9011910971

main90119-10971¥120

9017906168

main90179-06168¥80

9017908189

main90179-08189¥160

9046022002

main90460-22002¥530

9046040007

main90460-40007¥190

9046046005

main90460-46005¥190

91626B0614

main91626-B0614¥60

42 parts on this diagram · 7 diagrams in section
