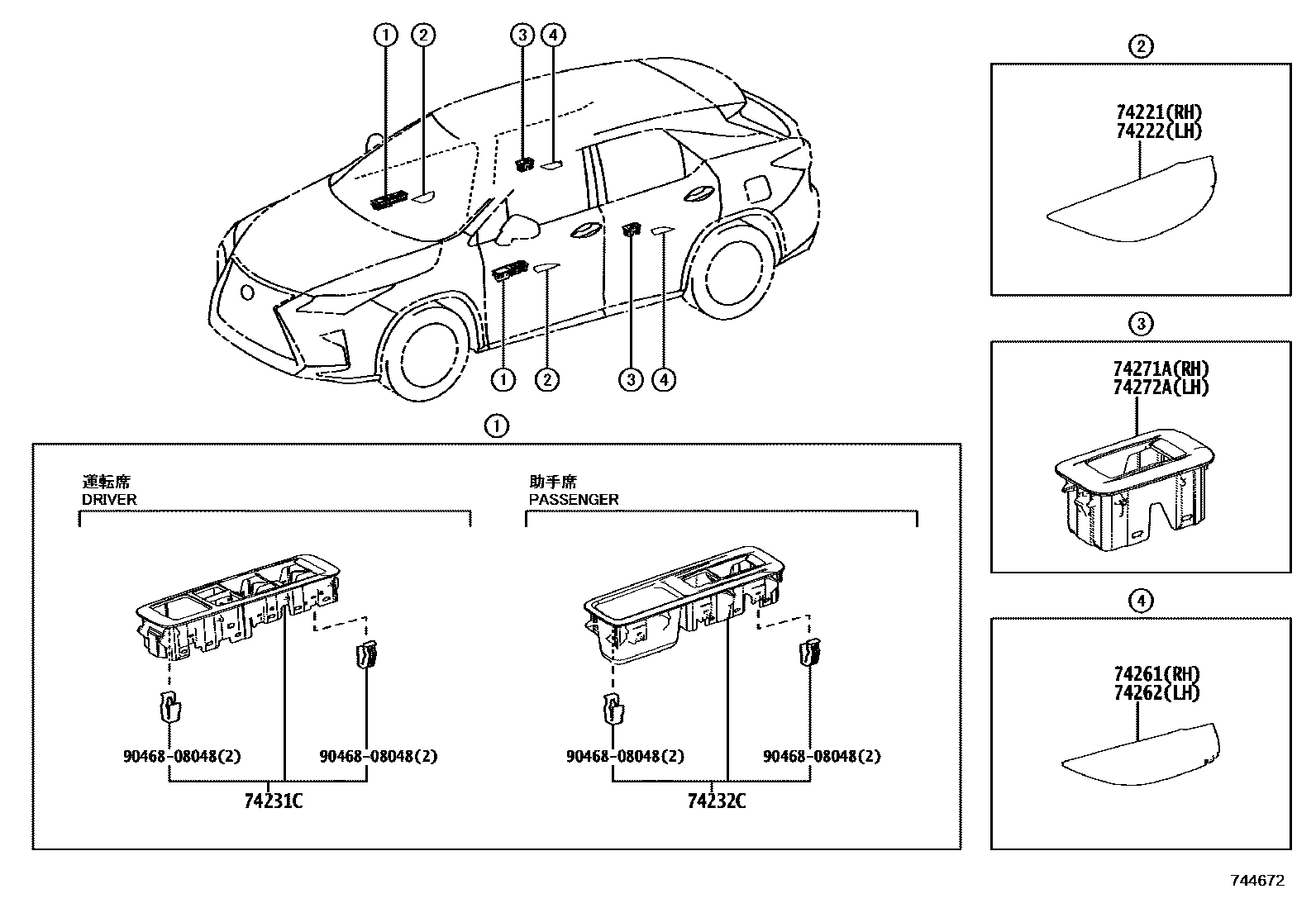

ARMREST & VISOR
74221COVER, DOOR ARMREST, RH
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
NOBLE BROWN,TRIM0#,5#,6#
74222COVER, DOOR ARMREST, LH
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
NOBLE BROWN,TRIM0#,5#,6#
74231CPANEL, FRONT DOOR ARMREST BASE, UPPER DRIVER SIDE
74232CPANEL, FRONT DOOR ARMREST BASE, UPPER PASSENGER SIDE
74261COVER, REAR DOOR ARMREST, RH
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM00,01,02,03,04
74262COVER, REAR DOOR ARMREST, LH
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
NOBLE BROWN,TRIM0#,5#,6#
74271APANEL, REAR DOOR ARMREST BASE, UPPER RH
74272APANEL, REAR DOOR ARMREST BASE, UPPER LH
9046808048
main90468-08048
9 parts on this diagram · 2 diagrams in section
