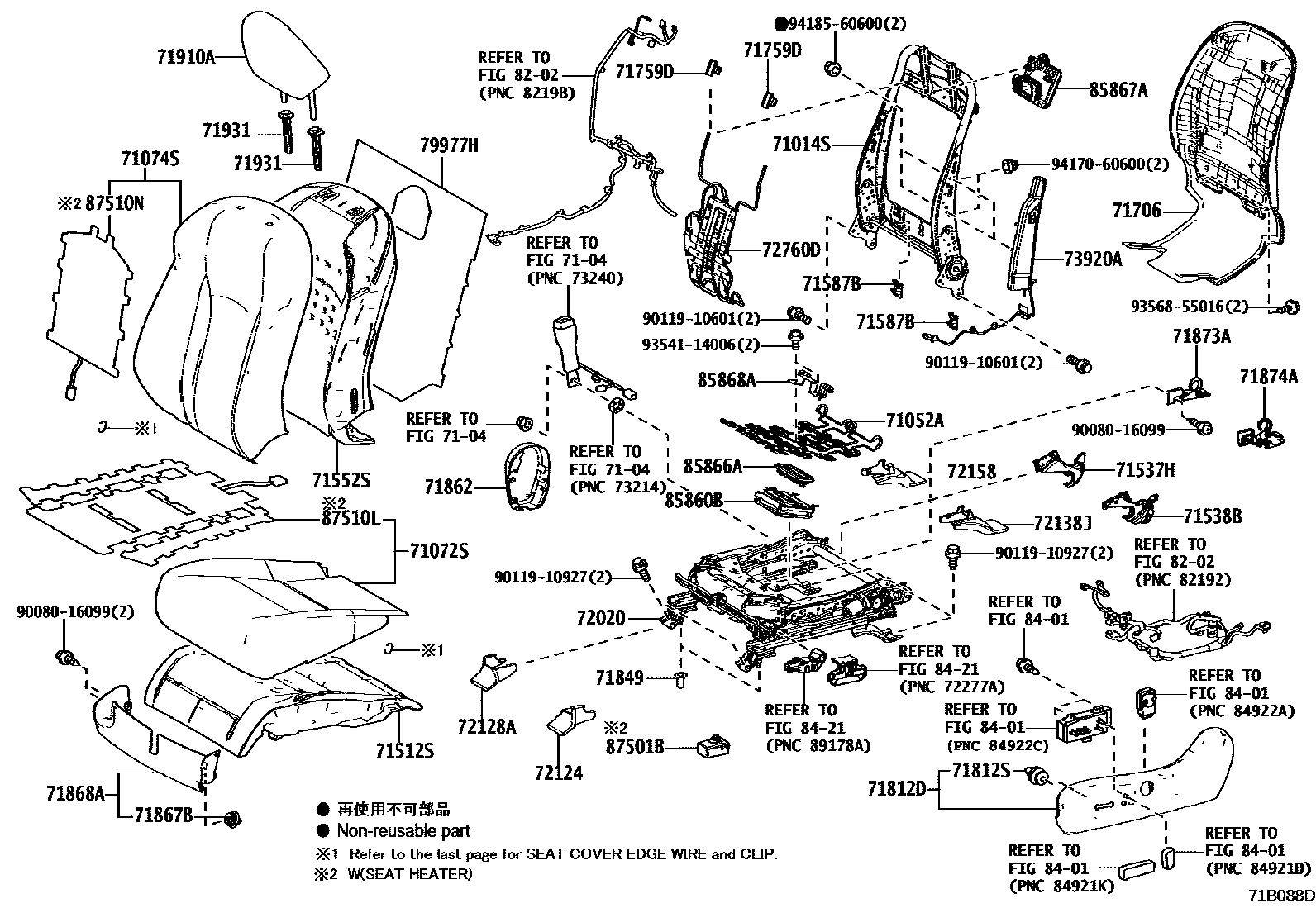

FRONT SEAT & SEAT TRACK
71014SFRAME SUB-ASSY, FRONT SEATBACK, LH
7104
71052ASPRING SUB-ASSY, FRONT SEAT CUSHION, LH
71072SCOVER, FRONT SEAT CUSHION, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWM,TRIM5#
IVORY,TRIM0#
WHITE ASH,TRIM1#
BLACK,TRIM2#
71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
IVORY,TRIM0#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWM,TRIM5#
IVORY,TRIM0#
WHITE ASH,TRIM1#
BLACK,TRIM2#
71512SPAD, FRONT SEAT CUSHION, LH (FOR SEPARATE TYPE)
71537HPROTECTOR, FRONT SEAT CUSHION EDGE, RH(FOR LH SEAT)
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM04
71538BPROTECTOR, FRONT SEAT CUSHION EDGE, LH(FOR LH SEAT)
BLACK,TRIM1#,2#,4#
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM04
71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)
71587PROTECTOR, FRONT SEATBACK EDGE
71587BPROTECTOR, FRONT SEATBACK EDGE
71706BOARD SUB-ASSY, FRONT SEATBACK, LH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
BLACK,TRIM0#,2#
BLACK,TRIM0#,1#,2#
71759DHOOK, FRONT SEATBACK, NO.2
71812DSHIELD, FRONT SEAT CUSHION, LH
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM1#,2#,4#
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
BLACK,TRIM04,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#
NOBLE BROWN,TRIM04
71812SCLIP, FRONT SEAT CUSHION SHIELD, LH
71849CAP, SEAT ADJUSTER COVER, LH
71862SHIELD, FRONT SEAT CUSHION, INNER LH
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,2#,4#,5#,6#
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
71867BCLIP(FOR FRONT SEAT CUSHION INNER SHIELD)
71868ASHIELD, FRONT SEAT CUSHION, INNER NO.1 LH
BLACK,TRIM04,1#,2#,4#,5#,6#,8#
BLACK,TRIM04,2#,4#,5#,6#
BLACK,TRIM0#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
NOBLE BROWN,TRIM04
NOBLE BROWN,TRIM0#,5#
71873SHIELD, FRONT SEAT CUSHION, LOWER RH
71873ASHIELD, FRONT SEAT CUSHION, LOWER
71874SHIELD, FRONT SEAT CUSHION, LOWER LH
71874ASHIELD, FRONT SEAT CUSHION, LOWER LH
71910AHEADREST ASSY, FRONT SEAT
IVORY,TRIM0#
BLACK,TRIM2#
NOBLE BROWN,TRIM4#
TOPAZ BROWN,TRIM5#
IVORY,TRIM0#
BLACK,TRIM1#,2#
BLACK,TRIM2#
71931SUPPORT, FRONT SEAT HEADREST
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM00,01,02
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM00,01,02
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
W(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,5#,6#
W(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,1#,2#
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM04
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),IVORY,TRIM04
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),IVORY,TRIM00,01,
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM00,01,
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT),BLACK,TRIM04,2#,4#,5#,6#
W/O(LOCK),REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM04,2#,4#,5#,6#
W/O(LOCK),"VERSION L"*(L)&REAR NO.1 SEAT-CAPTAIN SEAT&SEAT COVER MATERIAL-NATURALLEATHER(SEMIANILIN)&SEAT HEATER-WITH(FRONT SEAT & REAR NO.1 SEAT),BLACK,TRIM0#,1#,
72020ADJUSTER ASSY, FRONT SEAT, LH
72124COVER, SEAT TRACK BRACKET, OUTER FRONT LH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
72128ACOVER, SEAT TRACK BRACKET, INNER FRONT LH
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
72138JCOVER, FRONT SEAT TRACK, LH REAR OUTER
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
72158COVER, SEAT TRACK BRACKET, INNER LH
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM1#,2#,4#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM0#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
72760DADJUSTER ASSY, LUMBAR SUPPORT, LH
73920AAIRBAG ASSY, FRONT SEAT, LH
79977HFELT, FRONT SEATBACK, LH
8202
8401
8421
85860BBLOWER ASSY, SEAT CUSHION CLIMATE CONTROL, LH
85866DUCT, SEAT CUSHION CLIMATE CONTROL, RH
85866ADUCT, SEAT CUSHION CLIMATE CONTROL, LH
85867BLOWER, SEATBACK CLIMATE CONTROL, RH
85867ABLOWER, SEATBACK CLIMATE CONTROL, LH
85868BRACKET, SEAT CUSHION CLIMATE CONTROL, RH
85868ABRACKET, SEAT CUSHION CLIMATE CONTROL, LH
87501BCONTROL SUB-ASSY, SEAT HEATER, LH
87510LHEATER ASSY, FRONT SEAT CUSHION, LH
87510NHEATER ASSY, FRONT SEATBACK, LH
9008016099
9011910601
9011910927
9354114006
9356855016
9417060600
9418560600
53 parts on this diagram · 17 diagrams in section
