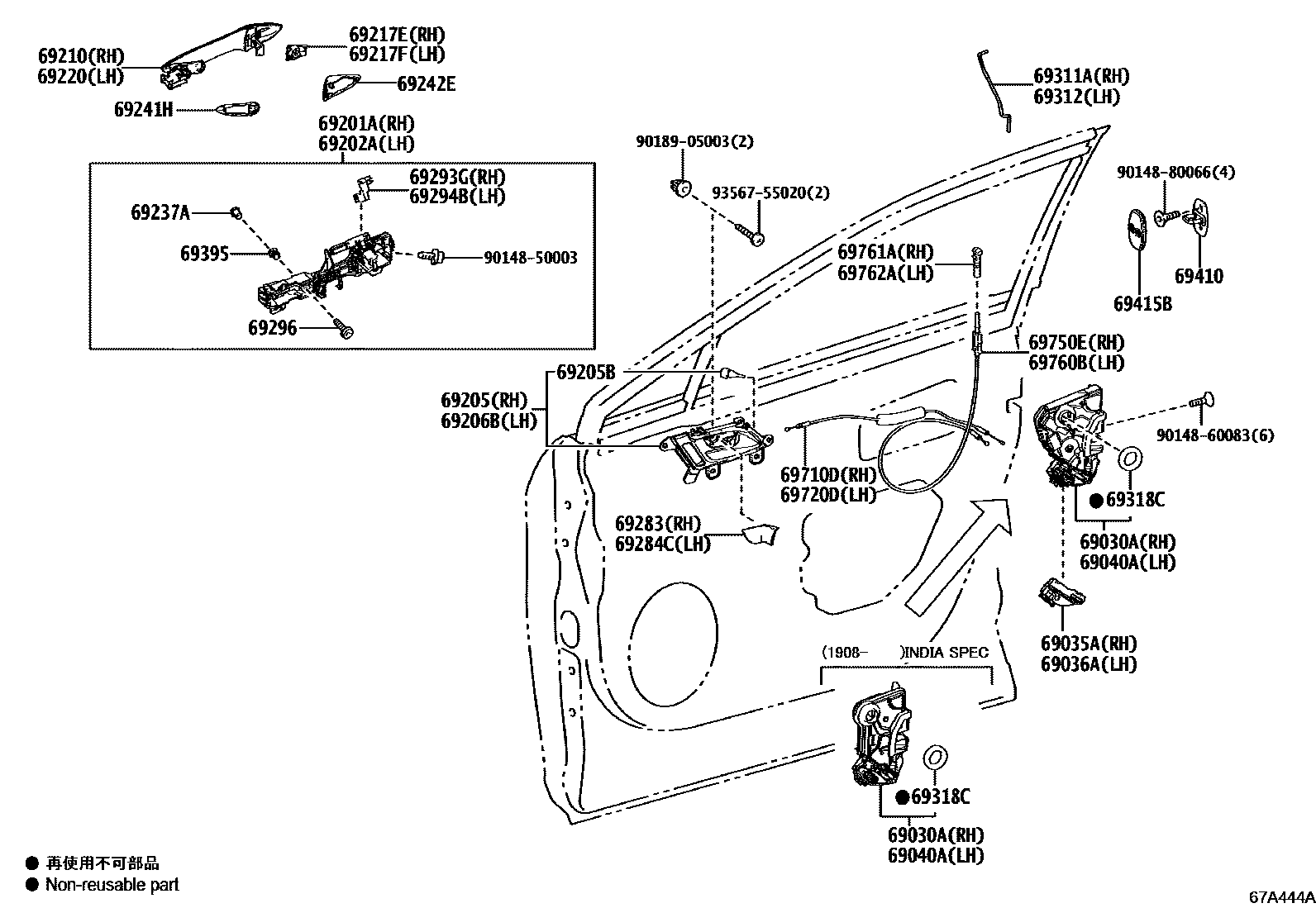

FRONT DOOR LOCK & HANDLE

69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH

main69030-48130iGGL26,GYL26..LHD201908

main69030-30A70supersedes 69030-48110iGYL26..RHD201908

INDIA SPEC

69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH

main69035-30010iGGL26,GYL26201712-201908

69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH

main69036-30010iGGL26,GYL26201712-201908

69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH

main69040-48110iGGL26,GYL26..LHD201712-201908

main69040-48130supersedes 69040-48120iGYL26..RHD201908

INDIA SPEC

69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH

main69201-78010iGGL26,GYL26201712-201908

main69201-48030iGYL26..RHD201908

ENGLAND SPEC

69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH

main69202-78010supersedes 69202-48020iGYL26201803-201908

69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH

main67605-48030-E0iGGL26,GYL26..LHD201712-201905

NOBLE BROWN,TRIM0#,5#

main67605-48031-C0supersedes 67605-48031-C0iGGL26202007

BLACK,TRIM0#,2#,4#,5#,6#

main67605-48031-E0iGGL26,GYL26..LHD201906-201908

NOBLE BROWN,TRIM0#,5#

main67605-48040-C0iGYL26..RHD201803-201905

BLACK,TRIM2#,4#

main67605-48040-E0iGYL26..RHD201803-201905

NOBLE BROWN,TRIM0#,5#,6#

main67605-48041-C0supersedes 67605-48031-C0iGYL26..RHD201906-201908

"VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4#

main67605-48041-E0iGGL26,GYL26..LHD201906-201908

"VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#

69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)

main90541-04014×2iGGL26,GYL26201908

69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH

main67606-48030-E0iGYL26..RHD201803-201905

NOBLE BROWN,TRIM0#,5#

main67606-48031-C0supersedes 67606-48031-C0iGGL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#,8#

main67606-48031-E0iGYL26..RHD201906-201908

NOBLE BROWN,TRIM0#,5#

main67606-48040-C0iGGL26,GYL26..LHD201712-201905

BLACK,TRIM2#,4#

main67606-48040-E0iGGL26,GYL26..LHD201712-201905

NOBLE BROWN,TRIM0#,5#,6#

main67606-48041-C0supersedes 67606-48031-C0iGYL26..RHD201906-201908

"VERSION L"*(L)&SPEAKER-12SPEAKER,BLACK,TRIM2#,4#

main67606-48041-E0iGYL26..RHD201906-201908

"VERSION L"*(L)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5#,6#

69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH

main69210-48110-A1supersedes 69210-48140-A1iGYL26201712-201908

SONIC QUARTZ,085

main69210-48110-B0supersedes 69210-48140-B0iGYL26201712-201908

MERCURY GRAY MC.,1H9

main69210-48110-B1supersedes 69210-48140-B1iGYL26201712-201908

PLATINUM SILVER ME.,1J4

main69210-48110-B2supersedes 69210-48140-B2iGYL26201908

SERBIA SPEC,SONIC TITANIUM,1J7

main69210-48110-B5supersedes 69210-48140-B3iGYL26202107

AZERBAIJAN SPEC,SONIC CHROME,1L1

main69210-48110-B6supersedes 69210-48140-B4iGYL26202107

ARMENIA SPEC,SONIC IRIDIUM,1L2

main69210-48110-C0supersedes 69210-48140-C0iGYL26201712-201908

BLACK,212

main69210-48110-C1supersedes 69210-48140-C1iGYL26201712-201908

GRAPHITE BLACK GF.,223

main69210-48110-D0supersedes 69210-48140-D0iGYL26201908

RED MC.CS.,3R1

main69210-48110-E0supersedes 69210-48140-E0iGYL26201712-201908

SLEEK ECRU ME.,4U7

main69210-48110-E1supersedes 69210-48140-E1iGYL26201712-201908

AMBER CS.,4X2

main69210-48110-E4supersedes 69210-48140-E4iGYL26201908

BELARUS SPEC,ICE ECRU M.M.,4X8

main69210-48110-G0supersedes 69210-48140-G0iGYL26201908

GEORGIA SPEC,TERRANE KHAKI M.M.,6X4

main69210-48110-J0supersedes 69210-48140-J1iGYL26201712-201908

DEEP BLUE MC.,8X5

69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH

main69217-78010iGGL26,GYL26..LHD201908

69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH

main69218-78010iGYL26..RHD201803-201908

69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH

main69220-48070-A1supersedes 69220-48080-A1iGYL26201908

BELARUS SPEC,SONIC QUARTZ,085

main69220-48070-B0supersedes 69220-48080-B0iGYL26201712-201908

MERCURY GRAY MC.,1H9

main69220-48070-B1supersedes 69220-48080-B1iGYL26201712-201908

PLATINUM SILVER ME.,1J4

main69220-48070-B2supersedes 69220-48080-B2iGYL26201908

SERBIA SPEC,SONIC TITANIUM,1J7

main69220-48070-B5supersedes 69220-48080-B3iGYL26202107

AZERBAIJAN SPEC,SONIC CHROME,1L1

main69220-48070-B6supersedes 69220-48080-B4iGYL26202107

ARMENIA SPEC,SONIC IRIDIUM,1L2

main69220-48070-C0supersedes 69220-48080-C0iGYL26201908

UKRAINE SPEC,BLACK,212

main69220-48070-C1supersedes 69220-48080-C1iGYL26201908

ARMENIA SPEC,GRAPHITE BLACK GF.,223

main69220-48070-D0supersedes 69220-48080-D0iGYL26201908

RED MC.CS.,3R1

main69220-48070-E0supersedes 69220-48080-E0iGYL26201712-201908

SLEEK ECRU ME.,4U7

main69220-48070-E1supersedes 69220-48080-E1iGYL26201908-202107

GEORGIA SPEC,AMBER CS.,4X2

main69220-48070-E4supersedes 69220-48080-E4iGYL26201908

BELARUS SPEC,ICE ECRU M.M.,4X8

main69220-48070-G0supersedes 69220-48080-G0iGYL26201908

GEORGIA SPEC,TERRANE KHAKI M.M.,6X4

main69220-48070-J0supersedes 69220-48080-J1iGYL26201712-201908

DEEP BLUE MC.,8X5

69237ANUT, FRONT DOOR HANDLE

main69237-30010×2iGGL26,GYL26201712-201908

69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT

main69241-78010iGGL26,GYL26201712-201908

RH

main69242-78010iGGL26,GYL26201712-201908

LH

69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR

main69241-78020iGGL26,GYL26201712-201908

RH

main69242-78020iGGL26,GYL26201712-201908

LH

69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH

main69283-48010-C0iGYL26201908-202007

BLACK,TRIM0#,1#,2#,4#,5#,6#,8#

main69283-48010-E0iGGL26,GYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH

main69284-48010-C0iGYL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#,8#

main69284-48010-E0iGGL26,GYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH

main69293-12030iGGL26,GYL26201712-201908

69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH

main69293-12040iGGL26,GYL26201908

69296SCREW, DOOR INSIDE HANDLE

main69296-30010×2iGGL26,GYL26201908

69311AROD, FRONT DOOR LOCK OPEN, RH

main69311-48080iGGL26,GYL26201908

69312ROD, FRONT DOOR LOCK OPEN, LH

main69312-48080iGGL26,GYL26201712-201908

69318CSEAL, DOOR LOCK WIRING HARNESS

main69318-51010×2iGGL26,GYL26201908

69395BUSH(FOR DOOR OUTSIDE HANDLE)

main69239-30010×2iGGL26,GYL26201712-201908

69410PLATE ASSY, FRONT DOOR LOCK STRIKER

main69410-33030×2iGGL26,GYL26201712-201908

69415BCOVER, DOOR LOCK STRIKER, FRONT

main69415-60020×2iGGL26,GYL26201712-201908

69710DCABLE, FRONT DOOR LOCK REMOTE CONTROL, RH(FOR OPEN LEVER)

main69710-48080iGGL26,GYL26201908

69720DCABLE, FRONT DOOR LOCK REMOTE CONTROL, LH(FOR OPEN LEVER)

main69710-48080iGGL26,GYL26201908

69750ECABLE, FRONT DOOR INSIDE LOCKING, RH(FOR LOCK / UNLOCK KNOB)

main69750-48091iGGL26,GYL26201908

69760BCABLE, FRONT DOOR INSIDE LOCKING, LH(FOR LOCK / UNLOCK KNOB)

main69750-48091iGGL26,GYL26201908

69761ABEZEL, DOOR LOCK CONTROL KNOB, RH

main69761-48030iGGL26,GYL26201712-201908

69762ABEZEL, DOOR LOCK CONTROL KNOB, LH

main69761-48030iGGL26,GYL26201908

9014850003

main90148-50003

9014860083

main90148-60083

9014880066

main90148-80066

9018905003

main90189-05003

9356755020

main93567-55020

38 parts on this diagram · 1 diagram in section
