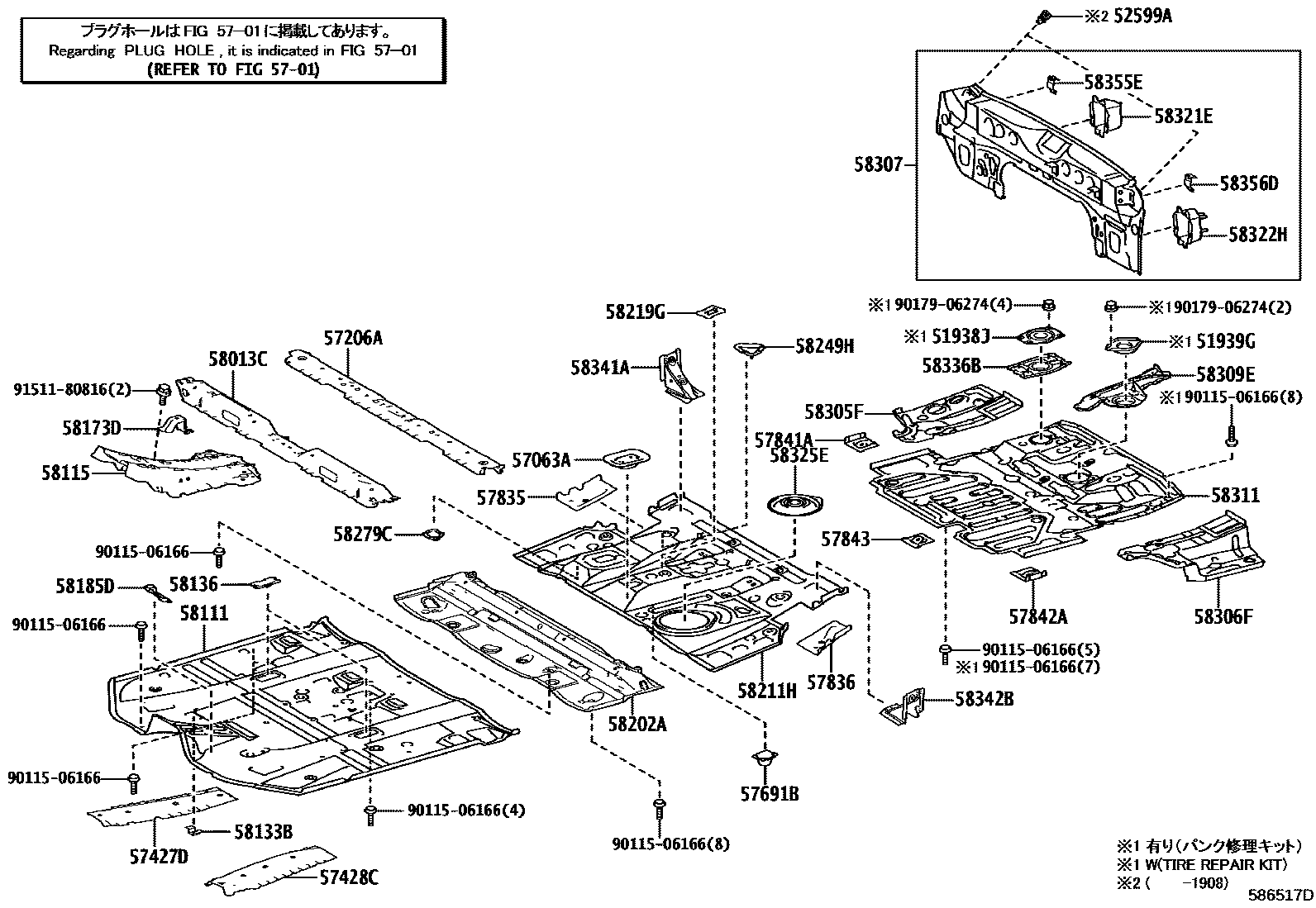

FLOOR PAN & LOWER BACK PANEL
51938JBRACKET, SPARE WHEEL CARRIER MOUNTING
51939GPLUG, SPARE WHEEL CARRIER
52599ASTOPPER, REAR BUMPER, UPPER
5701
57063ABRACKET SUB-ASSY, FUEL TANK MOUNTING, REAR RH
57206AMEMBER SUB-ASSY, FRONT FLOOR CROSS, NO.2
57427DREINFORCEMENT, FRONT FLOOR, NO.3 RH
57428CREINFORCEMENT, FRONT FLOOR, NO.3 LH
57691BBRACKET, FUEL TANK MOUNTING, FRONT CENTER
57835REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.1
57836REINFORCEMENT, REAR NO.1 SEAT LEG, REAR NO.2
57841AREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT RH
57842AREINFORCEMENT, REAR NO.2 SEAT LEG, FRONT LH
57843REINFORCEMENT, REAR NO.1 SEAT LEG, FRONT NO.5
58013CSUPPORT SUB-ASSY, SHIFT & SELECT LEVER
58111PAN, FRONT FLOOR
58115REINFORCEMENT, FRONT FLOOR PANEL, FRONT
58133BBRACKET, FRONT FLOOR HEAT INSULATOR, NO.3
58136COVER, FRONT FLOOR HOLE
58173DBRACKET, COMPUTER MOUNTING, NO.4
58185DPLATE, ACCELERATOR PEDAL MOUNTING
58219GPATCH, SEAT FLOOR
58249HBRACKET, CENTER FLOOR BOARD SUPPORT
58279CPROTECTOR, FUEL TANK, UPPER NO.2
58305FPANEL SUB-ASSY, REAR FLOOR SIDE, RH
58306FPANEL SUB-ASSY, REAR FLOOR SIDE, LH
58307PANEL SUB-ASSY, BODY LOWER BACK
58309EPLATE SUB-ASSY, REAR FLOOR
58311PAN, REAR FLOOR
58321EPLATE, REAR BUMPER ARM SUPPORT, RH
58322HPLATE, REAR BUMPER ARM SUPPORT, LH
58325ECOVER, REAR FLOOR SERVICE HOLE
58336BREINFORCEMENT, REAR FLOOR PAN
58341ABRACKET, REAR ABSORBER MOUNTING, RH
58342BBRACKET, REAR ABSORBER MOUNTING, LH
58355EBRACKET, REAR BUMPER ARM, RH
58356DBRACKET, REAR BUMPER ARM, LH
9011506166
main90115-06166
9017906274
main90179-06274
9151180816
main91511-80816
42 parts on this diagram · 5 diagrams in section
