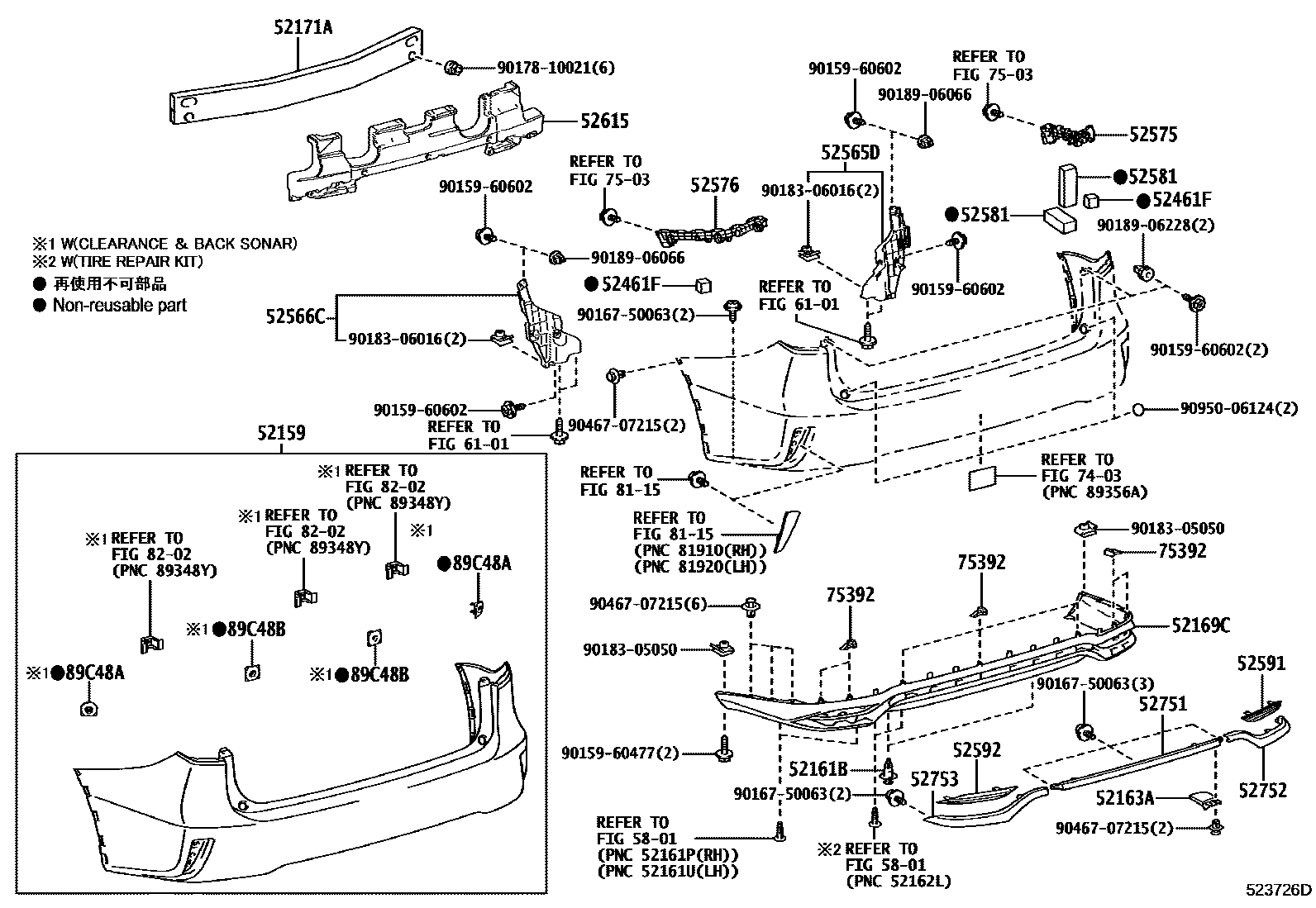

REAR BUMPER & BUMPER STAY
52159COVER, REAR BUMPER
PAINT REQ.,W(*PBD)
PAINT REQ.
52161BPIECE, REAR BUMPER
52163APLATE, REAR BUMPER, RH
52169CCOVER, REAR BUMPER, LOWER
NO PAINT REQ.
52171AREINFORCEMENT, REAR BUMPER, NO.1
52461FPAD, REAR BUMPER
52565DRETAINER, REAR BUMPER, LOWER RH
52566CRETAINER, REAR BUMPER, LOWER LH
52575RETAINER, REAR BUMPER SIDE, RH
52576RETAINER, REAR BUMPER SIDE, LH
52581PROTECTOR, REAR BUMPER, RH
52591SEAL, REAR BUMPER SIDE, RH
52592SEAL, REAR BUMPER SIDE, LH
52615ABSORBER, REAR BUMPER ENERGY
52751MOULDING, REAR BUMPER
PLATED,UKRAINE SPEC
PLATED,GEORGIA SPEC
PLATED,ARMENIA SPEC
PLATED,AZERBAIJAN SPEC
PLATED,ADRIA(SLOVENIA) SPEC
PLATED,BELARUS SPEC
PLATED,KAZAKHSTAN SPEC
PLATED,SERBIA SPEC
PLATED
PLATED
52752MOULDING, REAR BUMPER SIDE, RH
PLATED,KAZAKHSTAN SPEC
PLATED
PLATED,UKRAINE SPEC
PLATED,GEORGIA SPEC
PLATED,ARMENIA SPEC
PLATED,AZERBAIJAN SPEC
PLATED,ADRIA(SLOVENIA) SPEC
PLATED,BELARUS SPEC
PLATED,SERBIA SPEC
PLATED
52753MOULDING, REAR BUMPER SIDE, LH
PLATED
PLATED,UKRAINE SPEC
PLATED,GEORGIA SPEC
PLATED,ARMENIA SPEC
PLATED,AZERBAIJAN SPEC
PLATED,ADRIA(SLOVENIA) SPEC
PLATED,BELARUS SPEC
PLATED,KAZAKHSTAN SPEC
PLATED,SERBIA SPEC
PLATED
5801
6101
7403
7503
75392RETAINER, OUTSIDE MOULDING
8115
8202
89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER
89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER
9015960477
9015960602
9016750063
9017810021
9018305050
9018306016
9018906066
9018906228
9046707215
9095006124
36 parts on this diagram · 2 diagrams in section
