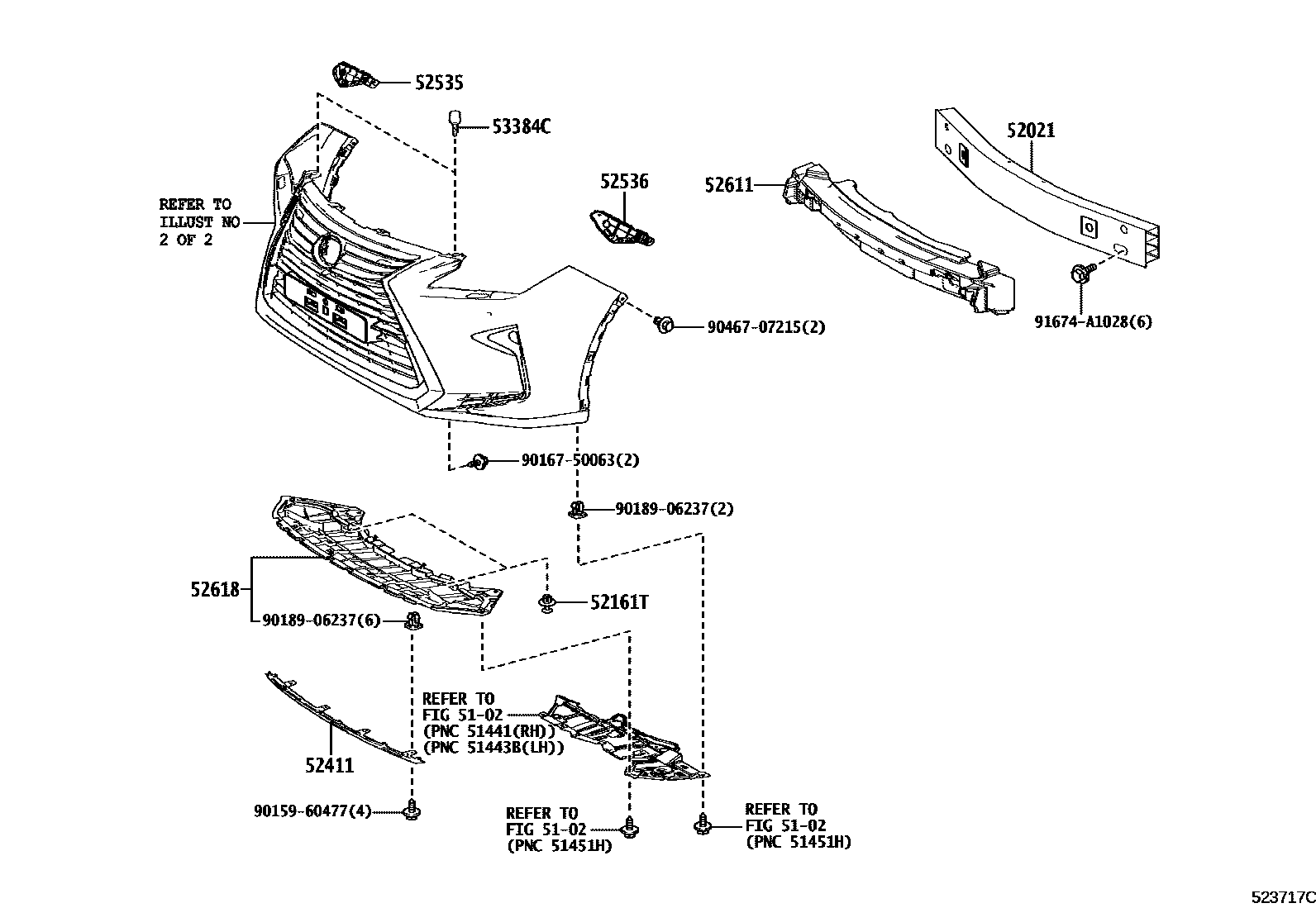

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1 0004 1

5102

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-48051iGGL26,GYL26201712-201908

52161TPIECE, FRONT BUMPER

main90467-07215iGGL26,GYL26201712-201908

52411GUARD, FRONT BUMPER

main52411-48030iGGL26,GYL26201712-201908

main52411-48060iGGL26,GYL26201908

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-48050iGGL26,GYL26201712-201908

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-48040iGGL26,GYL26201712-201908

52611ABSORBER, FRONT BUMPER ENERGY

main52611-48181iGGL26,GYL26201712-201908

main52611-48230iGGL26,GYL26201908

52618ABSORBER, FRONT BUMPER, LOWER

main52618-48020iGGL26,GYL26201712-201807

sub52618-48021

main52618-48021iGGL26,GYL26201808-201908

53384CCUSHION, HOOD, CENTER

main53384-22070iGGL26,GYL26201712-201908

9015960477

main90159-60477

9016750063

main90167-50063

9018906237

main90189-06237

9046707215

main90467-07215

91674A1028

main91674-A1028

14 parts on this diagram · 4 diagrams in section
