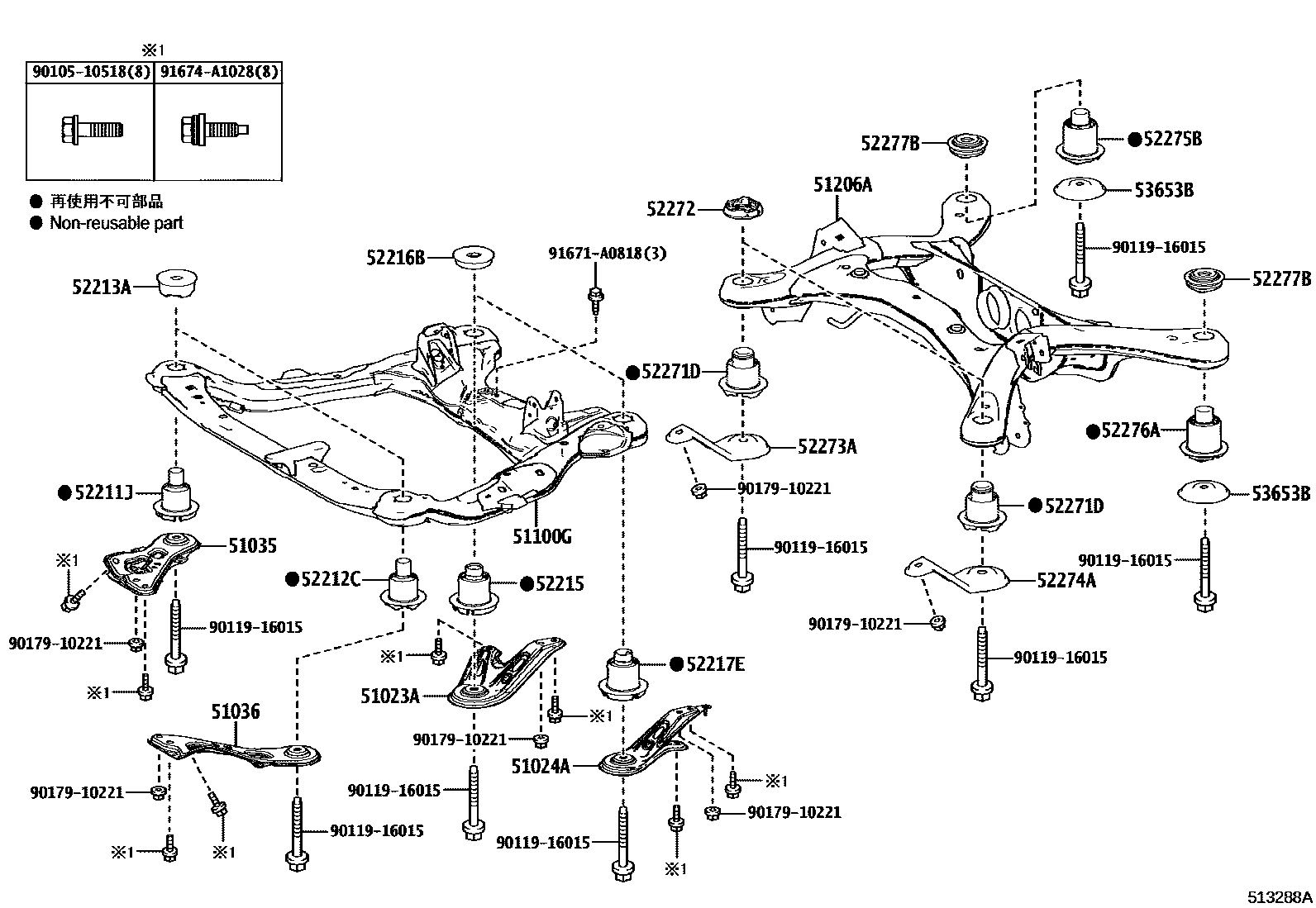

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSS MEMBER 0002 1SUSPENSION CROSS MEMBER 0003 1SUSPENSION CROSS MEMBER 0004 1SUSPENSION CROSS MEMBER 0005 1UNDER COVER 0006 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-48030iGGL26,GYL26201712-201908

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-48040iGGL26,GYL26201712-201908

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48040iGGL26,GYL26201712-201908

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48040iGGL26,GYL26201712-201908

51100GFRAME ASSY, FRONT

main51100-48091iGGL26,GYL26201712-202005

sub51100-48092

main51100-48092iGGL26,GYL26202006

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48082iGGL26201712-201908

main51206-48091iGYL26201803-201908

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-48010iGGL26,GYL26201712-201908

52212CCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52211-48010iGYL26201908

main52212-48010iGGL26,GYL26201712-201902

sub52212-48011

main52212-48011iGGL26,GYL26201903-201908

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-48010iGGL26,GYL26201712-201908

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-48010iGGL26,GYL26201712-201908

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-48010iGGL26,GYL26201712-201908

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-48030iGGL26,GYL26201712-201908

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-48030iGGL26,GYL26201712-201908

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-48020iGGL26,GYL26201712-201908

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-48010iGGL26,GYL26201712-201908

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-48010iGYL26201803-201908

main52274-48010iGGL26201712-201908

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-48021iGGL26,GYL26201712-201908

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-48011iGGL26,GYL26201712-201908

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-48020iGGL26,GYL26201712-201908

53653BBRACE, REAR SUSPENSION, LOWER

main53653-48010iGGL26,GYL26201712-201908

9010510518

main90105-10518

9011916015

main90119-16015

9017910221

main90179-10221

91671A0818

main91671-A0818

91674A1028

main91674-A1028

25 parts on this diagram · 6 diagrams in section
