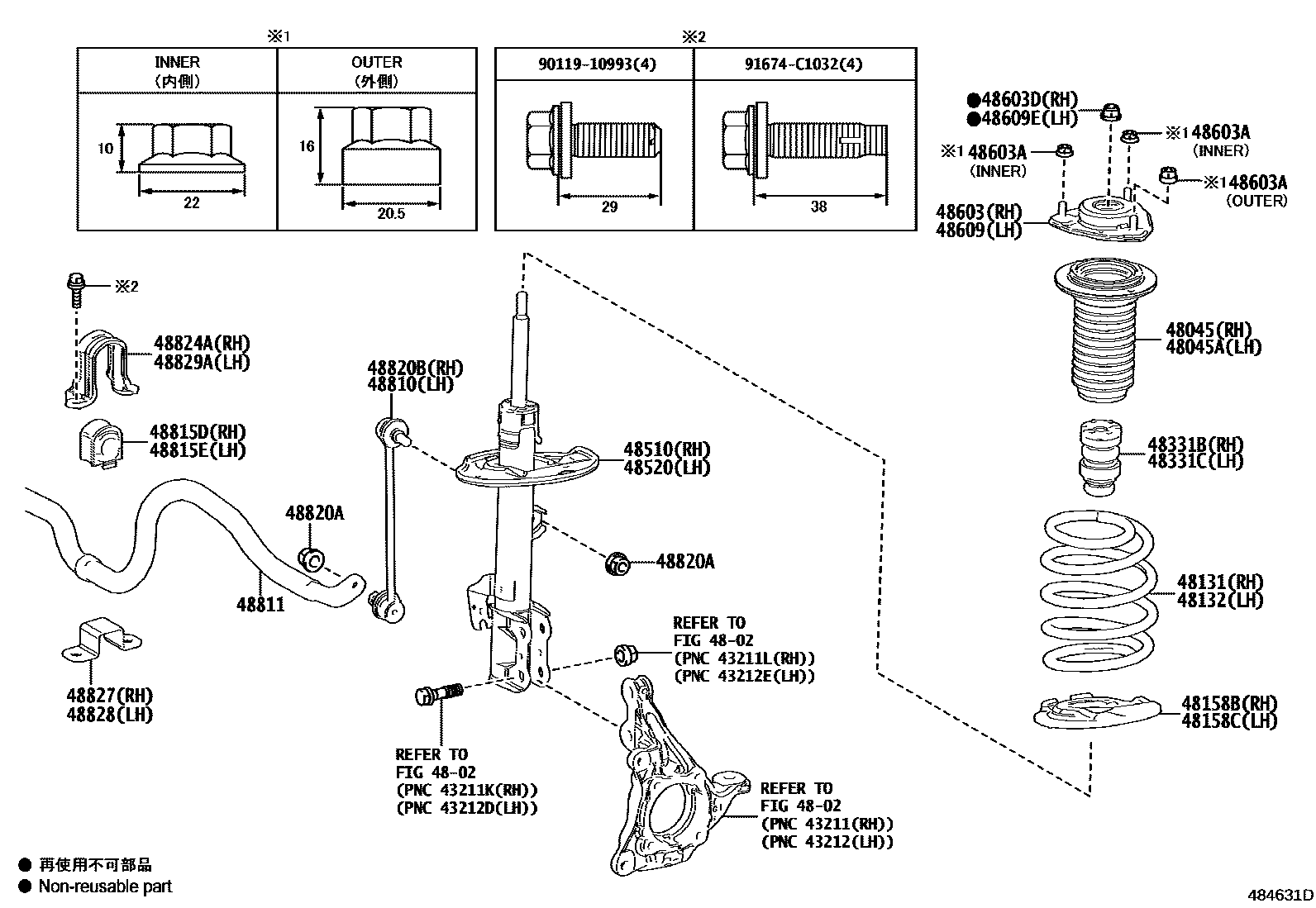

FRONT SPRING & SHOCK ABSORBER

0001 1 0002 1W(AVS)

4802

48045SEAT SUB-ASSY, FRONT SPRING RH, W/INSULATOR

main48045-48010iGGL26,GYL26201712-201908

48045ASEAT SUB-ASSY, FRONT SPRING LH, W/INSULATOR

main48045-48010iGGL26,GYL26201712-201908

48131SPRING, FRONT COIL, RH

main48131-48800iGGL26201712-201809

sub48131-48801

main48131-48801iGGL26201810-201902

sub48131-48802

main48131-48802iGGL26201903-201908

main48131-48810iGYL26201803-201809

sub48131-48811

main48131-48811iGYL26201810-201902

sub48131-48812

main48131-48812iGYL26201903-201908

48132SPRING, FRONT COIL, LH

main48132-48140iGGL26201712-201809

sub48132-48141

main48132-48141iGGL26201810-201902

sub48132-48142

main48132-48142iGGL26201903-201908

main48132-48150iGYL26201803-201809

sub48132-48151

main48132-48151iGYL26201810-201902

sub48132-48152

main48132-48152iGYL26201903-201908

48158BINSULATOR, FRONT COIL SPRING, LOWER RH

main48158-48080iGGL26,GYL26201712-201908

48158CINSULATOR, FRONT COIL SPRING, LOWER LH

main48158-48090iGGL26,GYL26201712-201908

48331BBUMPER, FRONT SPRING, RH

main48331-48071iGGL26,GYL26201712-201908

48331CBUMPER, FRONT SPRING, LH

main48331-48071iGGL26,GYL26201712-201908

48510ABSORBER ASSY, SHOCK, FRONT RH

main48510-80784iGGL26,GYL26201712-201908

MARK 48510-48410

main48510-80A92iGGL26,GYL26201908

MARK 48510-48590

48520ABSORBER ASSY, SHOCK, FRONT LH

main48520-80460iGGL26,GYL26201712-201908

MARK 48520-48410

main48520-80652iGGL26,GYL26201908

MARK 48520-48590

48603SUPPORT SUB-ASSY, FRONT SUSPENSION, RH

main48609-48080iGGL26,GYL26201712-201908

48603ANUT(FOR FRONT SUSPENSION SUPPORT)

main90178-10005iGGL26,GYL26201712-201908

INNER

main90178-10015iGGL26,GYL26201712-201908

OUTER

48603DNUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER RH)

main90179-14015iGGL26,GYL26201712-201908

48609SUPPORT SUB-ASSY, FRONT SUSPENSION, LH

main48609-48080iGGL26,GYL26201712-201908

48609ENUT(FOR FRONT SUPPORT TO FRONT SHOCK ABSORBER LH)

main90179-14015iGGL26,GYL26201712-201908

48810LINK ASSY, FRONT STABILIZER, LH

main48820-28050iGGL26,GYL26201712-201908

48811BAR, STABILIZER, FRONT

main48811-48190iGGL26,GYL26201712-201908

48815DBUSH, FRONT STABILIZER BAR, RH

main48815-48110iGGL26,GYL26201712-201908

48815EBUSH, FRONT STABILIZER BAR, LH

main48815-48110iGGL26,GYL26201712-201908

48820ANUT(FOR FRONT STABILIZER LINK)

main90179-12151iGGL26,GYL26201712-201908

48820BLINK ASSY, FRONT STABILIZER, RH

main48820-28050iGGL26,GYL26201712-201908

48824ABRACKET, FRONT STABILIZER, NO.1 RH

main48824-48030iGGL26,GYL26201712-201908

48827BRACKET, FRONT STABILIZER, NO.2 RH

main48827-48040iGGL26,GYL26201712-201908

48828BRACKET, FRONT STABILIZER, NO.2 LH

main48827-48040iGGL26,GYL26201712-201908

48829ABRACKET, FRONT STABILIZER, NO.1 LH

main48824-48030iGGL26,GYL26201712-201908

9011910993

main90119-10993

91674C1032

main91674-C1032

28 parts on this diagram · 2 diagrams in section
