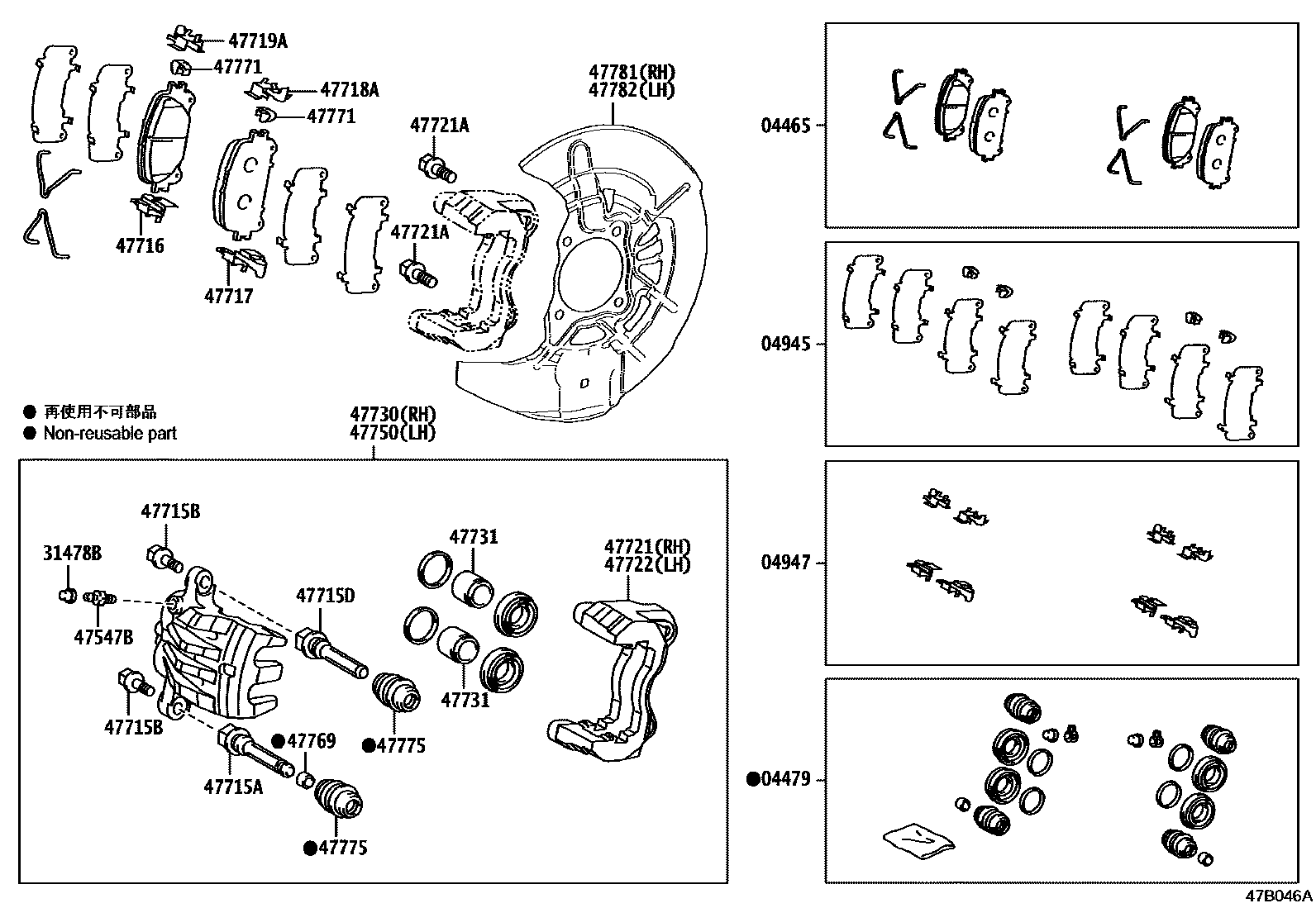

FRONT DISC BRAKE CALIPER & DUST COVER

0001 1PAD MARK : AK NS380H 0002 1PAD MARK : ADVICS PV565H

04465PAD KIT, DISC BRAKE, FRONT

main04465-48210iGGL26¥10,700201712-201908

MARK ADVICS PV565H

main04465-48220iGYL26201803-202209

MARK AK NS380H

main04465-48220iGYL26201908-202209

MARK AK NS380H,ADRIA(SLOVENIA) SPEC

main04465-48220iGYL26201908-202209

MARK AK NS380H,SERBIA SPEC

main04465-78010iGGL26¥10,700201908-202209

MARK ADVICS VC084H,INDIA SPEC

main04465-78010iGGL26¥10,700201908-202209

MARK ADVICS VC084H

04479CYLINDER KIT, DISC BRAKE, FRONT

main04478-48150iGYL26..RHD¥2,700201908

INDIA SPEC

main04478-48150iGGL26¥2,700201712-201908

main04478-48190iGYL26201908

SERBIA SPEC

main04478-48190iGGL26201908

ADRIA(SLOVENIA) SPEC

main04478-48190iGYL26201803-201908

04945SHIM KIT, ANTI SQUEAL, FRONT

main04945-48150iGYL26..RHD¥1,250201908

INDIA SPEC

main04945-48150iGGL26¥1,250201712-201908

main04945-48160iGYL26¥1,960201803-201908

main04945-48160iGYL26¥1,960201908

ADRIA(SLOVENIA) SPEC

main04945-48160iGYL26¥1,960201908

SERBIA SPEC

04947FITTING KIT, DISC BRAKE, FRONT

main04947-48080iGGL26,GYL26¥1,670201712-201908

31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)

main31478-30010iGGL26,GYL26¥160201712-201908

47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)

main47547-12130iGGL26,GYL26¥160201712-201908

47715APIN, FRONT DISC BRAKE CYLINDER SLIDE

main47714-48150iGGL26,GYL26¥230201712-201908

47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)

main90015-AA602iGGL26,GYL26¥80201712-201908

47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2

main47715-48150iGGL26,GYL26¥230201712-201908

47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)

main47716-48150iGGL26,GYL26¥220201712-202002

47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)

main47717-48150iGGL26,GYL26¥220201712-202002

47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)

main47718-48150iGGL26,GYL26¥220201712-202002

47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)

main47719-48150iGGL26,GYL26¥220201712-202002

47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH

main47721-48170iGGL26¥6,700201908

INDIA SPEC

main47721-48170iGGL26¥6,700201712-201908

main47721-48180iGGL26201908

ADRIA(SLOVENIA) SPEC

main47721-48180iGGL26201908

SERBIA SPEC

main47721-48180iGYL26201803-201908

47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)

main90105-14196iGGL26,GYL26¥190201712-201908

*14-1.5PX29.5-23

47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH

main47722-48090iGYL26..RHD¥6,700201908

INDIA SPEC

main47722-48090iGGL26¥6,700201712-201908

main47722-48100iGYL26201908

SERBIA SPEC

main47722-48100iGGL26201908

ADRIA(SLOVENIA) SPEC

main47722-48100iGYL26201803-201908

47730CYLINDER ASSY, FRONT DISC BRAKE, RH

main47730-48170iGGL26¥37,400201908

INDIA SPEC

main47730-48170iGGL26¥37,400201712-201908

main47730-48180iGYL26201908

SERBIA SPEC

main47730-48180iGYL26201803-201908

main47730-48180iGYL26201908

ADRIA(SLOVENIA) SPEC

47731PISTON, FRONT DISC BRAKE

main47731-48150iGGL26,GYL26¥1,060201712-201908

47750CYLINDER ASSY, DISC BRAKE, LH

main47750-48090iGGL26¥37,400201908

INDIA SPEC

main47750-48090iGGL26¥37,400201712-201908

main47750-48100iGGL26201908

SERBIA SPEC

main47750-48100iGGL26201908

ADRIA(SLOVENIA) SPEC

main47750-48100iGYL26201803-201908

47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)

main47769-48150iGGL26,GYL26¥200201712-201908

47771PLATE, PAD WEAR INDICATOR, NO.1

main47771-48150iGGL26,GYL26¥200201712-201908

47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)

main47775-48150iGGL26,GYL26¥250201712-201908

47781COVER, DISC BRAKE DUST, FRONT RH

main47781-48050iGGL26,GYL26¥1,510201712-201908

47782COVER, DISC BRAKE DUST, FRONT LH

main47782-48050iGGL26,GYL26¥1,510201712-201908

24 parts on this diagram · 2 diagrams in section
