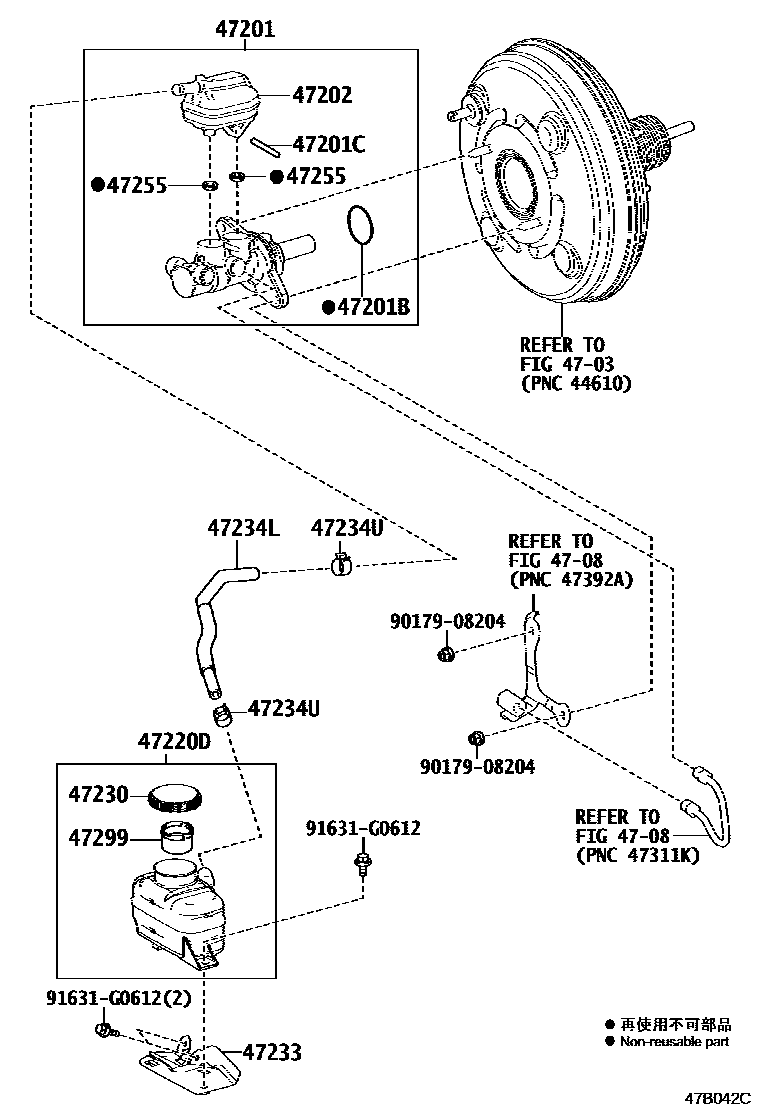

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48202iGGL26201712-201908

main47201-48210iGYL26..LHD201803-201908

main47201-48230iGYL26..RHD201803-201908

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iGGL26201712-201908

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iGGL26201712-201908

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iGGL26201712-201908

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-48260iGGL26201712-201908

main47220-48271iGYL26201803-201908

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11010iGYL26201803-201908

main47230-47090iGGL26201712-201908

47233BRACKET, RESERVOIR

main47233-48170iGGL26201712-201908

main47233-48190iGYL26201803-201908

47234LHOSE, RESERVOIR, NO.1

main47234-48140iGYL26..LHD201803-201908

main47234-48250iGGL26201712-201908

main47234-48280iGYL26..RHD201803-201908

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iGGL26201712-201908

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGYL26201803-201908

main90029-48001iGGL26201712-201908

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iGGL26201712-201908

main47299-30190iGYL26201803-201908

9017908204

main90179-08204

91631G0612

main91631-G0612

15 parts on this diagram · 3 diagrams in section
