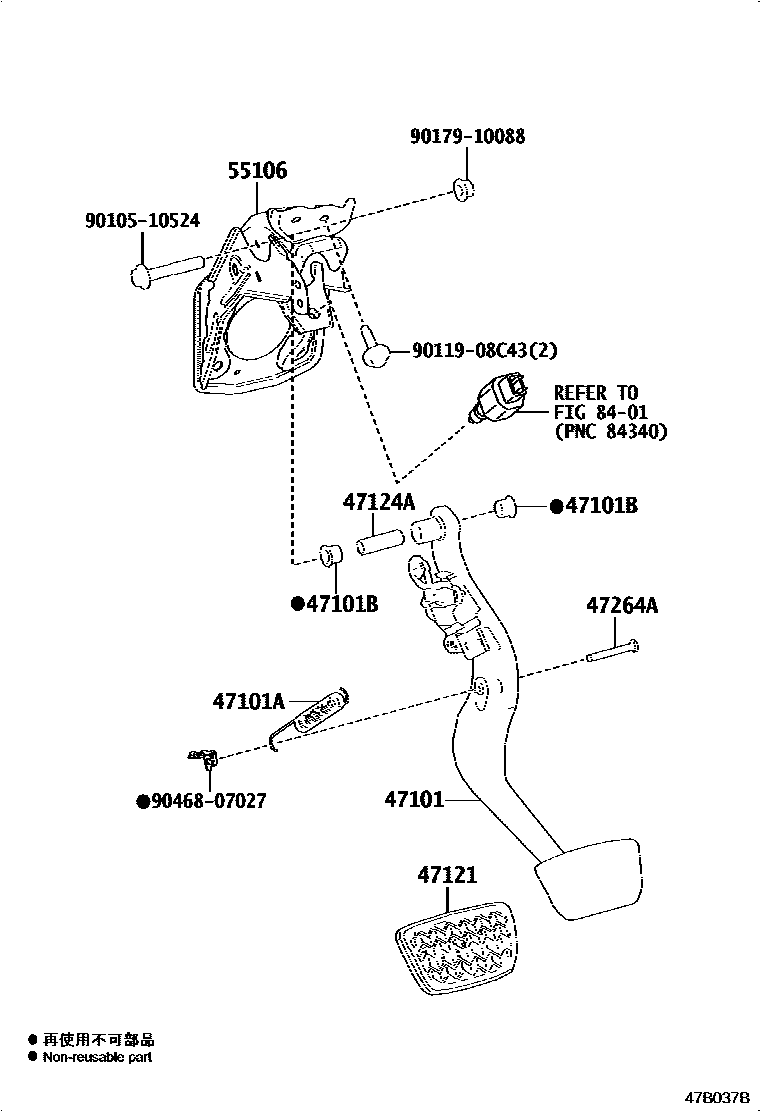

BRAKE PEDAL & BRACKET

0001 1 0002 1 0003 1

47101PEDAL SUB-ASSY, BRAKE

main47101-48120iGYL26..RHD201803-201908

main47101-48200iGYL26..LHD201803-201908

main47106-48100iGGL26201712-201908

47101ASPRING(FOR BRAKE PEDAL RETURN)

main90507-15004iGGL26201712-201908

main90507-15008iGYL26201803-201908

47101BBUSH(FOR BRAKE PEDAL)

main90386-13015iGGL26,GYL26201712-201908

47121PAD, BRAKE PEDAL

main47121-48010iGGL26,GYL26201712-201908

47124ACOLLAR(FOR BRAKE PEDAL SHAFT)

main90387-10003iGGL26201712-201908

main90387-10105iGYL26201803-201908

47264APIN(FOR PUSH ROD)

main47148-48010iGGL26201712-201908

main90249-08051iGYL26201803-201908

55106SUPPORT SUB-ASSY, BRAKE PEDAL

main55106-48230iGGL26201712-201908

main55106-48240iGYL26..RHD201803-201908

main55106-48250iGYL26..LHD201803-201908

8401

9010510524

main90105-10524

9011908C43

main90119-08C43

9017910088

main90179-10088

9046807027

main90468-07027

12 parts on this diagram · 3 diagrams in section
