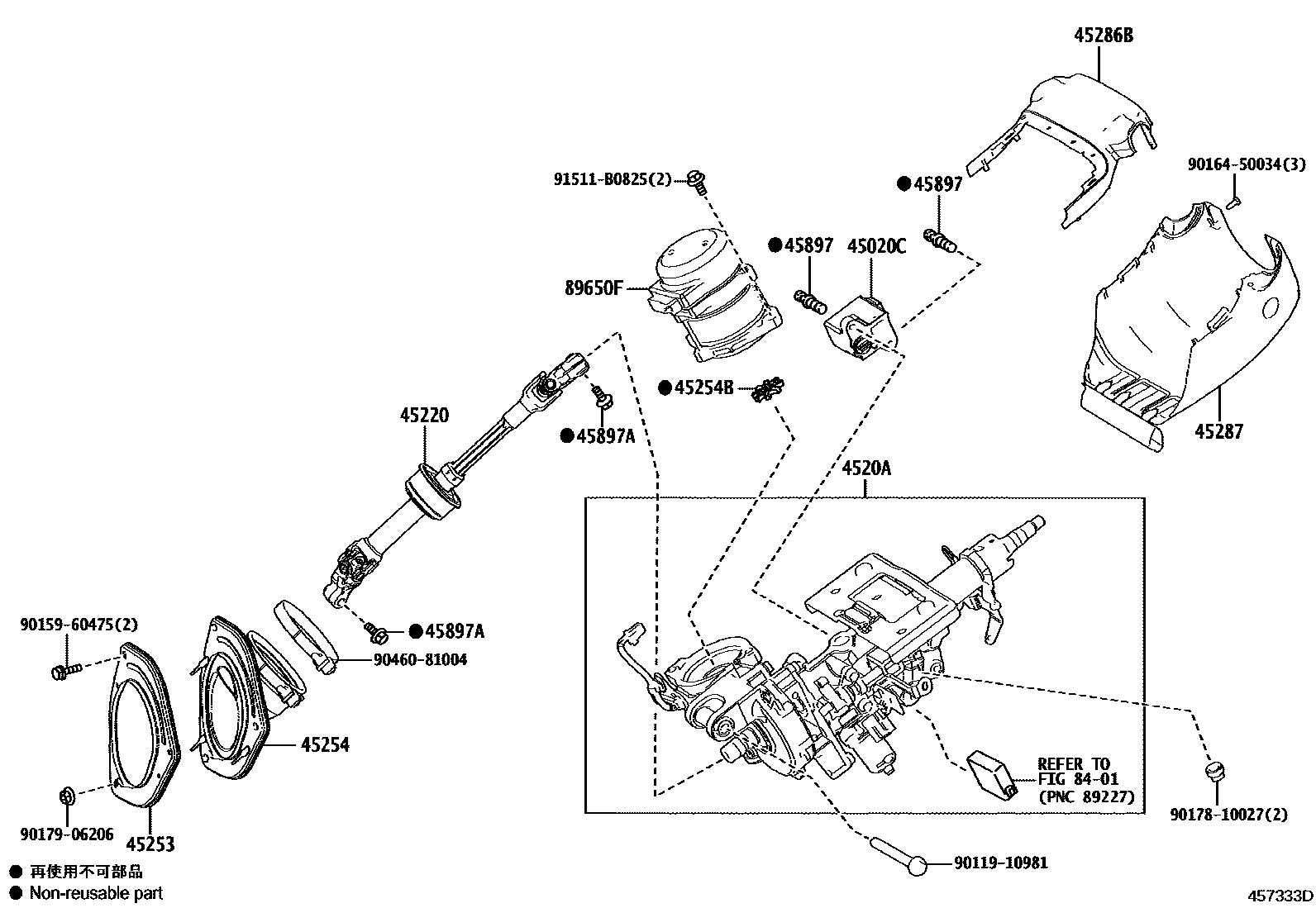

STEERING COLUMN & SHAFT
45020CACTUATOR ASSY, STEERING LOCK(W/ECU)
4520ACOLUMN SUB-ASSY, ELECTRIC POWER STEERING
45220SHAFT ASSY, STEERING INTERMEDIATE
45253COVER, STEERING COLUMN HOLE
45254SHIELD, STEERING COLUMN HOLE
45254BDAMPER, ELECTRIC POWER STEERING MOTOR SHAFT
45286BCOVER, STEERING COLUMN, UPR
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
BLACK,TRIM1#,2#,4#
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
NOBLE BROWN,TRIM0#,5#,6#
45287COVER, STEERING COLUMN, LWR
BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#
BLACK,TRIM0#,1#,2#,4#,5#,6#,8#
NOBLE BROWN,TRIM00,01,02,03,04
BLACK,TRIM1#,2#,4#
NOBLE BROWN,TRIM0#,5#,6#
45897BOLT, STEERING LOCK SET
45897ABOLT, TILT STEERING PAWL SET
8401
89650FCOMPUTER ASSY, POWER STEERING W/MOTOR
9011910981
main90119-10981
9015960475
main90159-60475
9016450034
main90164-50034
9017810027
main90178-10027
9017906206
main90179-06206
9046081004
main90460-81004
91511B0825
main91511-B0825
19 parts on this diagram · 2 diagrams in section
