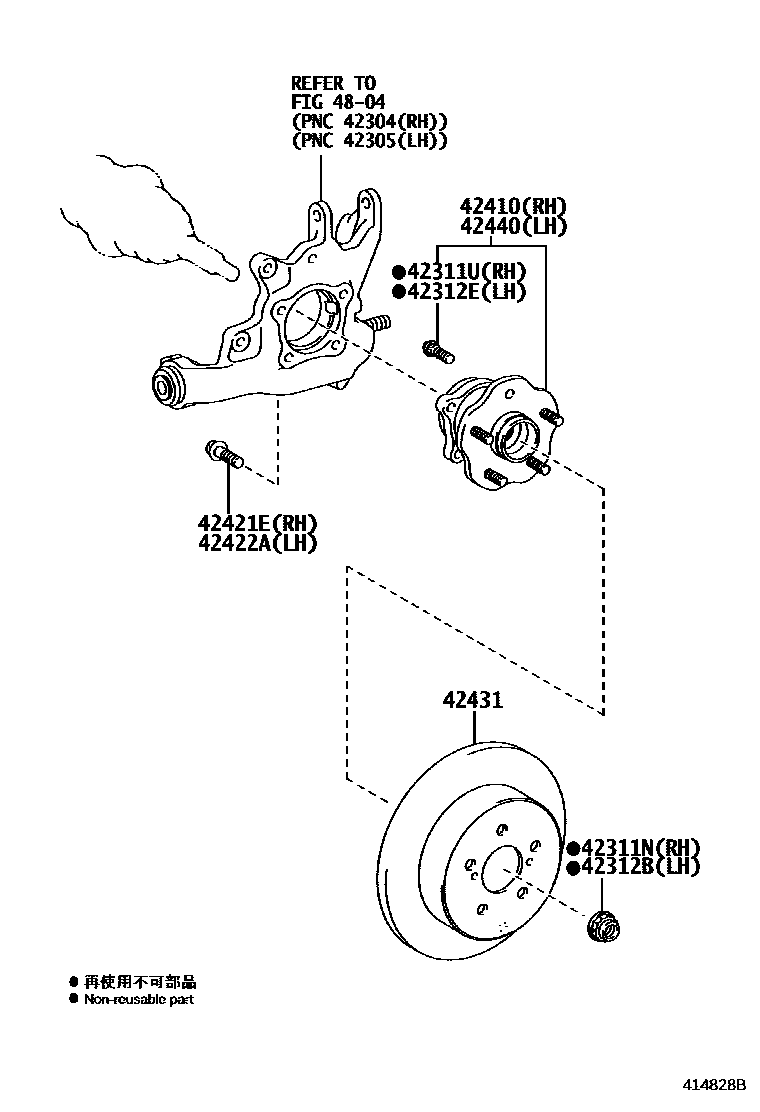

REAR AXLE SHAFT & HUB

0001 1 0002 1 0003 1

42311NNUT(FOR REAR AXLE SHAFT RH)

main90177-22001iGGL26,GYL26201712-201908

42311UBOLT, HUB(FOR REAR AXLE RH)

main90942-02052iGGL26,GYL26201712-201908

42312BNUT(FOR REAR AXLE SHAFT LH)

main90177-22001iGGL26,GYL26201712-201908

42312EBOLT, HUB(FOR REAR AXLE LH)

main90942-02052iGGL26,GYL26201712-201908

42410HUB & BEARING ASSY, REAR AXLE, RH

main42410-48060iGGL26,GYL26201712-201902

sub42410-48061

main42410-48061iGGL26,GYL26201903-201908

42421EBOLT (FOR REAR AXLE BEARING CASE RH)

main90105-14097iGGL26,GYL26201712-201908

42422ABOLT (FOR REAR AXLE BEARING CASE LH)

main90105-14097iGGL26,GYL26201712-201908

42431DISC, REAR

main42431-48090iGGL26,GYL26201712-201908

42440HUB & BEARING ASSY, REAR AXLE, LH

main42410-48060iGGL26,GYL26201712-201902

sub42410-48061

main42410-48061iGGL26,GYL26201903-201908

4804

10 parts on this diagram · 3 diagrams in section
