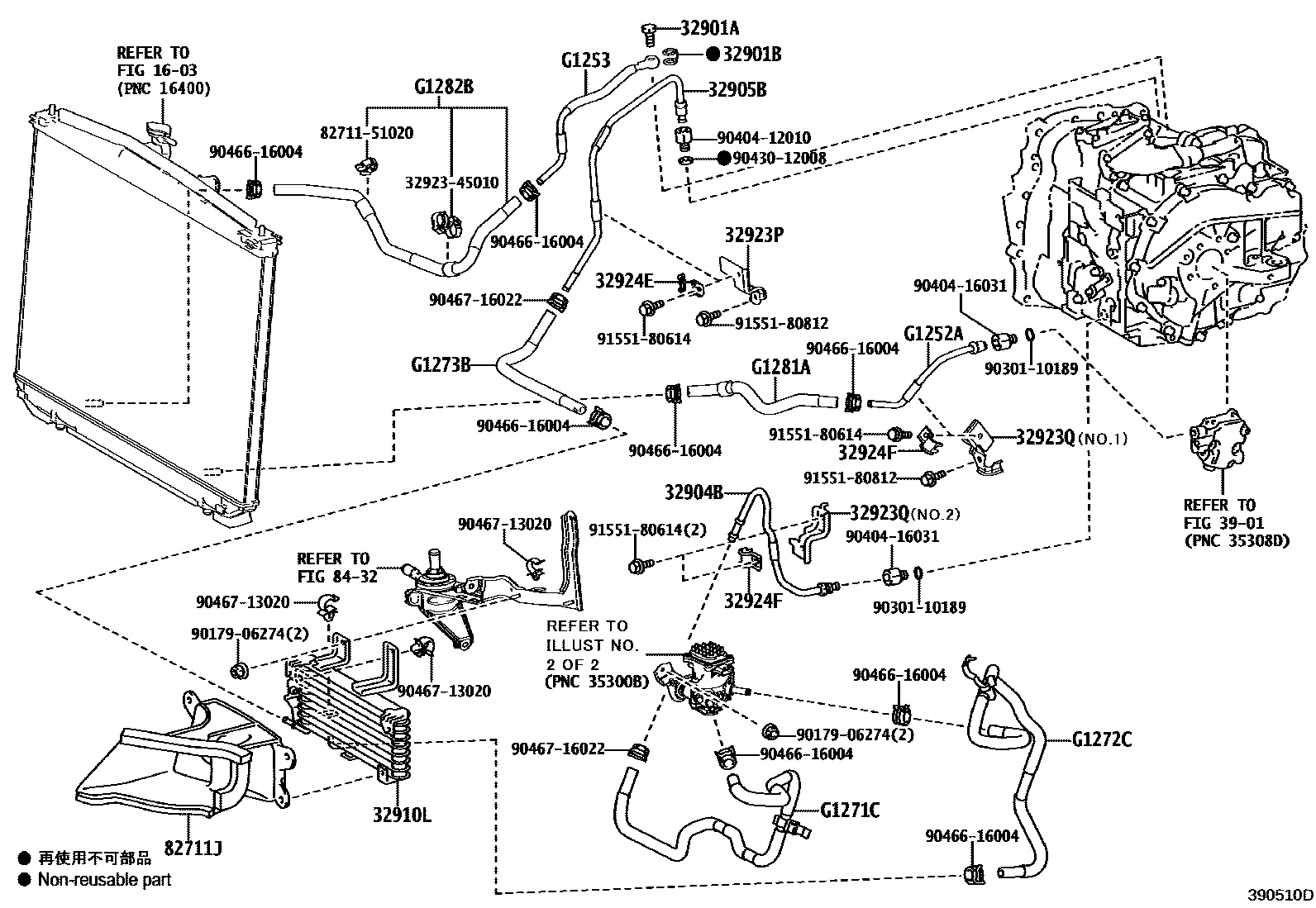

OIL COOLER & TUBE (HEV OR BEV OR FCEV)

0001 1 0002 1 0003 1

1603

32901ABOLT, UNION(FOR OIL COOLER)

main90401-12039iGYL26¥390201803-201908

32901BGASKET(FOR OIL COOLER UNION)

main90430-12037iGYL26¥80201803-201908

32904BTUBE SUB-ASSY, OIL COOLER INLET

main32904-48160iGYL26¥1,960201803-201908

32905BTUBE SUB-ASSY, OIL COOLER OUTLET

main32905-48230iGYL26¥2,360201803-201908

32910LCOOLER ASSY, OIL

main32910-48210iGYL26¥46,900201803-201908

main32910-48220iGYL26¥39,000201908

32923PCLAMP, OIL COOLER TUBE, NO.1

main32923-48060iGYL26¥400201803-201908

32923QCLAMP, OIL COOLER TUBE

main32923-48050iGYL26¥410201803-201908

NO.2

main32923-48070iGYL26¥390201803-201908

NO.1

32924ECLAMP, OIL COOLER TUBE, NO.2

main32929-30170iGYL26¥300201803-201908

32924FCLAMP, OIL COOLER TUBE, NO.2

main32924-48010iGYL26¥200201803-201908

3901

82711JDUCT, AIR

main32917-48060iGYL26¥5,900201803-201908

main32917-48080iGYL26¥2,080201908

8432

G1252APIPE, MOTOR COOLING, NO.2

mainG125248010iGYL26201803-201908

G1253PIPE, MOTOR COOLING, NO.3

mainG125348010iGYL26201803-201908

G1271CHOSE, MOTOR COOLING, NO.1

mainG127148060iGYL26201803-201908

mainG127148090iGYL26201908

G1272CHOSE, MOTOR COOLING, NO.2

mainG127248060iGYL26201803-201908

mainG127248080iGYL26201908

G1273BHOSE, MOTOR COOLING, NO.3

mainG127348050iGYL26201803-201908

mainG127348060iGYL26201908

G1281AHOSE, MOTOR INLET

mainG128148010iGYL26201803-201908

G1282BHOSE, MOTOR OUTLET

mainG128248010iGYL26201803-201908

3292345010CLAMP, AUTOMATIC TRANSMISSION OIL COOLER TUBE

main32923-45010¥390

8271151020WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-51020¥160

9017906274

main90179-06274¥70

9030110189

main90301-10189¥170

9040412010

main90404-12010¥340

9040416031

main90404-16031¥340

9043012008

main90430-12008¥90

9046616004

main90466-16004¥180

9046713020

main90467-13020¥240

9046716022

main90467-16022¥300

9155180614

main91551-80614¥60

9155180812

main91551-80812¥80

32 parts on this diagram · 3 diagrams in section
