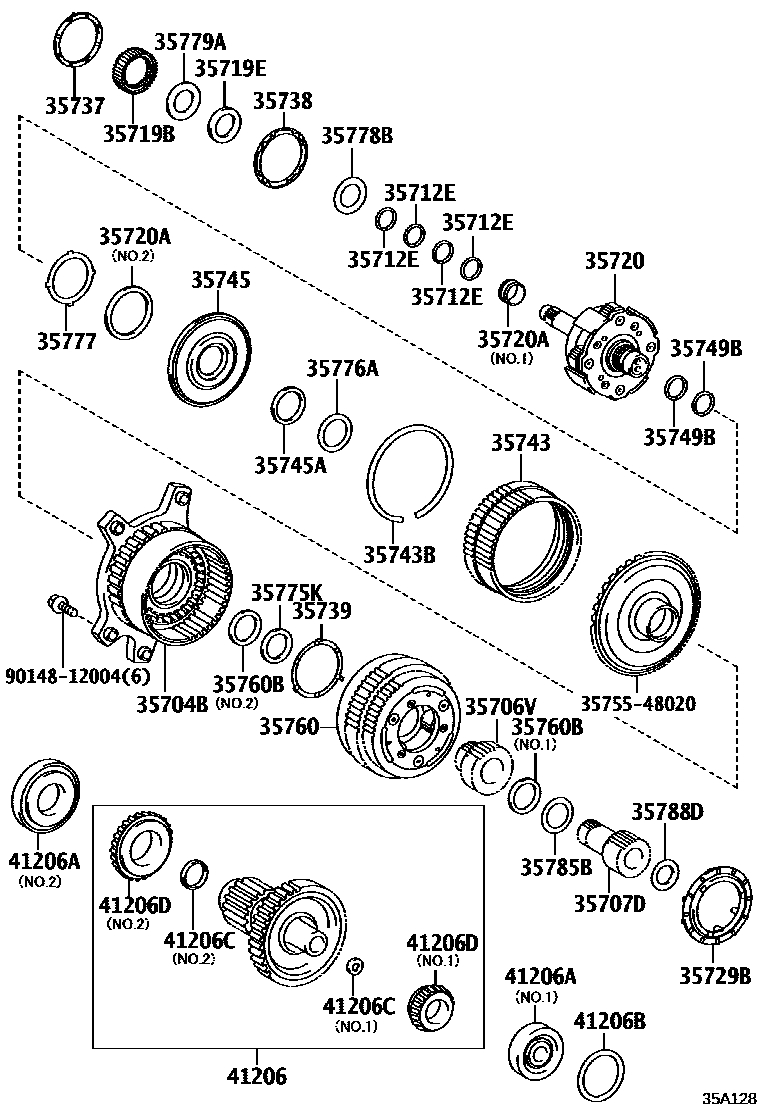

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)
35704BGEAR SUB-ASSY, FRONT PLANETARY
35706VGEAR SUB ASSY, PLANETARY SUN
35707DGEAR SUB-ASSY, REAR PLANETARY SUN
35712ERING, INPUT SHAFT OIL SEAL
35719BGEAR, PLANETARY SUN
35719EBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY SUN GEAR)
35720GEAR ASSY, FRONT PLANETARY
35720ABEARING, THRUST NEEDLE ROLLER (FOR FRONT PLANETARY GEAR)
NO.1
NO.2
35729BWASHER, PLANETARY CARRIER THRUST, NO.4
35737WASHER, PLANETARY CARRIER THRUST
35738WASHER, PLANETARY CARRIER THRUST, NO.2
35739WASHER, PLANETARY CARRIER THRUST, NO.3
35743GEAR, FRONT PLANETARY RING
35743BRING, HOLE SNAP (FOR FRONT PLANETARY RING GEAR)
35745FLANGE, FRONT PLANETARY RING GEAR
35745ABRG, THRUST NEEDLE ROLLER(FOR FRONT PLNT RING GEAR FLANGE)
35749BRING, INPUT SHAFT OIL SEAL, REAR
35760GEAR ASSY, REAR PLANETARY
35760BBEARING, THRUST NEEDLE ROLLER(FOR REAR PLANETRAY SUN GEAR)
NO.1
NO.2
35775KRACE, THRUST BEARING, NO.5
35776ARACE, THRUST BEARING, NO.6
35777RACE, THRUST BEARING, NO.7
35778BRACE, THRUST BEARING, NO.8
35779ARACE, THRUST BEARING, NO.9
35785BRACE, THRUST BEARING, NO.4
35788DRACE, THRUST BEARING, NO.3
41206GEAR SUB-ASSY, PINION & COUNTER DRIVEN
41206ABEARING, TAPERED ROLLER, NO.2
NO.1
NO.2
41206BSHIM(FOR PINION & COUNTER DRIVEN GEAR)
T=1.19,MARK CA
T=1.22,MARK CB
T=1.25,MARK CC
T=1.28,MARK CD
T=1.31,MARK CE
T=1.34,MARK CF
T=1.37,MARK CG
T=1.40,MARK CH
T=1.43,MARK CJ
T=1.46,MARK CK
T=1.49,MARK CL
T=1.52,MARK CM
T=1.55,MARK CN
T=1.58,MARK CP
T=1.61,MARK CR
T=1.64,MARK CS
T=1.67,MARK CT
T=1.70,MARK CU
T=1.73,MARK CV
T=1.76,MARK CW
T=1.79,MARK CX
T=1.82,MARK CY
T=1.85,MARK CZ
T=1.88,MARK DA
T=1.91,MARK DB
T=1.94,MARK DC
T=1.97,MARK DD
T=2.00,MARK DE
T=2.03,MARK DF
T=2.06,MARK DG
T=2.09,MARK DH
T=2.12,MARK DJ
T=2.15,MARK DK
T=2.18,MARK DL
T=2.21,MARK DM
41206CPLUG, TIGHT(FOR DIFFERENTIAL DRIVE PINION)
NO.1
NO.2
41206DBEARING, TAPERED ROLLER, NO.1
NO.1
NO.2
3575548020DRUM, SUN GEAR INPUT
main35755-48020
9014812004
main90148-12004
33 parts on this diagram · 1 diagram in section
