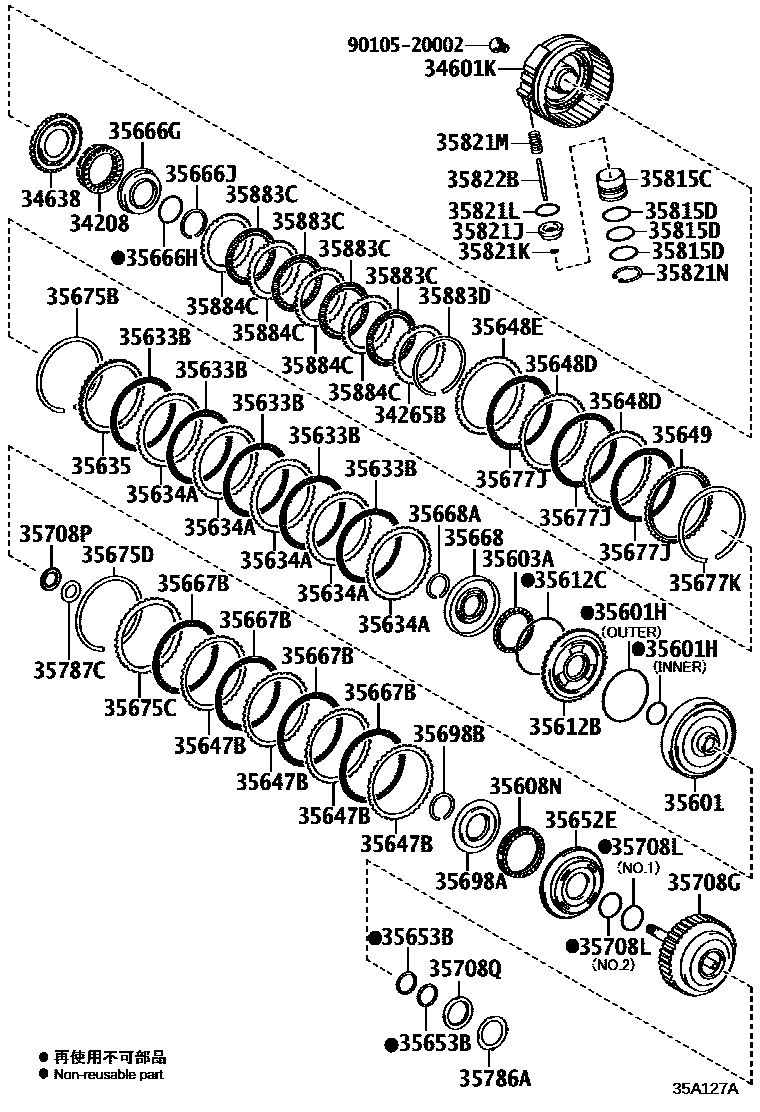

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
34208SPRING SUB-ASSY, UNDER DRIVE RETURN W/RETAINER
34265BFLANGE, UNDERDRIVE CLUTCH, NO.1
T=3.0 MARK 0
T=3.1 MARK 1
T=3.2 MARK 2
T=3.3 MARK 3
T=3.4 MARK 4
T=3.5 MARK 5
T=3.6 MARK 6
T=3.7 MARK 7
T=3.8 MARK 8
T=3.15 MARK A
T=3.25 MARK B
T=3.35 MARK C
34638PISTON, C-4 CLUTCH
35601DRUM SUB-ASSY, CLUTCH
35601HRING, O(FOR C-1 DRUM)
INNER
OUTER
35603ASPRING SUB-ASSY, FORWARD CLUTCH RETURN
35608NSPRING SUB-ASSY, CLUTCH RETURN W/RETAINER
35612BPISTON, FORWARD CLUTCH
35612CRING, O(FOR FORWARD CLUTCH PISTON)
35633BDISC, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35634APLATE, CLUTCH (FOR FORWARD MULTIPLE DISC CLUTCH)
35635FLANGE, FORWARD CLUTCH
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
T=4.45
T=4.55
T=4.65
35647BPLATE, CLUTCH, NO.2
35648DPLATE, CLUTCH, NO.3
35648EPLATE, CLUTCH, NO.3
35649FLANGE, REVERSE CLUTCH
T=3.0,MARK R
T=3.1,MARK S
T=3.2,MARK T
T=3.3,MARK U
T=3.4,MARK W
T=3.5,MARK X
T=3.05,MARK 2
T=3.15,MARK A
T=3.25,MARK AA
T=3.35,MARK BB
T=3.45,MARK CC
35652EPISTON, C-2 CLUTCH
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35666GBALANCER, C-4 CLUTCH
35666HRING, O(FOR C-4 CLUTCH BALANCER)
35666JRING, SNAP(FOR C-4 CLUTCH BALANCER)
35667BDISK, CLUTCH, NO.2
35668BALANCER, CLUTCH, NO.1
35668ARING, SNAP(FOR CLUTCH BALANCER)
35675BRING, HOLE SNAP (FOR FORWARD CLUTCH FLANGE)
35675CFLANGE, DIRECT CLUTCH
T=2.5
T=2.6
T=2.7
T=2.8
T=2.9
T=3.0
T=3.1
T=3.2
T=2.85
T=2.95
T=3.05
35675DRING, HOLE SNAP (FOR DIRECT CLUTCH FLANGE)
35677JDISC, CLUTCH, NO.3
35677KRING, HOLE SNAP(FOR C-3 CLUTCH)
35698ABALANCER, C-2 CLUTCH
35698BRING SNAP(FOR C-2 CLUTCH BALANCER)
35708GSHAFT SUB-ASSY, INTERMEDIATE
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1
NO.2
35708PBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35708QBEARING, THRUST NEEDLE ROLLER (FOR INTERMEDIATE SHAFT)
35786ARACE, THRUST BEARING, NO.1
35787CRACE, THRUST BEARING, NO.2
35815CCOVER, BRAKE PISTON
35815DRING, O(FOR BRAKE PISTON COVER)
35821JPISTON, B-1 BRAKE
35821KRING, E(FOR B-1 BRAKE PISTON)
35821LRING, O(FOR B-1 BRAKE PISTON)
35821MSPRING, COMPRESSION(FOR B-1 BRAKE PISTON)
35821NRING, HOLE SNAP(FOR B-1 BRAKE PISTON)
35822BROD, B-1 BRAKE PISTON
L=102.8
L=103.05
L=103.3
L=103.55
L=103.8
L=104.05
L=104.3
L=104.55
L=104.8
L=105.05
L=105.3
35883CDISC, CLUTCH, NO.4
35883DRING, SNAP(FOR C-4 CLUTCH)
35884CPLATE, CLUTCH, NO.4
9010520002
main90105-20002
50 parts on this diagram · 2 diagrams in section
