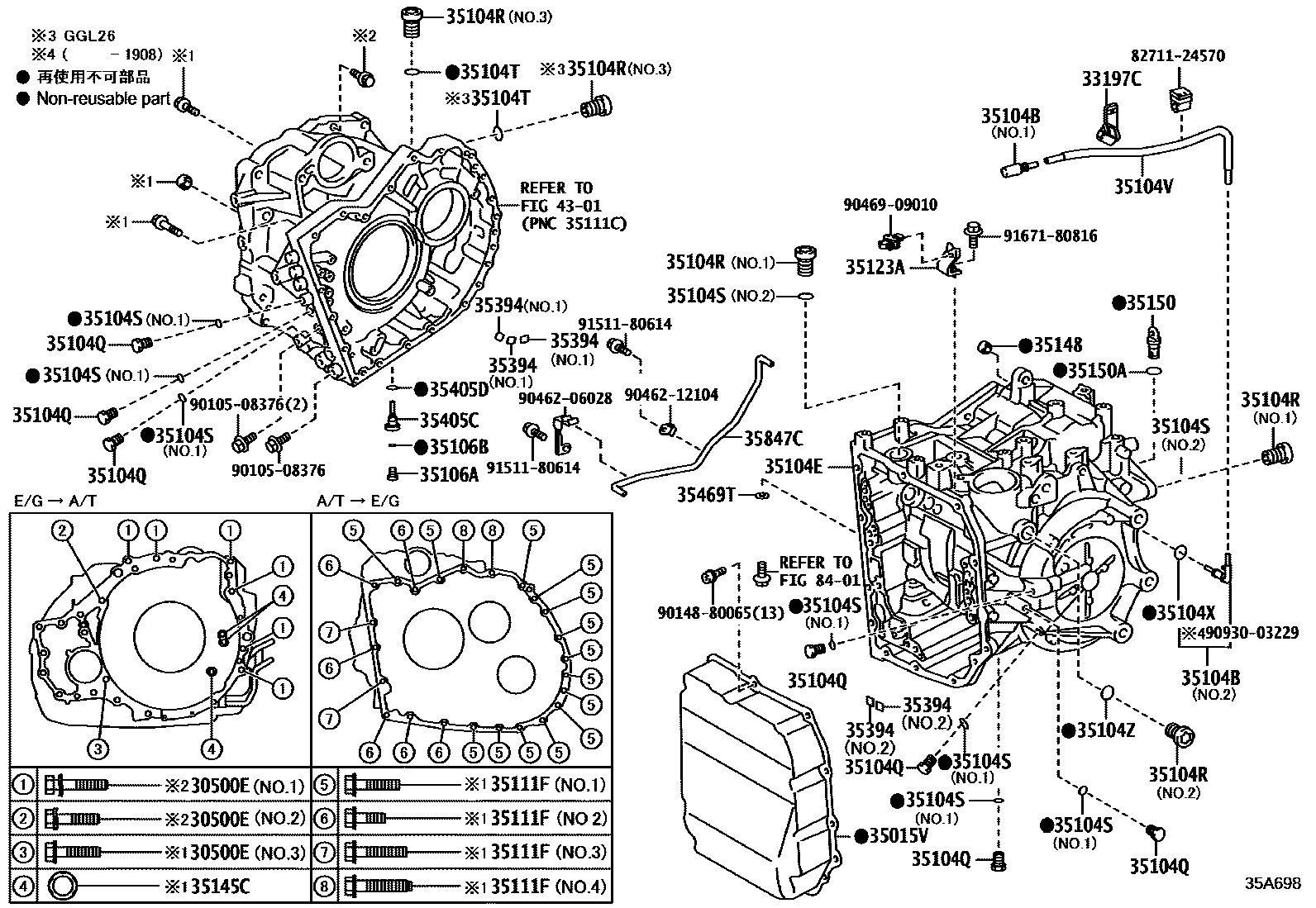

TRANSMISSION CASE & OIL PAN (ATM)
30500EBOLT(FOR TRANSAXLE & ENGINE SETTING)
*10-1.25PX41-28,NO.3:REFER ILLUST.
*12-1.25PX55-30,NO.1:REFER ILLUST.
*12-1.25PX50-30,NO.2:REFER ILLUST.
33197CCLAMP, TRANSMISSION BREATHER
35015VCOVER SUB-ASSY, TRANSAXLE SIDE
35104BPLUG, BREATHER, NO.1 (ATM)
NO.1
NO.2
35104ECASE SUB-ASSY, AUTOMATIC TRANSAXLE
35104QPLUG, NO.1 (FOR TRANSAXLE CASE)
35104RPLUG, NO.2 (FOR TRANSAXLE CASE)
NO.3
NO.1
NO.2
35104SRING, O (FOR TRANSAXLE CASE PLUG NO.1)
NO.1
NO.2
35104TRING, O (FOR TRANSAXLE CASE PLUG NO.2)
35104VHOSE (FOR BREATHER PLUG)
35104XRING, O (FOR BREATHER PLUG)
35104ZGASKET (FOR TRANSAXLE CASE)
35106APLUG SUB-ASSY, DRAIN (ATM)
35106BGASKET, DRAIN PLUG (ATM)
35111FBOLT (FOR TRANSAXLE HOUSING & TRANSAXLE CASE SETTING)
*8-1.25PX30-25,NO.2
*8-1.25PX49-30,NO.3
*10-1.25PX43-26,NO.4
35123ASKIRT, TRANSMISSION BREATHER
35145CGASKET, TRANSAXLE CASE
35148GASKET, GOVERNOR APPLY, NO.1
35150PLUG ASSY, TRANSMISSION CASE
35150ARING, O (FOR AUTOMATIC TRANSMISSION CASE PLUG)
35394MAGNET, OIL CLEANER (FOR TRANSMISSION)
NO.1
NO.2
35405CPLUG SUB-ASSY, W/HEAD STRAIGHT SCREW
35405DRING, O (FOR STRAIGHT SCREW PLUG)
35469TSPACER(FOR TRANSMISSION OIL FILLER TUBE)
35847CTUBE, TRANSMISSION LUBE APPLY
4301
8401
8271124570WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
9010508376
9014880065
9046206028
main90462-06028
9046212104
main90462-12104
9046909010
9093003229
main90930-03229
9151180614
9167180816
36 parts on this diagram · 1 diagram in section
