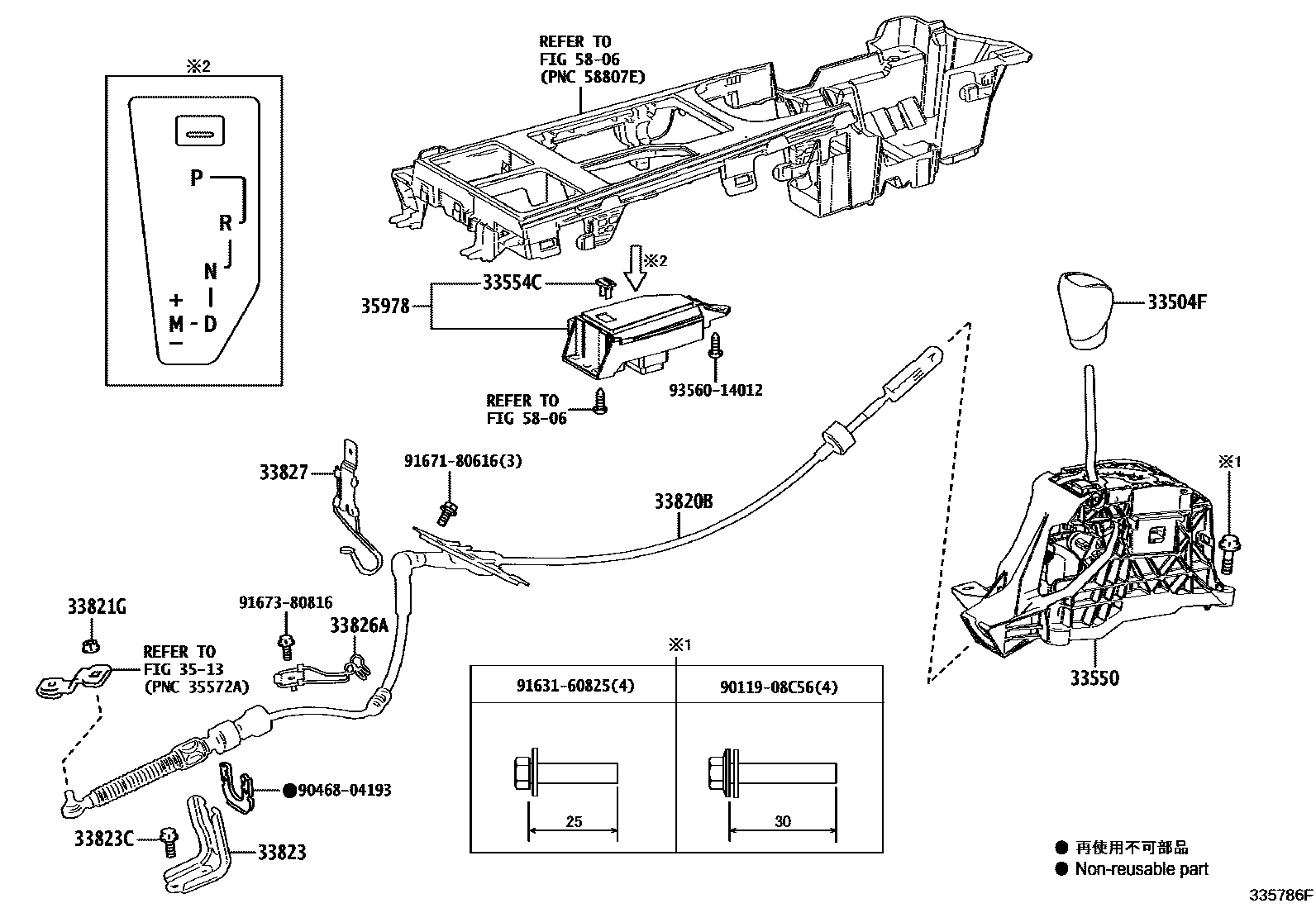

SHIFT LEVER & RETAINER

0001 1 0002 1 0003 1

33504FKNOB SUB-ASSY, SHIFT LEVER

main33504-48110-C0iGGL26201908-202007

BLACK,TRIM0#,1#,2#,4#,5#,6#,8#

main33504-48110-C0iGGL26202007

BLACK,TRIM0#,1#,2#,4#,5#,6#

main33504-48110-C0iGYL26201908-202007

BLACK,TRIM00,01,02,03,04,1#,2#,4#,5#,6#

main33504-48110-C0iGGL26,GYL26201712-201908

BLACK,TRIM1#,2#,4#

main33504-48110-E0iGGL26,GYL26201712-201908

NOBLE BROWN,TRIM0#,5#,6#

main33504-48110-E0iGGL26,GYL26201908-202007

NOBLE BROWN,TRIM00,01,02,03,04

33550FLOOR SHIFT ASSY, TRANSMISSION

main33550-48531iGGL26,GYL26..LHD201712-201908

main33550-48541iGYL26..RHD201803-201908

33554CCOVER, SHIFT LOCK RELEASE BUTTON

main33554-48090iGGL26,GYL26201712-201908

33820BCABLE ASSY, TRANSMISSION CONTROL

main33820-48310iGGL26201712-201908

main33820-48380iGYL26201803-201908

33821GNUT (FOR TRANSMISSION CONTROL CABLE)

main94151-80800iGGL26,GYL26201712-201908

33823BRACKET, TRANSMISSION CONTROL CABLE, NO.1

main33823-48100iGYL26201803-201908

main33823-48120iGGL26201712-201908

33823CBOLT (FOR TRANSMISSION CONTROL CABLE BRACKET)

main91671-80816iGGL26,GYL26201712-201908

33826ABRACKET, TRANSMISSION CONTROL CABLE, NO.2

main33826-48110iGGL26201712-201908

33827BRACKET, TRANSMISSION CONTROL CABLE, NO.3

main33827-48020iGGL26,GYL26201712-201908

3513

35978INDICATOR, SHIFT POSITION

main35978-48010iGGL26201712-201908

main35978-48030iGYL26..LHD201803-201908

main35978-48040iGYL26..RHD201803-201908

5806

9011908C56

main90119-08C56

9046804193

main90468-04193

9163160825

main91631-60825

9167180616

main91671-80616

9167380816

main91673-80816

9356014012

main93560-14012

18 parts on this diagram · 3 diagrams in section
