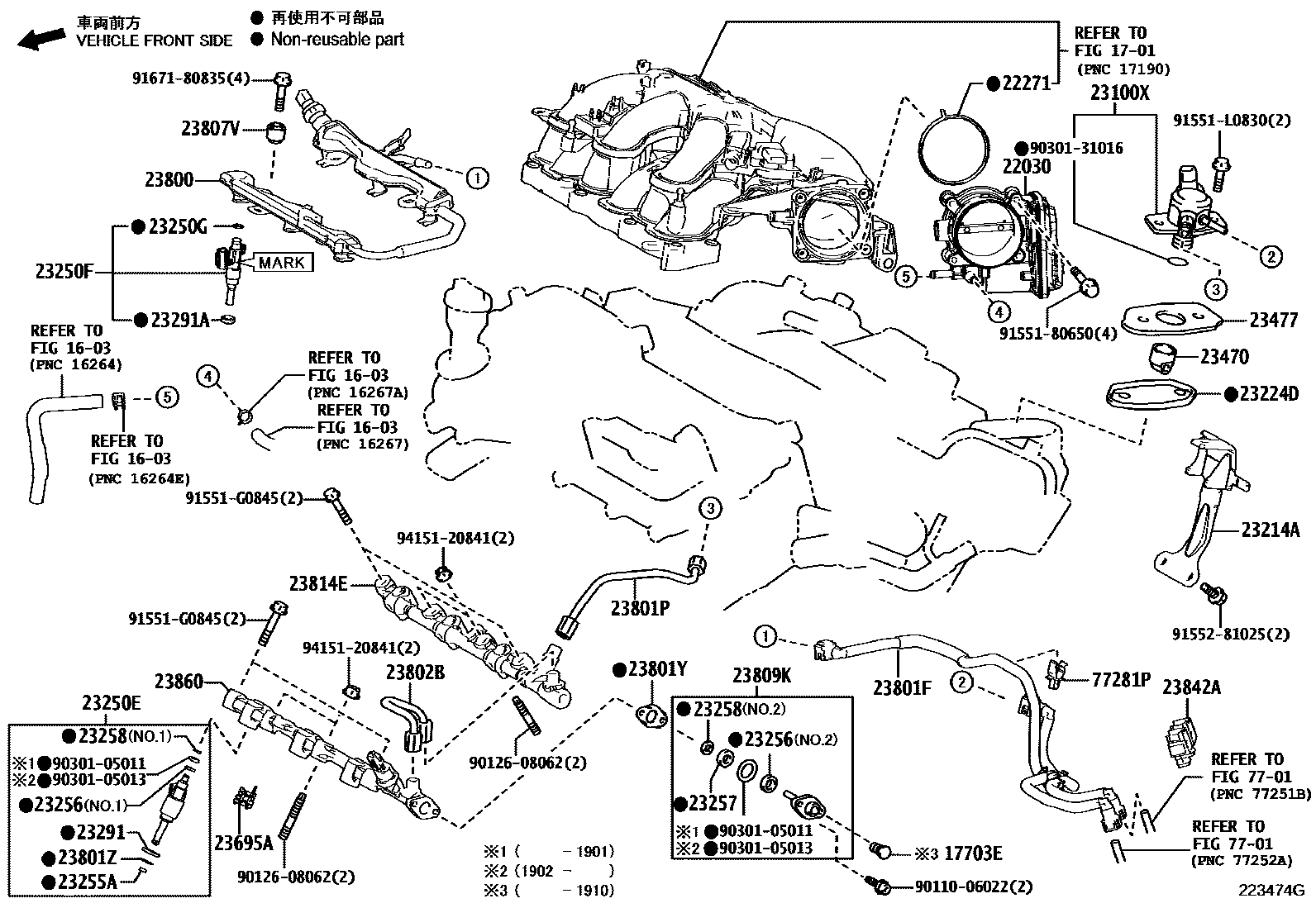

FUEL INJECTION SYSTEM
1603RADIATOR & WATER OUTLET
1701MANIFOLD
17703ECAP SUB-ASSY, DUST
22030BODY ASSY, THROTTLE W/THROTTLE POSITION SENSOR
22271GASKET, THROTTLE BODY
23100XPUMP ASSY, FUEL (ENGINE ROOM SIDE)
23214APROTECTOR, FUEL PUMP
23224DGASKET, FUEL PUMP SPACER
23250EINJECTOR ASSY, FUEL(FOR DIRECT)
MARK 6,REFER REPAIR MANUAL
MARK 7,REFER REPAIR MANUAL
MARK 8,REFER REPAIR MANUAL
MARK 1,REFER REPAIR MANUAL
MARK 2,REFER REPAIR MANUAL
MARK 3,REFER REPAIR MANUAL
23250FINJECTOR ASSY, FUEL(FOR PORT)
MARK=23250-31140
MARK=23250-31230
23250GRING, O, NO.2(FOR FUEL INJECTOR)
(J)
(L)
23255ASEAL, FUEL INJECTOR
23256RING, FUEL INJECTOR BACK-UP, NO.1
NO.1
NO.2
NO.1
23257RING, FUEL INJECTOR BACK-UP, NO.2
23258RING, FUEL INJECTOR BACK-UP, NO.3
NO.2
NO.1
NO.1
23291INSULATOR, INJECTOR VIBRATION
23291AINSULATOR, INJECTOR VIBRATION
23470LIFTER ASSY, FUEL PUMP
23477GUIDE, FUEL PUMP LIFTER
23695ACLAMP, NOZZLE HOLDER
23800PIPE ASSY, FUEL DELIVERY W/SENSOR
23801FHOSE, FUEL, NO.1
23801PPIPE SUB-ASSY, FUEL, NO.1
23801YGASKET
23801ZRING, SNAP(FOR FUEL PIPE)
NO.2
23802BPIPE SUB-ASSY, FUEL, NO.2
23807VSPACER, NO.1(FOR DELIVERY PIPE)
23809KPLUG SUB-ASSY, FUEL PIPE
23814EPIPE, FUEL DELIVERY, RH
23842ACLAMP, FUEL PIPE, NO.2(FOR EFI)
23860PIPE ASSY, FUEL DELIVERY W/SENSOR, LH
7701FUEL TANK & TUBE
77281PCLAMP, FUEL HOSE
9011006022
main90110-06022
9012608062
main90126-08062
9030105011
main90301-05011
9030105013
main90301-05013
9030131016
main90301-31016
9155180650
main91551-80650
91551G0845
main91551-G0845
91551L0830
main91551-L0830
9155281025
main91552-81025
9167180835
main91671-80835
9415120841
main94151-20841
44 parts on this diagram · 2 diagrams in section
