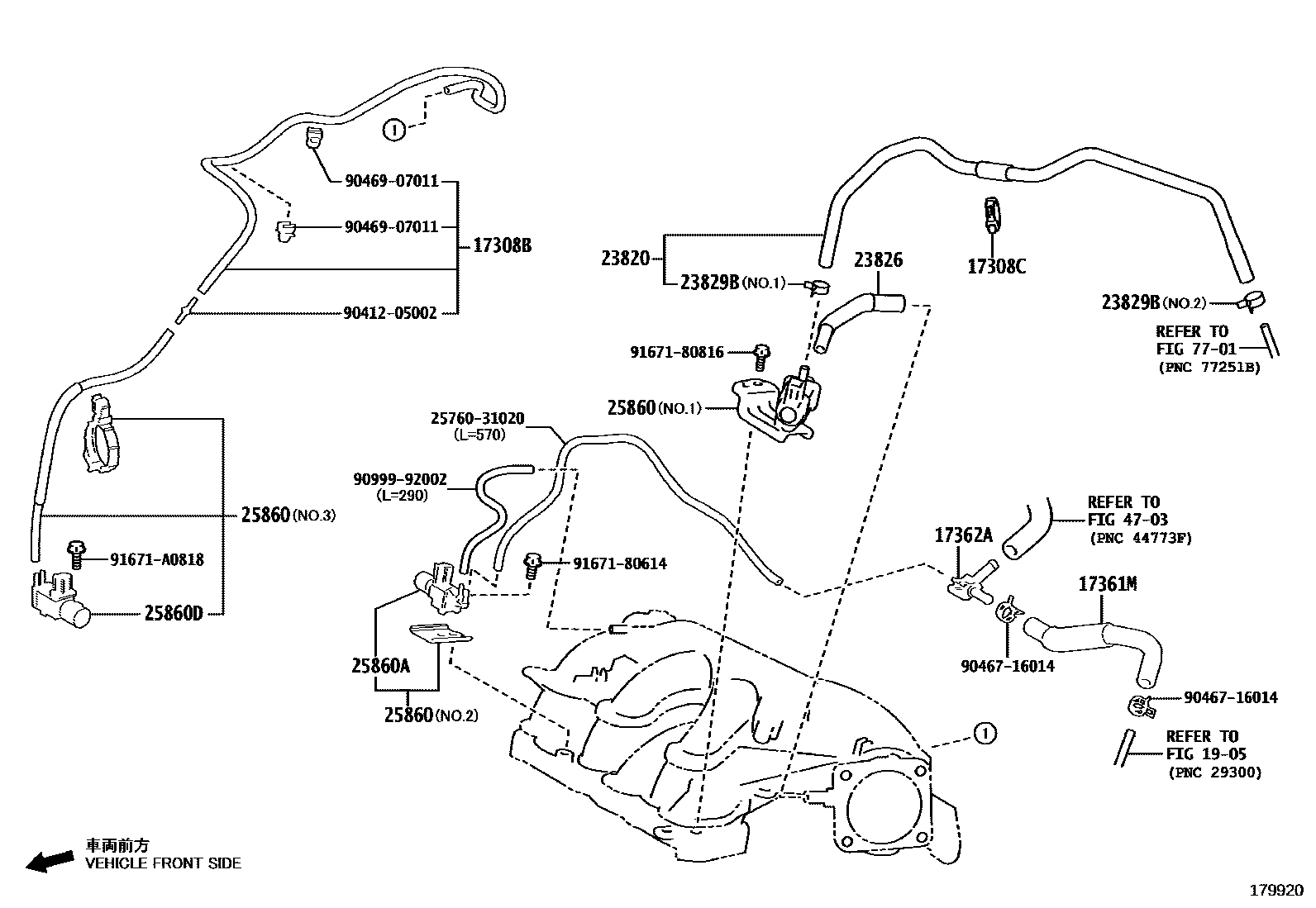

VACUUM PIPING

0001 1 0002 1 0003 1W(GPF)

17308BHOSE SUB-ASSY, VACUUM

main17308-31090i2GRFKS..GGL26201712-201908

17308CCLAMP(FOR VACUUM HOSE)

main44753-48360i2GRFKS..GGL26201712-201908

17361MTUBE, AIR

main17361-31040i2GRFKS..GGL26201712-201908

17362ATUBE, AIR, NO.2

main17362-31040i2GRFKS..GGL26201712-201908

1905VACUUM PUMP

→ Go to FIG 19-05

23820HOSE ASSY, FUEL VAPOR FEED

main23820-31291i2GRFKS..GGL26201712-201908

23826HOSE, FUEL VAPOR FEED, NO.1

main23826-31260i2GRFXS..GYL26201803-201908

NO.1

main23826-31410i2GRFKS..GGL26201712-201908

main23826-31480i2GRFXS..GYL26201803-201908

NO.2

23829BCLIP(FOR FUEL VAPOR FEED HOSE)

main96132-51100i2GRFKS..GGL26201712-201908

NO.1

main96136-41901i2GRFXS..GYL26201803-201908

main96138-41501i2GRFKS..GGL26201712-201908

NO.2

25860VALVE ASSY, VACUUM SWITCHING, NO.1

main25860-31120i2GRFKS..GGL26201712-201908

NO.2

main25860-31130i2GRFKS..GGL26201712-201908

NO.3

main25860-31160i2GRFKS..GGL26201712-201908

NO.1

main25860-31190i2GRFXS..GYL26201803-201908

NO.1

25860AVALVE, VACUUM SWITCHING, NO.1

main25860-46010i2GRFKS..GGL26201712-201908

25860DVALVE ASSY, VACUUM SWITCHING, NO.2

main90910-12132i2GRFKS..GGL26201712-201908

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

7701FUEL TANK & TUBE

→ Go to FIG 77-01

2576031020HOSE ASSY, VACUUM TRANSMITTING

main25760-31020

9041205002

main90412-05002

9046716014

main90467-16014

9046907011

main90469-07011

9099992002

main90999-92002

9167180614

main91671-80614

9167180816

main91671-80816

91671A0818

main91671-A0818

21 parts on this diagram · 3 diagrams in section
