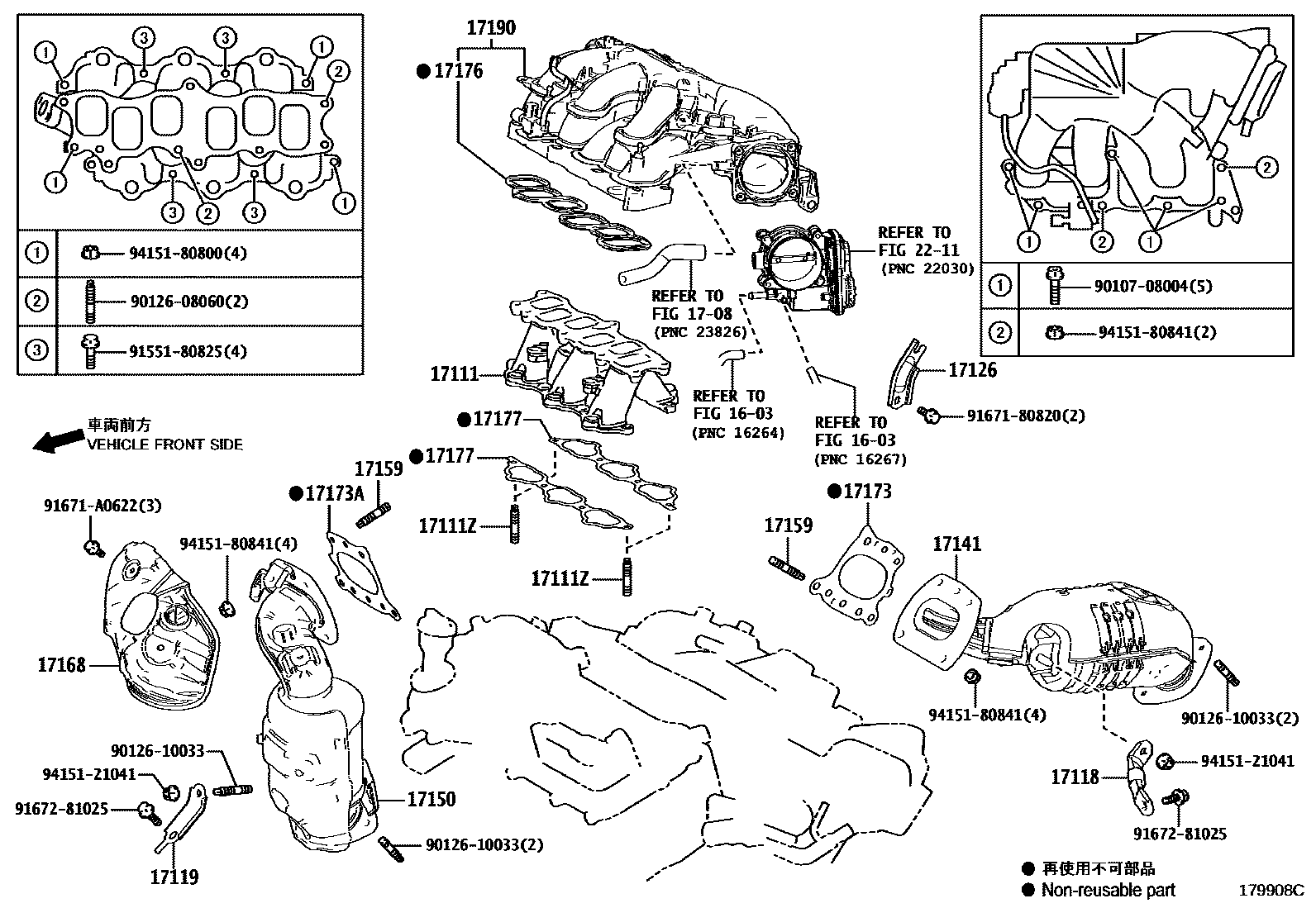

MANIFOLD

0001 1 0002 1

1603

1708

17111MANIFOLD, INTAKE

main17111-31230i2GRFKS..GGL26201712-201908

main17120-31070i2GRFXS..GYL26201803-201908

17111ZBOLT, STUD(FOR INTAKE MANIFOLD TO CYLINDER HEAD)

main90126-08052i2GR#..GGL26,GYL26201712-201908

17118STAY, MANIFOLD

main17118-31170i2GR#..GGL26,GYL26201712-201908

17119STAY, MANIFOLD, NO.2

main17119-31150i2GR#..GGL26,GYL26201712-201908

17126STAY, SURGE TANK, NO.2

main17126-31090i2GR#..GGL26,GYL26201712-201908

17141MANIFOLD, EXHAUST

main17140-31380i2GRFKS..GGL26201712-201908

*114=TOYOTA/R31380/Y

main17140-31430i2GRFXS..GYL26201803-201908

*114=TOYOTA/R31430/Y

17150MANIFOLD ASSY, EXHAUST, LH

main17150-31220i2GRFXS..GYL26201803-202007

*114=TOYOTA/L31220/Y

main17150-31410i2GRFKS..GGL26201712-201908

*114=TOYOTA/L31410/Y

main17150-31D10i2GRFXS..GYL26202007

*114=TOYOTA/L31D10/Y

17159BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD)

main90126-08052i2GR#..GGL26,GYL26201712-201908

17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2

main17168-31090i2GRFXS..GYL26201803-201908

main17168-31130i2GRFKS..GGL26201712-201908

17173GASKET, EXHAUST MANIFOLD TO HEAD

main17173-31070i2GR#..GGL26,GYL26201712-201908

17173AGASKET, EXHAUST MANIFOLD TO HEAD, LH

main17173-31070i2GR#..GGL26,GYL26201712-201908

17176GASKET, AIR SURGE TANK TO INTAKE MANIFOLD

main17176-31130i2GR#..GGL26,GYL26201712-201908

17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1

main17177-31070i2GR#..GGL26,GYL26201712-201908

17190TANK ASSY, INTAKE AIR SURGE

main17190-31270i2GRFKS..GGL26201712-201908

main17190-31280i2GRFXS..GYL26201803-201908

2211

9010708004

main90107-08004

9012608060

main90126-08060

9012610033

main90126-10033

9155180825

main91551-80825

9167180820

main91671-80820

91671A0622

main91671-A0622

9167281025

main91672-81025

9415121041

main94151-21041

9415180800

main94151-80800

9415180841

main94151-80841

27 parts on this diagram · 2 diagrams in section
