11011WASHER SET, CRANKSHAFT THRUST

main11011-31080i201712-201908

STD

11711BEARING, CRANKSHAFT

main11071-31060-A1i201712-201908

MARK UPPER 1 LOWER 1,NO.2,REFER R/M

sub11071-31060

main11071-31060-A2i201712-201908

MARK UPPER 1 LOWER 2,NO.2,REFER R/M

sub11071-31060

main11071-31060-B2i201712-201908

MARK UPPER 2 LOWER 2,NO.2,REFER R/M

sub11071-31060

main11071-31060-B3i201712-201908

MARK UPPER 2 LOWER 3,NO.2,REFER R/M

sub11071-31060

main11071-31060-C3i201712-201908

MARK UPPER 3 LOWER 3,NO.2,REFER R/M

sub11071-31060

main11071-31060-C4i201712-201908

MARK UPPER 3 LOWER 4,NO.2,REFER R/M

sub11071-31060

main11071-31060-D4i201712-201908

MARK UPPER 4 LOWER 4,NO.2,REFER R/M

sub11071-31060

main11071-31060-D5i201712-201908

MARK UPPER 4 LOWER 5,NO.2,REFER R/M

sub11071-31060

main11071-31060-E5i201712-201908

MARK UPPER 5 LOWER 5,NO.2,REFER R/M

sub11071-31060

main11701-31100-A1i201712-201908

MARK UPPER 1 LOWER 1,NO.1,REFER R/M

sub11701-31100

main11701-31100-A2i201712-201908

MARK UPPER 1 LOWER 2,NO.1,REFER R/M

sub11701-31100

main11701-31100-B2i201712-201908

MARK UPPER 2 LOWER 2,NO.1,REFER R/M

sub11701-31100

main11701-31100-B3i201712-201908

MARK UPPER 2 LOWER 3,NO.1,REFER R/M

sub11701-31100

main11701-31100-C3i201712-201908

MARK UPPER 3 LOWER 3,NO.1,REFER R/M

sub11701-31100

main11701-31100-C4i201712-201908

MARK UPPER 3 LOWER 4,NO.1,REFER R/M

sub11701-31100

main11701-31100-D4i201712-201908

MARK UPPER 4 LOWER 4,NO.1,REFER R/M

sub11701-31100

main11701-31100-D5i201712-201908

MARK UPPER 4 LOWER 5,NO.1,REFER R/M

sub11701-31100

main11701-31100-E5i201712-201908

MARK UPPER 5 LOWER 5,NO.1,REFER R/M

sub11701-31100

13011RING SET, PISTON

main13011-31230i201712-201908

STD

sub13011-31290

13041BEARING, CONNECTING ROD

main13041-31100-01i201712-201908

MARK 1

main13041-31100-02i201712-201908

MARK 2

main13041-31100-03i201712-201908

MARK 3

main13041-31100-04i201712-201908

MARK 4

13101PISTON SUB-ASSY, W/PIN

main13101-31171-A0i201712-201908

STD,MARK A,RH BANK

main13101-31171-B0i201712-201908

STD,MARK B,RH BANK

main13101-31171-C0i201712-201908

STD,MARK C,RH BANK

main13101-31181-A0i201803-201908

STD,MARK A,RH BANK

main13101-31181-B0i201803-201908

STD,MARK B,RH BANK

main13101-31181-C0i201803-201908

STD,MARK C,RH BANK

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-22025i201712-201908

13201ROD SUB-ASSY, CONNECTING

main13201-39285-A0i201712-201908

MARK A,REFER REPAIR MANUAL

main13201-39285-B0i201712-201908

MARK B,REFER REPAIR MANUAL

main13201-39285-C0i201712-201908

MARK C,REFER REPAIR MANUAL

13201ABUSH(FOR CONNECTING ROD SMALL END)

main90999-73144i201712-201908

13265BOLT, CONNECTING ROD

main13265-28010i201712-201901

sub13265-28020

main13265-28020i201901-201908

13301PISTON SUB-ASSY, W/PIN, LH

main13301-31101-A0i201712-201908

STD,MARK A,LH BANK

main13301-31101-B0i201712-201908

STD,MARK B,LH BANK

main13301-31101-C0i201712-201908

STD,MARK C,LH BANK

main13301-31111-A0i201803-201908

STD,MARK A,LH BANK

main13301-31111-B0i201803-201908

STD,MARK B,LH BANK

main13301-31111-C0i201803-201908

STD,MARK C,LH BANK

13405FLYWHEEL SUB-ASSY

main13405-31130i201803-201908

sub13405-31131

sub90250-08054

13405APIN, STRAIGHT(FOR FLYWHEEL)

main90250-08120i201803-201908

L=18,OD=8

13405BBOLT, FLYWHEEL SETTING

main90105-10048i201803-201908

13411CRANKSHAFT

main13401-31070i201712-201908

sub13401-31080

13471PULLEY, CRANKSHAFT

main13470-31060i201712-201908

main13470-31080i201803-201908

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020i201712-201908

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-31070i201712-201908

13521AKEY(FOR CRANKSHAFT TIMING GEAR)

main95161-30516i201712-201908

13581SHAFT, IDLE GEAR, NO.1

main13581-31030i201712-201908

13582SHAFT, IDLE GEAR, NO.2

main13582-31031i201712-201908

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-31020i201712-201908

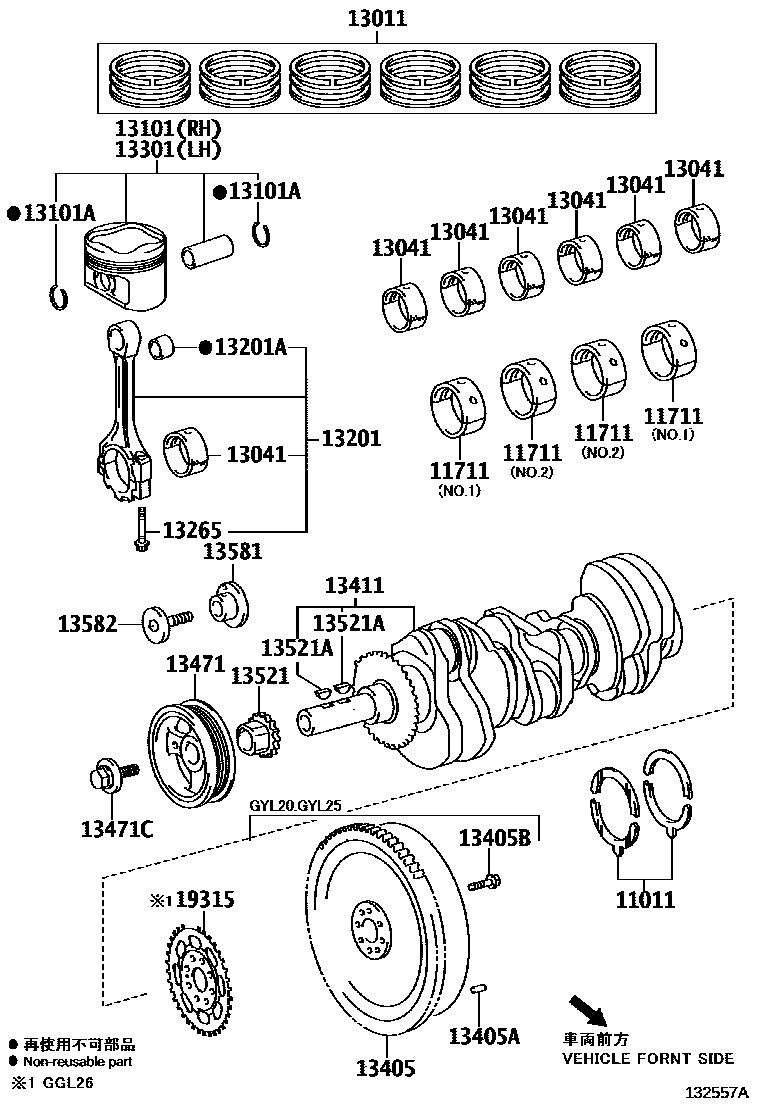

CRANKSHAFT & PISTON
