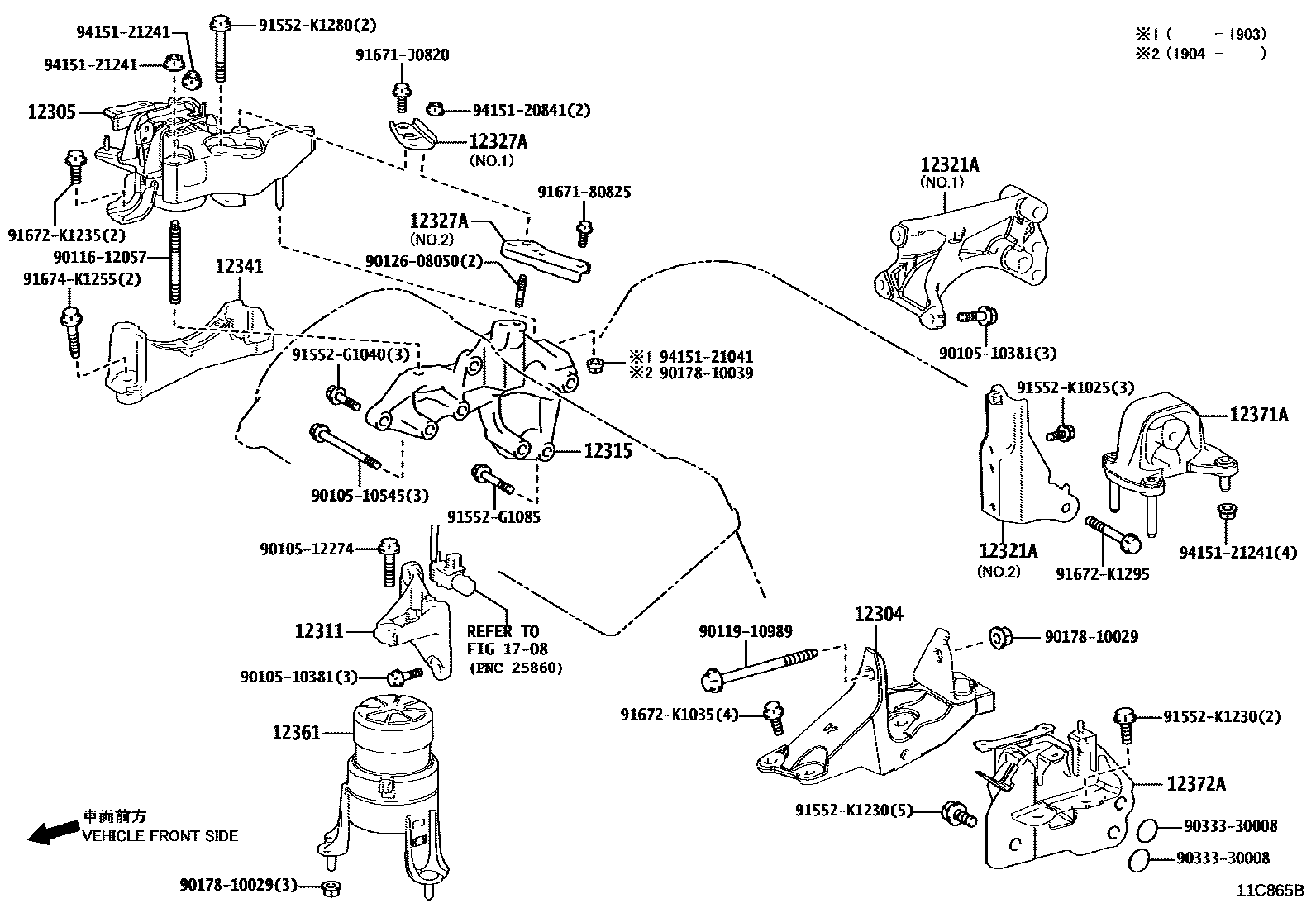

MOUNTING
12304BRACKET SUB-ASSY, ENGINE MOUNTING, LH
12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH
12311BRACKET, ENGINE MOUNTING, FRONT NO.1 RH
12315BRACKET, ENGINE MOUNTING, FRONT NO.1 LH
12321ABRACKET, ENGINE MOUNTING, REAR(FOR TRANSVERSE ENGINE)
NO.1
NO.2
12327ASTAY, ENGINE MOUNTING, NO.2 RH
NO.1
NO.2
12341SPACER, ENGINE MOUNTING
12361INSULATOR, ENGINE MOUNTING, FRONT
12371AINSULATOR, ENGINE MOUNTING, REAR
12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)
1708
9010510381
main90105-10381
9010510545
main90105-10545
9010512274
main90105-12274
9011612057
main90116-12057
9011910989
main90119-10989
9012608050
main90126-08050
9017810029
main90178-10029
9017810039
main90178-10039
9033330008
main90333-30008
91552G1040
main91552-G1040
91552G1085
main91552-G1085
91552K1025
main91552-K1025
91552K1230
main91552-K1230
91552K1280
main91552-K1280
9167180825
main91671-80825
91671J0820
main91671-J0820
91672K1035
main91672-K1035
91672K1235
main91672-K1235
91672K1295
main91672-K1295
91674K1255
main91674-K1255
9415120841
main94151-20841
9415121041
main94151-21041
9415121241
main94151-21241
34 parts on this diagram · 2 diagrams in section
