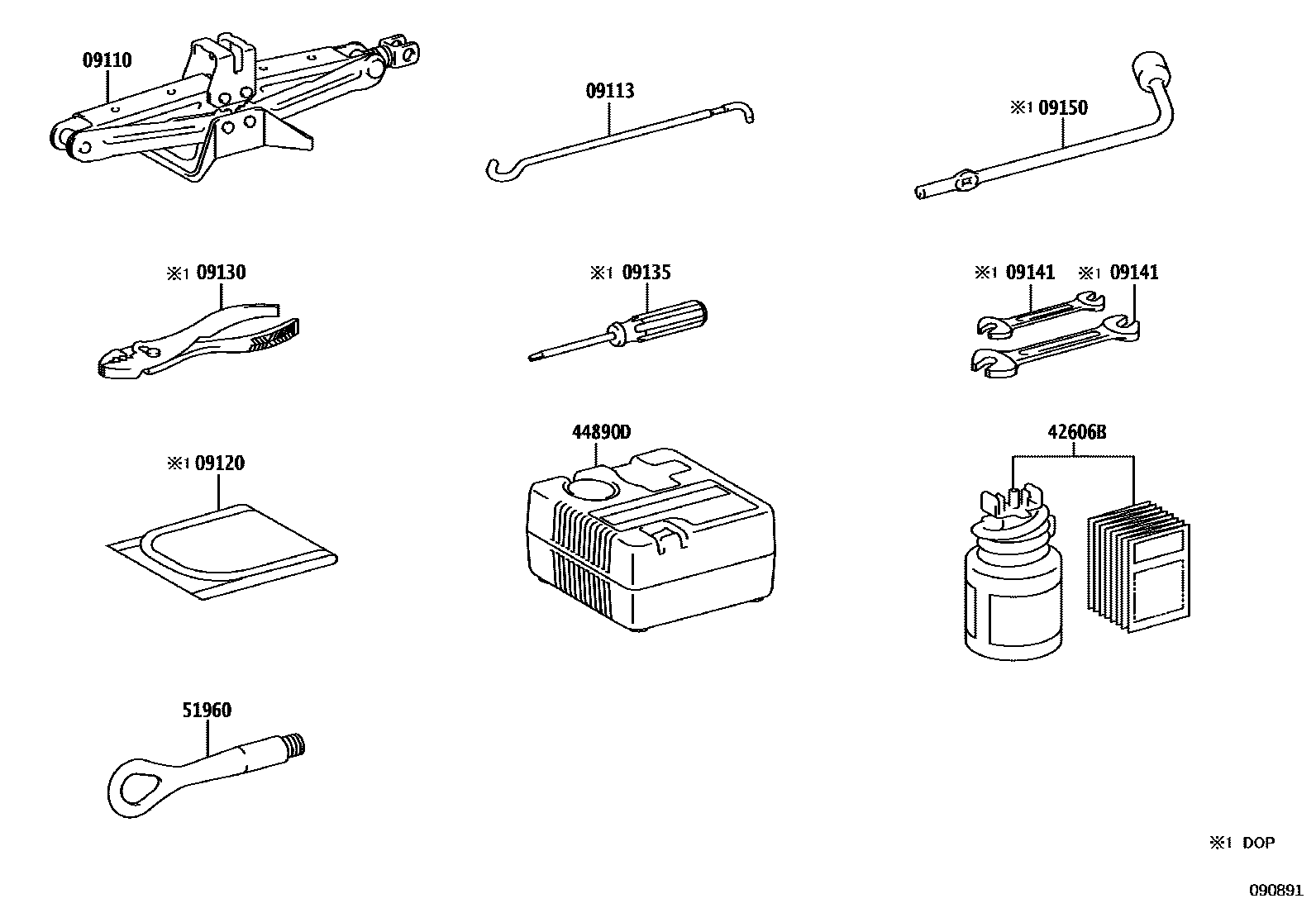

STANDARD TOOL

09110JACK ASSY

main09111-48021iGGL26,GYL26201908-202108

main09111-48022iGGL26,GYL26202109

09113HANDLE, JACK

main09113-42030iGGL26,GYL26201908

09120BAG, TOOL

main09120-48010iGGL26,GYL26201908

TOOL(DEALERSHIP OPTION)-WITH(*SPSB),TYPE A:REFER ILLUST.

09130PLIERS

main09130-50040iGGL26,GYL26201712-201908

TOOL(DEALERSHIP OPTION)-WITH(*SPSB)

09135DRIVER, SCREW

main09135-50060iGGL26,GYL26201908

TOOL(DEALERSHIP OPTION)-WITH(*SPSB)

09141SPANNER

main09141-60010iGGL26,GYL26201908

8 X 10,TOOL(DEALERSHIP OPTION)-WITH(*SPSB)

main09141-60020iGGL26,GYL26201712-201908

12 X 14,TOOL(DEALERSHIP OPTION)-WITH(*SPSB)

09150WRENCH, HUB NUT BOX

main09150-30020iGGL26,GYL26201712-201908

42606BREPAIR KIT, TUBELESS TIRE

44890DCOMPRESSOR ASSY, AIR

main44890-48060iGYL26201803-201908

main44890-48061iGGL26202110

ADRIA(SLOVENIA) SPEC&SPARE TIRE-WITHOUT(REPAIR KIT ONLY)

sub44890-48062

51960HOOK ASSY, FRONT

main51961-48070×2iGGL26,GYL26201712-201908

10 parts on this diagram · 1 diagram in section
