WIRELESS DOOR LOCK

89740ARECEIVER ASSY, SMART DOOR CONTROL

main89740-48170iAGL2#,GGL25,GYL25201509-202007

main89740-48370iAGL2#,GGL25,GYL25202007-202205

main89740-48371iAGL2#,GGL25,GYL25202206

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040iAGL2#,GGL25,GYL25201509-201908

89990ACOMPUTER ASSY, SMART KEY

main89990-48430iAGL2#,GGL25201509-201711

main89990-48431iAGL2#,GGL25201712-201908

main89990-48450iGYL25201510-201711

main89990-48451iGYL25201712-201908

main89990-48670iAGL2#,GGL25201908-202007

main89990-48680iGYL25201908-202007

main89990-48850iAGL2#,GGL25202109

main89990-48860iGYL25202109-202207

main89990-48861iGYL25202208

main89990-48870iAGL2#,GGL25202007-202109

main89990-48880iGYL25202007-202109

89997ANTENNA, ELECTRICAL KEY

main89997-30100iAGL2#,GGL25,GYL25201509-201908

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-47010iAGL2#,GGL25,GYL25201509-201908

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-47010iAGL2#,GGL25,GYL25201509-201908

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-48010iAGL2#,GGL25,GYL25201509-201908

9011906915

main90119-06915

9011906A07

main90119-06A07

9017906274

main90179-06274

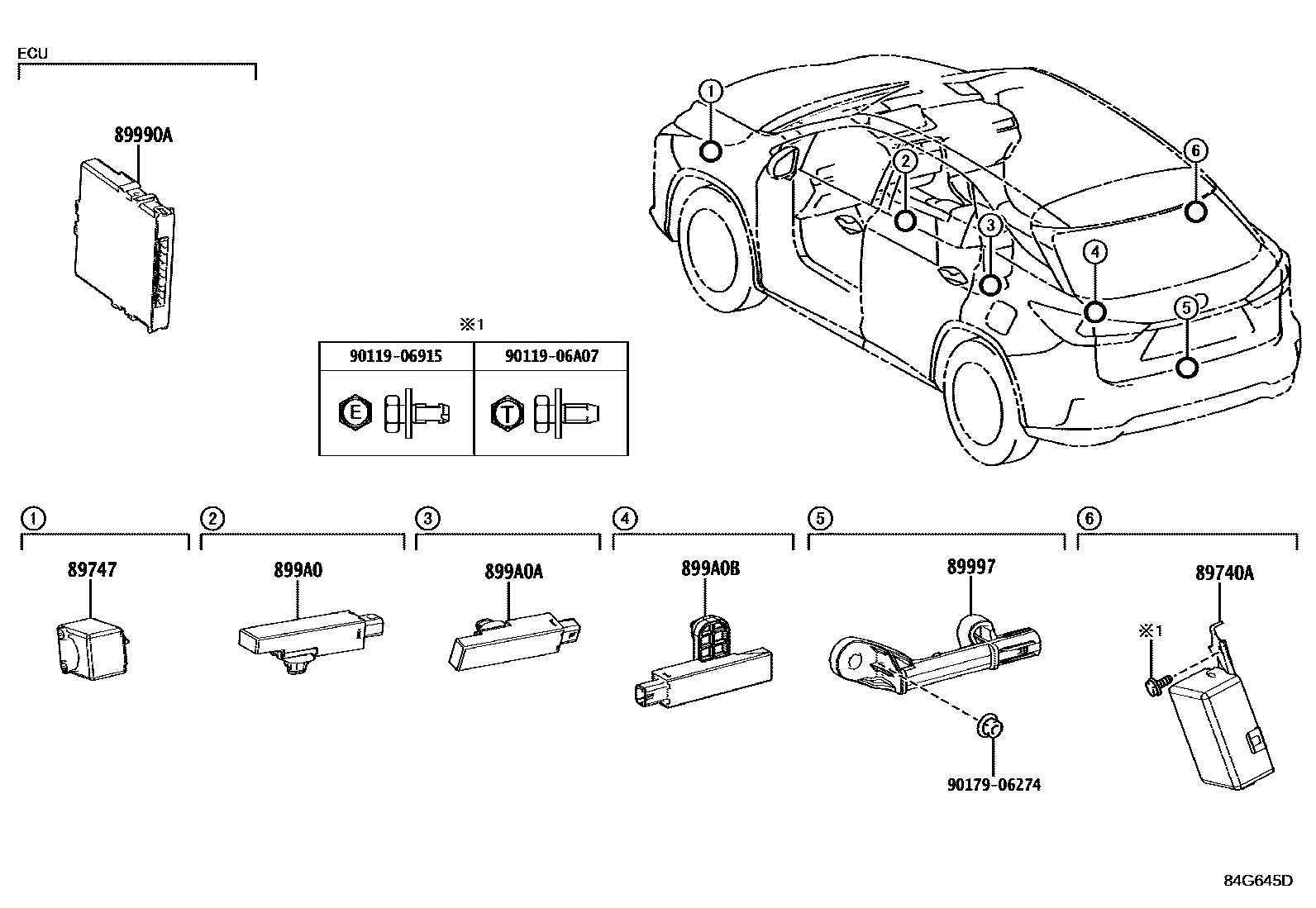

10 parts on this diagram · 1 diagram in section
