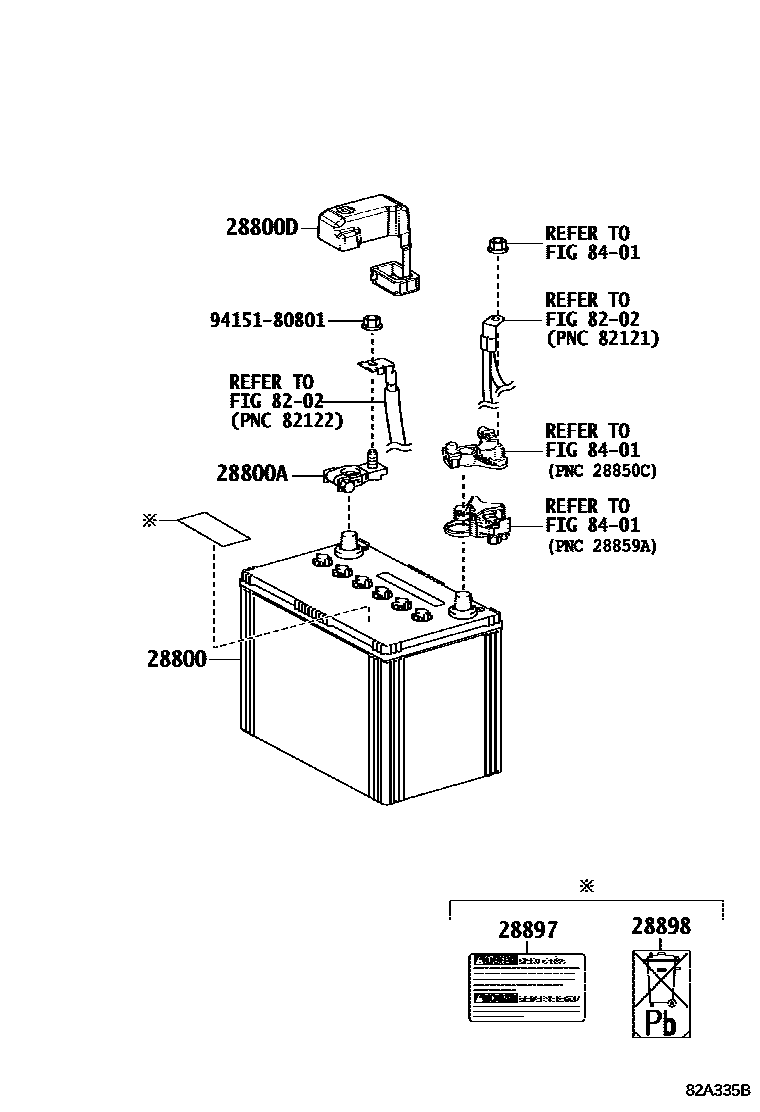

BATTERY & BATTERY CABLE

0001 1 0002 1 0003 112V BATTERY 0004 1HV BATTERY 0005 1HV BATTERY 0006 1HV BATTERY

28800BATTERY

main28800-36131i2GRFXS..GYL25201510-202305

LN2

sub28800-36132

main28800-36150i8ARFTS..AGL2#201509-202302

T-115

sub28800-36151

main28800-38080i2GRFKS..GGL25201509-202208

80D26L

sub28800-38081

28800ATERMINAL, BATTERY POSITIVE

main90982-05054i2GRFXS..GYL25201510-201908

main90982-05056i8ARFTS,2GRFKS..AGL2#,GGL25201509-201908

28800DCOVER, CONNECTOR(FOR BATTERY TERMINAL)

main82821-33360i8ARFTS..AGL2#201509-201908

main82821-48250i2GRFKS..GGL25201712-201908

28897PLATE, BATTERY CAUTION

main28897-31040i8ARFTS,2GRFXS..AGL2#,GYL25..LHD201509-201803

RUSSIA,BELARUS,KAZAKHSTAN SPEC

main28897-38070i8ARFTS,2GRFXS..AGL2#,GYL25..LHD201908

ARMENIA SPEC

main28897-38070i8ARFTS,2GRFXS..AGL2#,GYL25..LHD201803-201908

BELARUS SPEC

main28897-38070i8ARFTS,2GRFXS..AGL2#,GYL25..LHD201803-201908

KAZAKHSTAN SPEC

main28897-38070i8ARFTS,2GRFXS..AGL2#,GYL25..LHD201803-201908

RUSSIA,BELARUS,KAZAKHSTAN SPEC

28898PLATE, BATTERY

main28898-46020i2GRFXS..GYL25201509-201908

8202

8401

9415180801

main94151-80801

8 parts on this diagram · 6 diagrams in section
