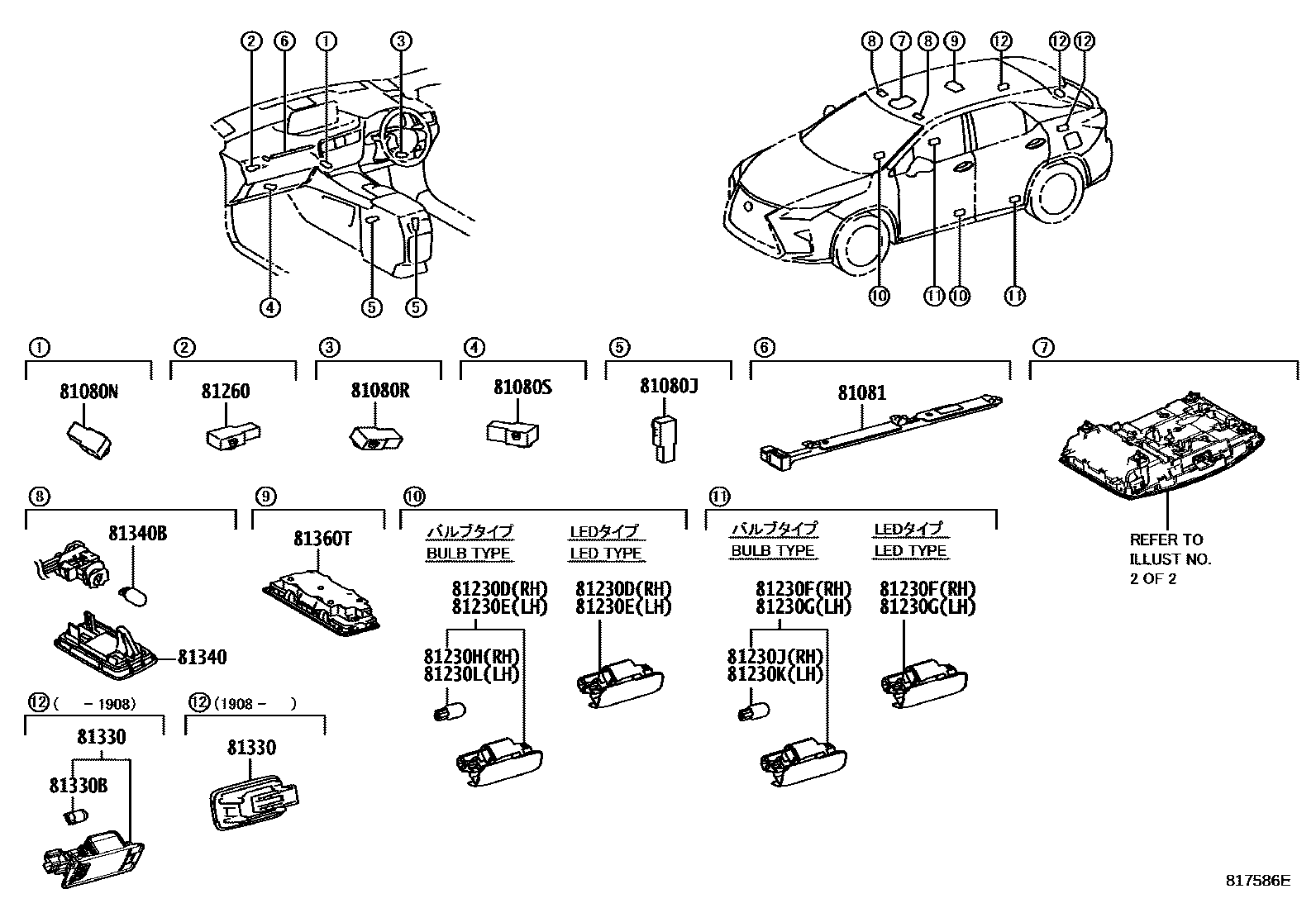

INTERIOR LAMP
81080JLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080NLAMP ASSY, INTERIOR ILLUMINATION, NO.1
81080RLAMP ASSY, INTERIOR ILLUMINATION, NO.1 RH
81080SLAMP ASSY, INTERIOR ILLUMINATION, NO.1 LH
81230DLAMP ASSY, FRONT DOOR COURTESY, RH
BULB TYPE
81230ELAMP ASSY, FRONT DOOR COURTESY, LH
BULB TYPE
81230FLAMP ASSY, REAR DOOR COURTESY, RH
BULB TYPE
81230GLAMP ASSY, REAR DOOR COURTESY, LH
BULB TYPE
81230HBULB(FOR FRONT DOOR COURTESY LAMP RH)
12V 5W
81230JBULB(FOR REAR DOOR COURTESY LAMP RH)
12V 5W
12V 5W,SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)
12V 5W,SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER
12V 5W,SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR
12V 5W,SPEAKER-12SPEAKER
12V 5W,SPEAKER-15SPEAKER & *MAR
81230KBULB(FOR REAR DOOR COURTESY LAMP LH)
12V 5W
81230LBULB(FOR FRONT DOOR COURTESY LAMP LH)
12V 5W
81260LAMP ASSY, GLOVE BOX
81330LAMP ASSY, LUGGAGE COMPARTMENT, NO.1
81330BBULB, LUGGAGE COMPARTMENT LAMP
12V 5W
81340LAMP ASSY, VANITY
81340BBULB (FOR VANITY LAMP)
12V 8W
81360TLAMP ASSY, SPOT
ECRU,TRIM00,01,02,03,04,5#,6#
MOON STONE,TRIM1#,20,21,22,23,24,4#,8#
MOON STONE,TRIM20,21,22,23,24,4#
19 parts on this diagram · 3 diagrams in section
