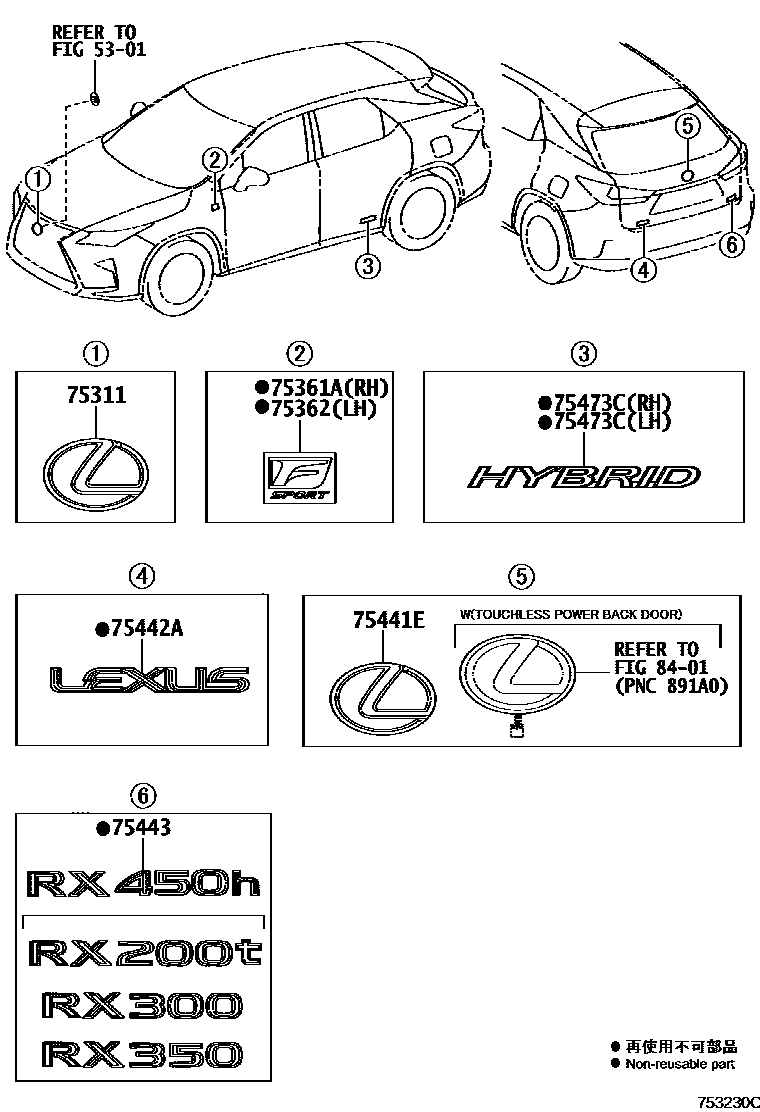

EMBLEM & NAME PLATE (EXTERIOR & INTERIOR)

0001 1 0002 1

5301

75311EMBLEM, RADIATOR GRILLE (OR FRONT PANEL)

main53141-30490iGGL25201806-201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main53141-30500iGYL25201806-201908

main53141-33170iGGL25201908

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

main53141-33180iGYL25201908

main53141-48100iAGL2#201712-201805

ACTIVE SAFETY PACKAGE-LEXUS SAFETY SYSTEM +

sub53141-30490

main53141-48110iGYL25201712-201805

sub53141-30500

main90975-02107iAGL2#201908

ACTIVE SAFETY PACKAGE-WITHOUT

main90975-02125iAGL2#201509-201908

main90975-02126iGYL25201510-201712

75361APLATE, FRONT FENDER NAME, NO.1

75362PLATE, FRONT FENDER NAME, NO.2

main75362-48060

75441EPLATE, BACK DOOR NAME, NO.1

main75403-48020iAGL2#,GGL25201509-201711

main75403-48040iGYL25201510-201908

main75403-48050iAGL2#,GGL25201712-201908

sub75403-48020

75442APLATE, BACK DOOR NAME, NO.2

main75442-48150iGGL25201509-201908

LEXUS,AZERBAIJAN SPEC

main75442-48150iGGL25201509-201908

LEXUS,ADRIA(SLOVENIA) SPEC

main75442-48150iGGL25201509-201908

LEXUS,SERBIA SPEC

main75442-48150iGGL25201509-201908

LEXUS

main75442-48150iGGL25201509-201908

LEXUS,UKRAINE SPEC

main75442-48150iGGL25201509-201908

LEXUS,GEORGIA SPEC

main75442-48150iGGL25201509-201908

LEXUS,ARMENIA SPEC

main75442-48150iGGL25201908

LEXUS,BELARUS SPEC

main75442-48150iGGL25201908

LEXUS,KAZAKHSTAN SPEC

main75442-48150iGGL25201908

LEXUS,MONGOLIA SPEC

main75442-48160iGGL25201509-201908

LEXUS,RUSSIA,BELARUS,KAZAKHSTAN SPEC

main75442-48160iAGL2#,GYL25..LHD201509-201908

LEXUS

75443PLATE, BACK DOOR NAME, NO.3

main75443-48110iGYL25201510-201908

RX450H

main75443-48210iAGL2#201509-201712

RX200T

main75443-48220iGGL25201509-201908

RX350

main75443-48280iAGL2#201712-201908

RX300

75473CPLATE, BODY SIDE NAME

main75473-48090iGYL25201510-201908

RH

main75473-48110iGYL25201510-201908

LH

8401

9 parts on this diagram · 2 diagrams in section
