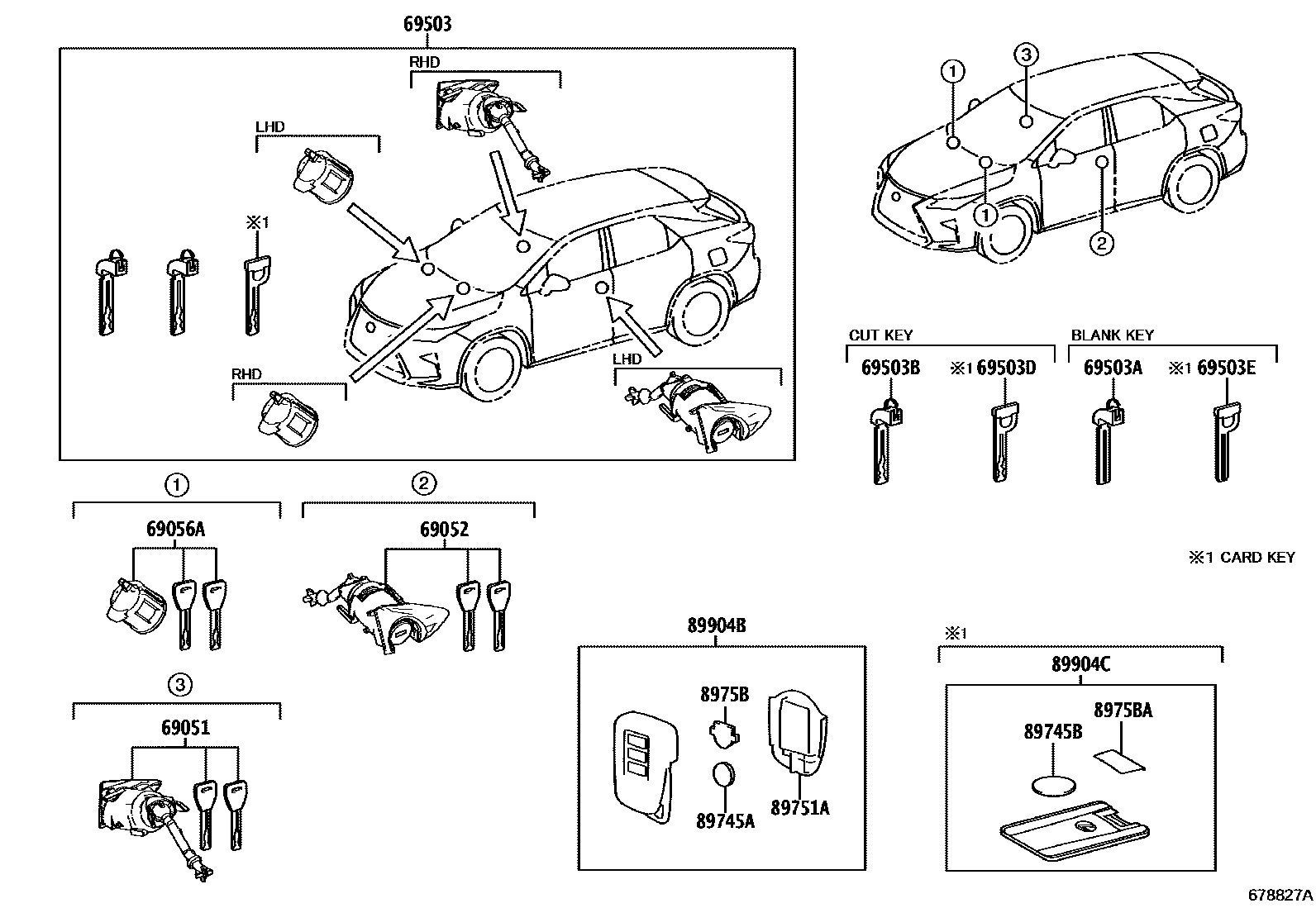

LOCK CYLINDER SET
69051CYLINDER & KEY SET, DOOR LOCK, RH
69052CYLINDER & KEY SET, DOOR LOCK, LH
69056ACYLINDER & KEY SET, GLOVE COMPARTMENT LOCK
69503CYLINDER SET, LOCK
69503AKEY, BLANK
MASTER KEY,W(*68)
69503BKEY, CUT
MASTER KEY,W(*68)
69503DKEY, CUT(CARD KEY)
69503EKEY, BLANK(CARD KEY)
MASTER KEY
89745ABATTERY, TRANSMITTER
CR2032
89745BBATTERY, TRANSMITTER(CARD KEY)
89751ACOVER, TRANSMITTER HOUSING
8975BCOVER, TRANSMITTER BATTERY HOUSING
8975BACOVER, TRANSMITTER BATTERY HOUSING(CARD KEY)
89904BTRANSMITTER SUB-ASSY, ELECTRICAL KEY
REUNION SPEC,TYPE B:REFER ILLUST.
RUSSIA,BELARUS,KAZAKHSTAN SPEC,TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
sub89904-48K91
AZERBAIJAN SPEC
ADRIA(SLOVENIA) SPEC
BELARUS SPEC
KAZAKHSTAN SPEC
SERBIA SPEC
UKRAINE SPEC
GEORGIA SPEC
ARMENIA SPEC
TYPE B:REFER ILLUST.
TYPE B:REFER ILLUST.
89904CTRANSMITTER SUB-ASSY, ELECTRICAL KEY(CARD KEY)
15 parts on this diagram · 1 diagram in section
