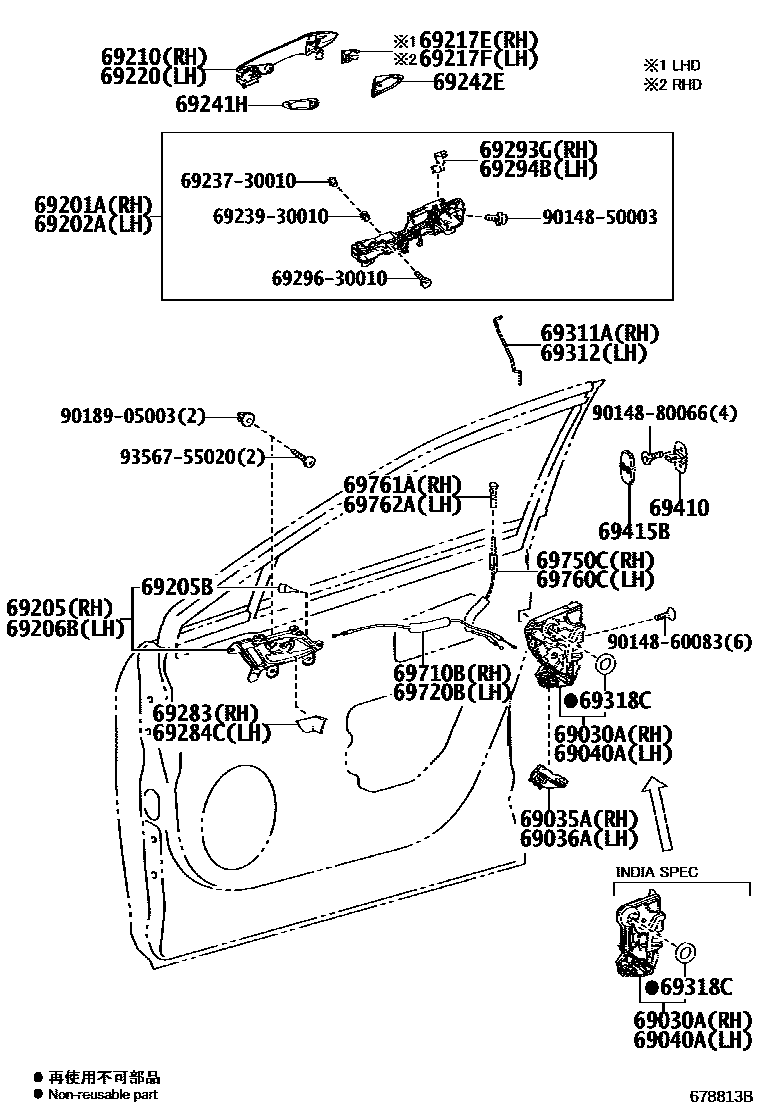

FRONT DOOR LOCK & HANDLE
69030ALOCK ASSY, FRONT DOOR W/MOTOR, RH
INDIA SPEC
69035ACOVER SUB-ASSY, FRONT DOOR LOCK, RH
69036ACOVER SUB-ASSY, FRONT DOOR LOCK, LH
69040ALOCK ASSY, FRONT DOOR W/MOTOR, LH
INDIA SPEC
69201AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, RH
IRELAND SPEC
69202AFRAME SUB-ASSY, FRONT DOOR OUTSIDE HANDLE, LH
SERBIA SPEC
69205HANDLE SUB-ASSY, FRONT DOOR INSIDE, RH
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM04,5#,6#
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM04,5#
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
69205BCUSHION(FOR FRONT DOOR INSIDE HANDLE)
69206BHANDLE SUB-ASSY, FRONT DOOR INSIDE, LH
BLACK,TRIM2#,4#
NOBLE BROWN,TRIM0#,5#,6#
22MY WESTERN EUROPE SE 2ROWS&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM04,1#,2#,3#,4#,5#,6#,8#
22MY EASTERN EUROPE&MIDDLE EAST SE 2ROW&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP),NOBLE BROWN,TRIM04
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-15SPEAKER & *MAR,BLACK,TRIM05,06,2#,3#,4#
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM0#,5
"VERSION L"*(L)&SUN SHADE-WITH&DOOR TRIM-WOOD PANEL & WITH(ILLUMINATION LAMP)&SEATCOVER MATERIAL-NATURAL LEATHER(SEMIANILIN),BLACK,TRIM0#,1#,2#,3#,4#,5#,6#,8#
SEAT COVER MATERIAL-NATURAL LEATHER(SMOOTH)&SPEAKER-12SPEAKER,NOBLE BROWN,TRIM00,01,02,03,04
69210HANDLE ASSY, FRONT DOOR, OUTSIDE RH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SERBIA SPEC,MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SERBIA SPEC,SONIC TITANIUM,1J7
ADRIA(SLOVENIA) SPEC,SONIC CHROME,1L1
SONIC IRIDIUM,1L2
KAZAKHSTAN SPEC,BLACK,212
GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
ARMENIA SPEC,ICE ECRU M.M.,4X8
KAZAKHSTAN SPEC,TERRANE KHAKI M.M.,6X4
DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,8X1
69217ECOVER, FRONT DOOR OUTSIDE HANDLE, RH
69217FCOVER, FRONT DOOR OUTSIDE HANDLE, LH
69220HANDLE ASSY, FRONT DOOR OUTSIDE, LH
WHITE NOVA GF.,083
SONIC QUARTZ,085
SERBIA SPEC,MERCURY GRAY MC.,1H9
PLATINUM SILVER ME.,1J4
SERBIA SPEC,SONIC TITANIUM,1J7
SONIC CHROME,1L1
SONIC IRIDIUM,1L2
KAZAKHSTAN SPEC,BLACK,212
AZERBAIJAN SPEC,GRAPHITE BLACK GF.,223
RED MC.CS.,3R1
SLEEK ECRU ME.,4U7
AMBER CS.,4X2
ARMENIA SPEC,ICE ECRU M.M.,4X8
KAZAKHSTAN SPEC,TERRANE KHAKI M.M.,6X4
UKRAINE SPEC,DEEP BLUE MC.,8X5
HEAT BLUE CONTRAST LAYERI,8X1
69241HPAD, FRONT DOOR OUTSIDE HANDLE, FRONT
RH
LH
69242EPAD, FRONT DOOR OUTSIDE HANDLE, REAR
RH
LH
69283PLUG, FRONT DOOR INSIDE HANDLE BEZEL, RH
BLACK,TRIM04,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04
69284CPLUG, FRONT DOOR INSIDE HANDLE BEZEL, LH
BLACK,TRIM04,2#,4#,5#,6#
NOBLE BROWN,TRIM00,01,02,03,04,5#,6#
69293GSNAP, FRONT DOOR OUTSIDE HANDLE, RH
69294BSNAP, FRONT DOOR OUTSIDE HANDLE, LH
69311AROD, FRONT DOOR LOCK OPEN, RH
69312ROD, FRONT DOOR LOCK OPEN, LH
69318CSEAL, DOOR LOCK WIRING HARNESS
69410PLATE ASSY, FRONT DOOR LOCK STRIKER
69415BCOVER, DOOR LOCK STRIKER, FRONT
69710BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, RH
69720BCABLE ASSY, FRONT DOOR LOCK REMOTE CONTROL, LH
69750CCABLE ASSY, FRONT DOOR INSIDE LOCKING, RH
69760CCABLE ASSY, FRONT DOOR INSIDE LOCKING LH
69761ABEZEL, DOOR LOCK CONTROL KNOB, RH
69762ABEZEL, DOOR LOCK CONTROL KNOB, LH
6923730010RETAINER, DOOR OUTSIDE HANDLE
main69237-30010
6923930010PIN, BACK DOOR OUTSIDE HANDLE
main69239-30010
6929630010SCREW, DOOR INSIDE HANDLE
main69296-30010
9014850003
main90148-50003
9014860083
main90148-60083
9014880066
main90148-80066
9018905003
main90189-05003
9356755020
main93567-55020
38 parts on this diagram · 1 diagram in section
