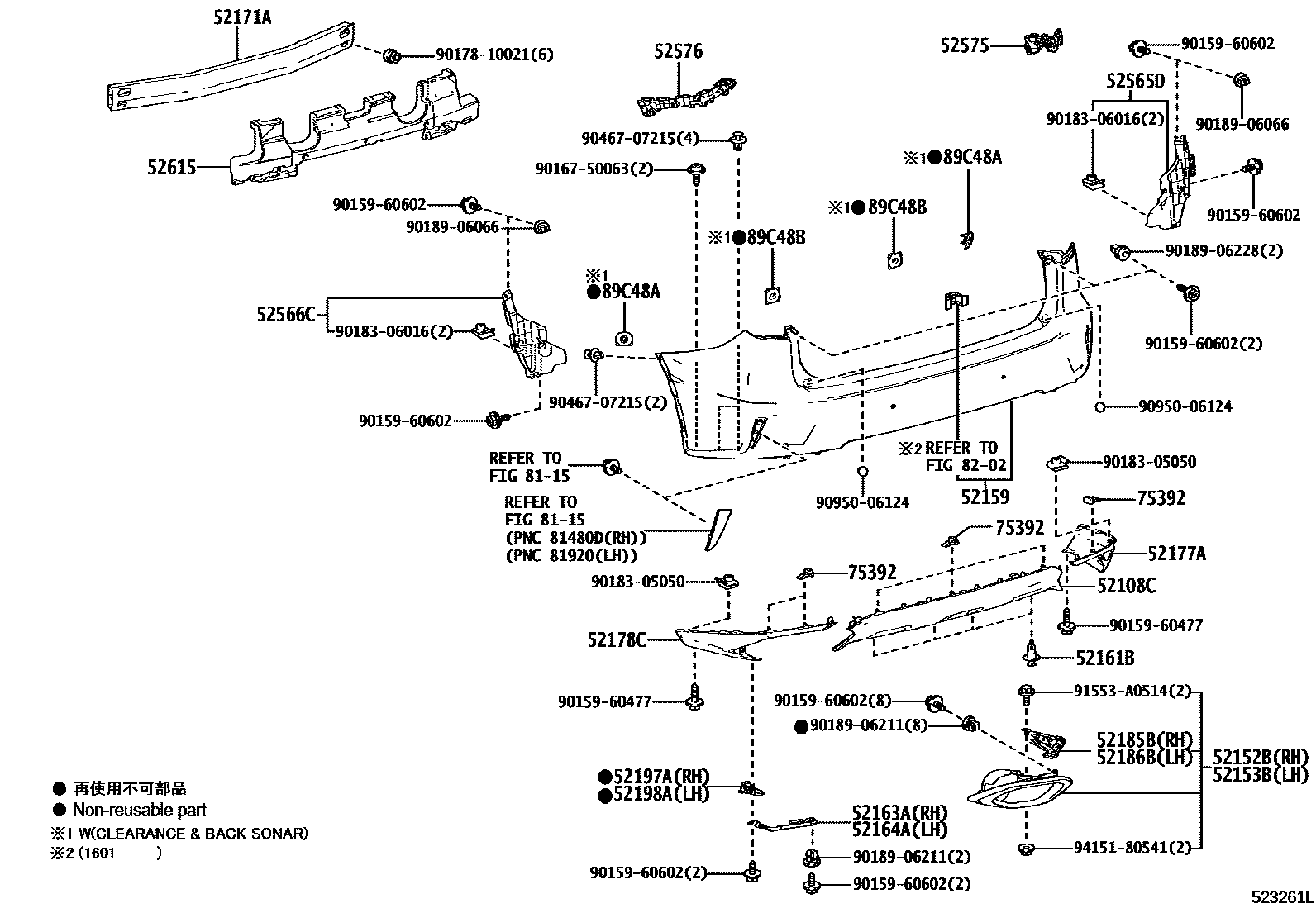

REAR BUMPER & BUMPER STAY

0001 1 0002 1F SPORT 0003 1 0004 1 0005 1

52108CEXTENSION SUB-ASSY, REAR BUMPER, CENTER

main52108-48010iAGL2#,GGL25¥13,600201509-201908

NO PAINT REQ.

main52108-48030iGYL25¥21,600201510-201908

NO PAINT REQ.

main52108-48070iAGL2#,GGL25¥23,900201908

NO PAINT REQ.

52152BEXTENSION, REAR BUMPER, RH

main52106-48020iAGL2#,GGL25¥7,800201509-201908

52153BEXTENSION, REAR BUMPER, LH

main52107-48020iAGL2#,GGL25¥7,600201509-201908

52159COVER, REAR BUMPER

main52159-48924iAGL2#,GGL25,GYL25201509-201908

PAINT REQ.

main52159-48944iAGL2#,GGL25,GYL25¥51,900201908

PAINT REQ.

52161BPIECE, REAR BUMPER

main52161-16010iAGL2#,GGL25,GYL25¥120201509-201908

sub52161-0K040¥120

52163APLATE, REAR BUMPER, RH

main52163-48020iAGL2#,GGL25¥1,040201509-201908

52164APLATE, REAR BUMPER, LH

main52164-48020iAGL2#,GGL25¥1,040201509-201908

52171AREINFORCEMENT, REAR BUMPER, NO.1

main52171-48220iAGL2#,GGL25,GYL25¥18,100201509-201908

52177ARETAINER, REAR BUMPER EXTENSION, RH

main52177-48010iAGL2#,GGL25¥3,850201509-201908

main52177-48020iAGL2#,GGL25¥4,860201908

52178CRETAINER, REAR BUMPER EXTENSION, LH

main52178-48010iAGL2#,GGL25¥3,850201509-201908

main52178-48020iAGL2#,GGL25¥4,860201908

52185BBRACKET, REAR BUMPER SIDE MOUNTING, RH

main52185-48050iAGL2#,GGL25¥820201509-201908

52186BBRACKET, REAR BUMPER SIDE MOUNTING, LH

main52186-48030iAGL2#,GGL25¥820201509-201908

52197ABRACKET, REAR BUMPER SEAL, RH

main52197-48020iAGL2#,GGL25¥610201509-201908

52198ABRACKET, REAR BUMPER SEAL, LH

main52198-48010iAGL2#,GGL25¥610201509-201908

52565DRETAINER, REAR BUMPER, LOWER RH

main52565-48040iAGL2#,GGL25,GYL25¥5,400201509-201908

52566CRETAINER, REAR BUMPER, LOWER LH

main52566-48030iAGL2#,GGL25,GYL25¥5,400201509-201908

52575RETAINER, REAR BUMPER SIDE, RH

main52575-48050iAGL2#,GGL25,GYL25¥4,040201509-201908

52576RETAINER, REAR BUMPER SIDE, LH

main52576-48050iAGL2#,GGL25,GYL25¥4,040201509-201908

52615ABSORBER, REAR BUMPER ENERGY

main52615-48181iAGL2#,GGL25,GYL25201509-201908

main52615-48280iAGL2#,GGL25,GYL25201908

75392RETAINER, OUTSIDE MOULDING

main75392-35220iAGL2#,GGL25,GYL25¥130201509-201908

8115

8202

89C48ARETAINER, ULTRASONIC SENSOR, REAR CORNER

89C48BRETAINER, ULTRASONIC SENSOR, REAR CENTER

9015960477

main90159-60477¥70

9015960602

main90159-60602¥60

9016750063

main90167-50063¥60

9017810021

main90178-10021¥100

9018305050

main90183-05050¥70

9018306016

main90183-06016¥80

9018906066

main90189-06066¥80

9018906211

main90189-06211¥80

9018906228

main90189-06228¥70

9046707215

main90467-07215¥80

9095006124

main90950-06124¥90

91553A0514

main91553-A0514¥90

9415180541

main94151-80541¥90

37 parts on this diagram · 5 diagrams in section
