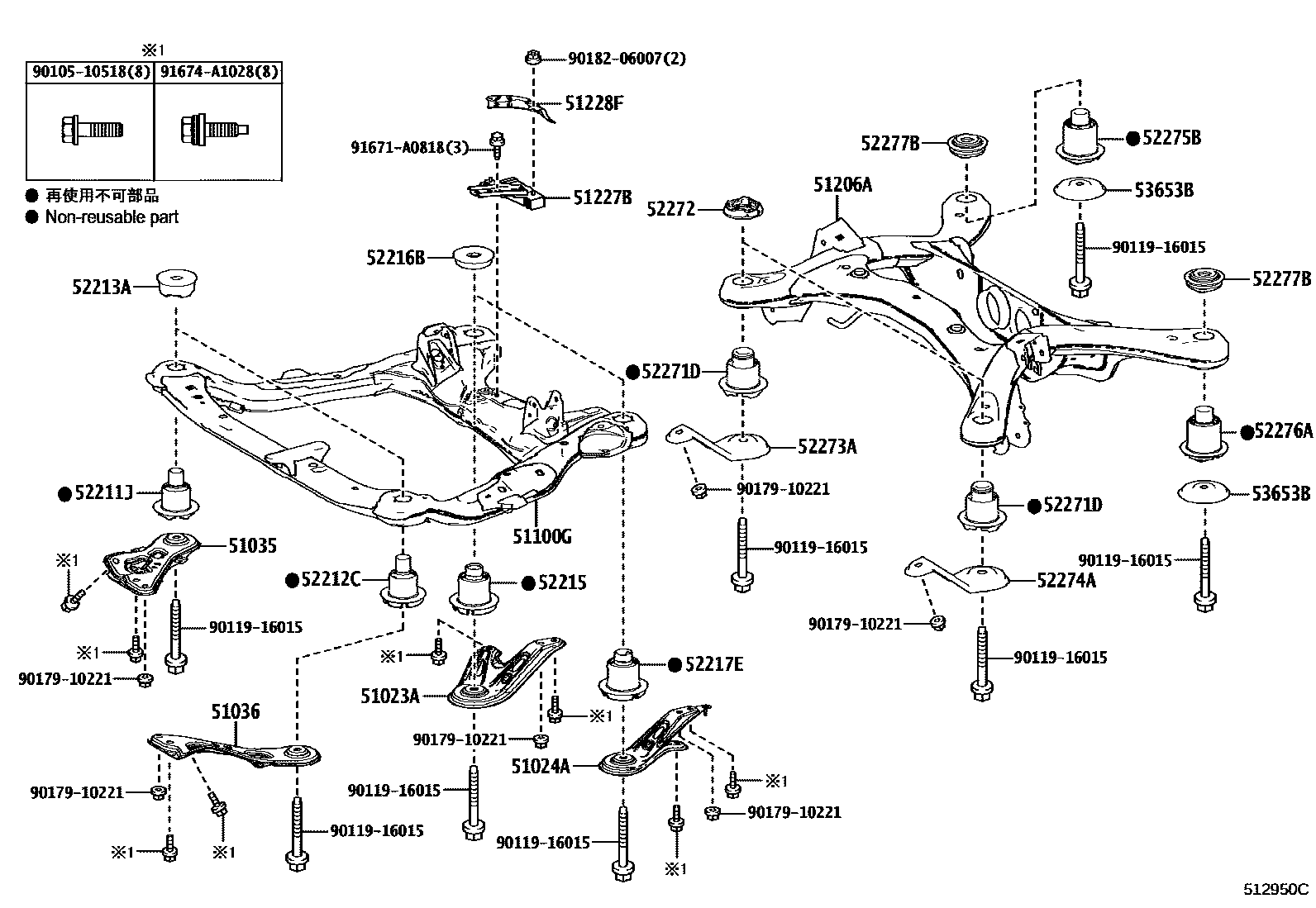

SUSPENSION CROSSMEMBER & UNDER COVER

0001 1SUSPENSION CROSS MEMBER 0002 1SUSPENSION CROSS MEMBER 0003 1SUSPENSION CROSS MEMBER 0004 1SUSPENSION CROSS MEMBER 0005 1UNDER COVER 0006 1UNDER COVER 0007 1UNDER COVER 0008 1UNDER COVER

51023ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, RH

main51023-48030iAGL2#,GGL25,GYL25201509-201908

51024ABRACKET SUB-ASSY, FRONT SUSPENSION MEMBER, LH

main51024-48040iAGL2#,GGL25,GYL25201509-201908

51035PLATE SUB-ASSY, FRAME SIDE RAIL, RH

main51035-48040iAGL2#,GGL25,GYL25201509-201908

51036PLATE SUB-ASSY, FRAME SIDE RAIL, LH

main51036-48040iAGL2#,GGL25,GYL25201509-201908

51100GFRAME ASSY, FRONT

main51100-48091iAGL2#,GGL25,GYL25201509-202005

sub51100-48092

main51100-48092iAGL2#,GGL25,GYL25202006

51206AMEMBER SUB-ASSY, REAR SUSPENSION

main51206-48082iAGL2#,GGL25201509-201908

main51206-48091iGYL25201510-201908

51227BDAMPER, FRONT SUSPENSION MEMBER DYNAMIC

main51227-48161iAGL2#201509-201908

main51227-48180iAGL2#201811-201908

main51227-48190iAGL20,GYL25201908

51228FPLATE, FRONT SUSPENSION MEMBER DUMPER

main51228-48021iAGL2#,GYL25201509-201908

52211JCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52211-48010iAGL2#,GGL25,GYL25201509-201908

52212CCUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT LH

main52211-48010iAGL2#201811-201908

main52212-48010iGGL25,GYL25201509-201902

sub52212-48011

main52212-48011iGGL25,GYL25201903-201908

52213ASTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, FRONT

main52213-48010iAGL2#,GGL25,GYL25201509-201908

52215CUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52215-48010iAGL2#,GGL25,GYL25201509-201908

52216BSTOPPER, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR

main52216-48010iAGL2#,GGL25,GYL25201509-201908

52217ECUSHION, FRONT SUSPENSION MEMBER BODY MOUNTING, REAR LH

main52217-48030iAGL2#,GGL25,GYL25201509-201908

52271DCUSHION, REAR SUSPENSION MEMBER BODY MOUNTING, FRONT

main52271-48030iAGL2#,GGL25,GYL25201509-201908

52272STOPPER, REAR SUSPENSION MEMBER, UPPER

main52272-48020iAGL2#,GGL25,GYL25201509-201908

52273ASTOPPER, REAR SUSPENSION MEMBER, LOWER RH

main52273-48010iAGL2#,GGL25,GYL25201509-201908

52274ASTOPPER, REAR SUSPENSION MEMBER, LOWER LH

main52273-48010iGYL25201510-201908

main52274-48010iAGL2#,GGL25201509-201908

52275BCUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR RH

main52275-48021iAGL2#,GGL25,GYL25201509-201908

52276ACUSHION, REAR SUSPENSION MEMBER BODY MOUNT, REAR LH

main52276-48011iAGL2#,GGL25,GYL25201509-201908

52277BSTOPPER, REAR SUSPENSION MEMBER, REAR UPPER

main52277-48020iAGL2#,GGL25,GYL25201509-201908

53653BBRACE, REAR SUSPENSION, LOWER

main53653-48010iAGL2#,GGL25,GYL25201509-201908

9010510518

main90105-10518

9011916015

main90119-16015

9017910221

main90179-10221

9018206007

main90182-06007

91671A0818

main91671-A0818

91674A1028

main91674-A1028

28 parts on this diagram · 8 diagrams in section
