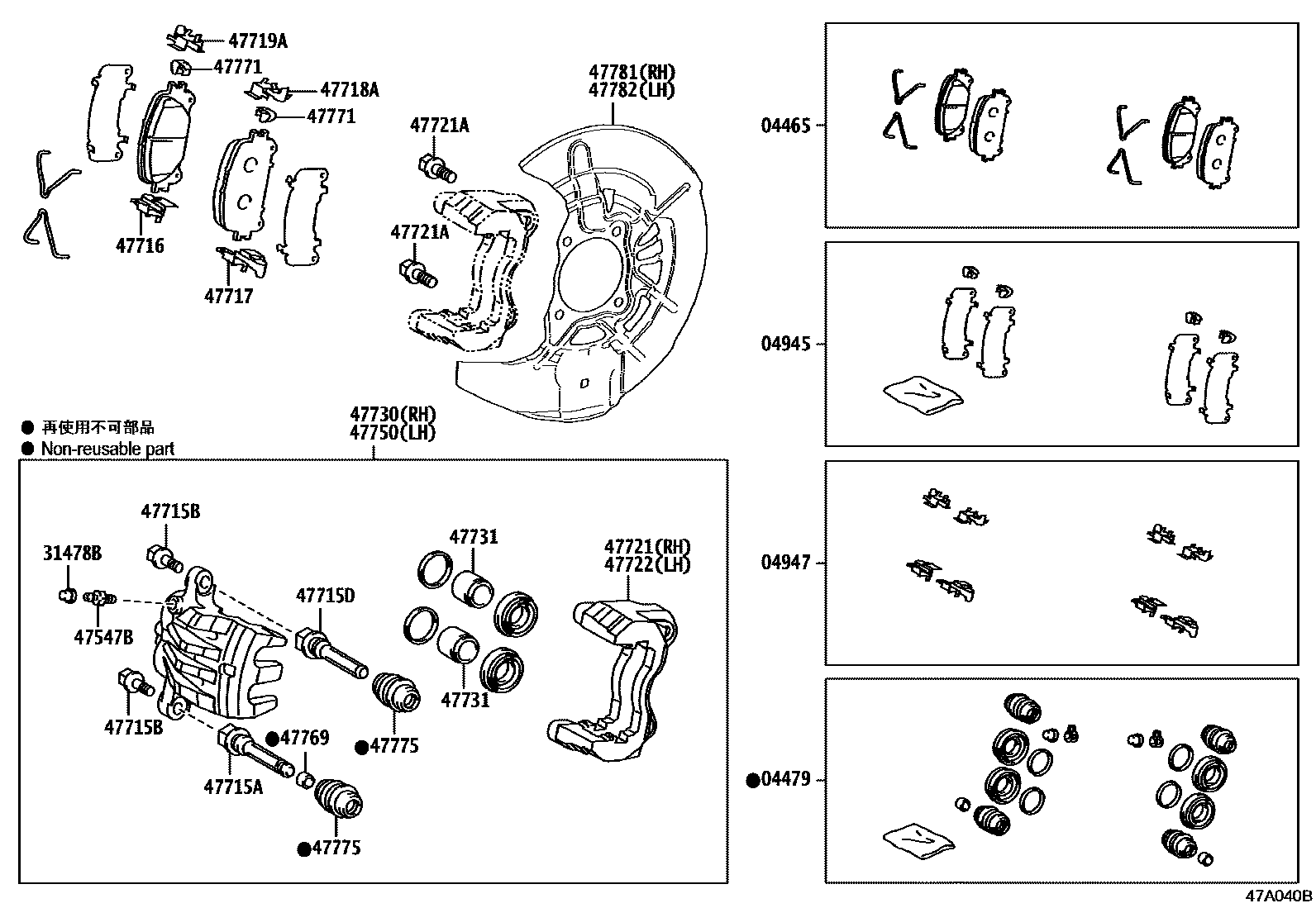

FRONT DISC BRAKE CALIPER & DUST COVER
04465PAD KIT, DISC BRAKE, FRONT
MARK ADVICS PV565H,UKRAINE SPEC
MARK ADVICS PV565H,GEORGIA SPEC
MARK ADVICS PV565H,ARMENIA SPEC
MARK ADVICS PV565H,AZERBAIJAN SPEC
MARK ADVICS PV565H
MARK ADVICS PV565H,RUSSIA,BELARUS,KAZAKHSTAN SPEC
MARK AK NS380H
MARK AK NS380H,ADRIA(SLOVENIA) SPEC
MARK AK NS380H,SERBIA SPEC
MARK ADVICS VC084H
MARK ADVICS VC084H,RUSSIA,BELARUS,KAZAKHSTAN SPEC
MARK ADVICS VC084H,UKRAINE SPEC
MARK ADVICS VC084H,GEORGIA SPEC
MARK ADVICS VC084H,ARMENIA SPEC
MARK ADVICS VC084H,AZERBAIJAN SPEC
MARK ADVICS VC084H,BELARUS SPEC
MARK ADVICS VC084H,KAZAKHSTAN SPEC
MARK ADVICS VC084H,MONGOLIA SPEC
04479CYLINDER KIT, DISC BRAKE, FRONT
KAZAKHSTAN SPEC
RUSSIA,BELARUS,KAZAKHSTAN SPEC
UKRAINE SPEC
GEORGIA SPEC
ARMENIA SPEC
AZERBAIJAN SPEC
BELARUS SPEC
MONGOLIA SPEC
ADRIA(SLOVENIA) SPEC
SERBIA SPEC
04945SHIM KIT, ANTI SQUEAL, FRONT
UKRAINE SPEC
GEORGIA SPEC
ARMENIA SPEC
AZERBAIJAN SPEC
RUSSIA,BELARUS,KAZAKHSTAN SPEC
BELARUS SPEC
KAZAKHSTAN SPEC
MONGOLIA SPEC
ADRIA(SLOVENIA) SPEC
SERBIA SPEC
04947FITTING KIT, DISC BRAKE, FRONT
31478BCAP, BLEEDER PLUG(FOR FRONT DISC BRAKE)
47547BPLUG, BLEEDER(FOR FRONT DISC BRAKE)
47715APIN, FRONT DISC BRAKE CYLINDER SLIDE
47715BBOLT(FOR FRONT DISC BRAKE CYLINDER SLIDE)
47715DPIN, FRONT DISC BRAKE CYLINDER SLIDE, NO.2
47716PLATE, PAD SUPPORT, NO.1(FOR FRONT DISC BRAKE)
47717PLATE, PAD SUPPORT, NO.2(FOR FRONT DISC BRAKE)
47718APLATE, PAD SUPPORT, NO.3(FOR FRONT DISC BRAKE)
47719APLATE, PAD SUPPORT, NO.4(FOR FRONT DISC BRAKE)
47721MOUNTING, FRONT DISC BRAKE CYLINDER, RH
BELARUS SPEC
RUSSIA,BELARUS,KAZAKHSTAN SPEC
UKRAINE SPEC
GEORGIA SPEC
ARMENIA SPEC
AZERBAIJAN SPEC
KAZAKHSTAN SPEC
MONGOLIA SPEC
ADRIA(SLOVENIA) SPEC
SERBIA SPEC
47721ABOLT(FOR FRONT DISC BRAKE CYLINDER MOUNTING)
*14-1.5PX29.5-23
47722MOUNTING, FRONT DISC BRAKE CYLINDER, LH
ARMENIA SPEC
AZERBAIJAN SPEC
RUSSIA,BELARUS,KAZAKHSTAN SPEC
UKRAINE SPEC
GEORGIA SPEC
BELARUS SPEC
KAZAKHSTAN SPEC
MONGOLIA SPEC
SERBIA SPEC
ADRIA(SLOVENIA) SPEC
47730CYLINDER ASSY, FRONT DISC BRAKE, RH
GEORGIA SPEC
RUSSIA,BELARUS,KAZAKHSTAN SPEC
UKRAINE SPEC
ARMENIA SPEC
AZERBAIJAN SPEC
BELARUS SPEC
KAZAKHSTAN SPEC
MONGOLIA SPEC
ADRIA(SLOVENIA) SPEC
SERBIA SPEC
47731PISTON, FRONT DISC BRAKE
47750CYLINDER ASSY, DISC BRAKE, LH
ARMENIA SPEC
AZERBAIJAN SPEC
RUSSIA,BELARUS,KAZAKHSTAN SPEC
UKRAINE SPEC
GEORGIA SPEC
BELARUS SPEC
KAZAKHSTAN SPEC
MONGOLIA SPEC
SERBIA SPEC
ADRIA(SLOVENIA) SPEC
47769BUSH, CYLINDER SLIDE, NO.1(FOR FRONT DISC BRAKE)
47771PLATE, PAD WEAR INDICATOR, NO.1
47775BOOT, BUSH DUST(FOR FRONT DISC BRAKE)
47781COVER, DISC BRAKE DUST, FRONT RH
47782COVER, DISC BRAKE DUST, FRONT LH
24 parts on this diagram · 2 diagrams in section
