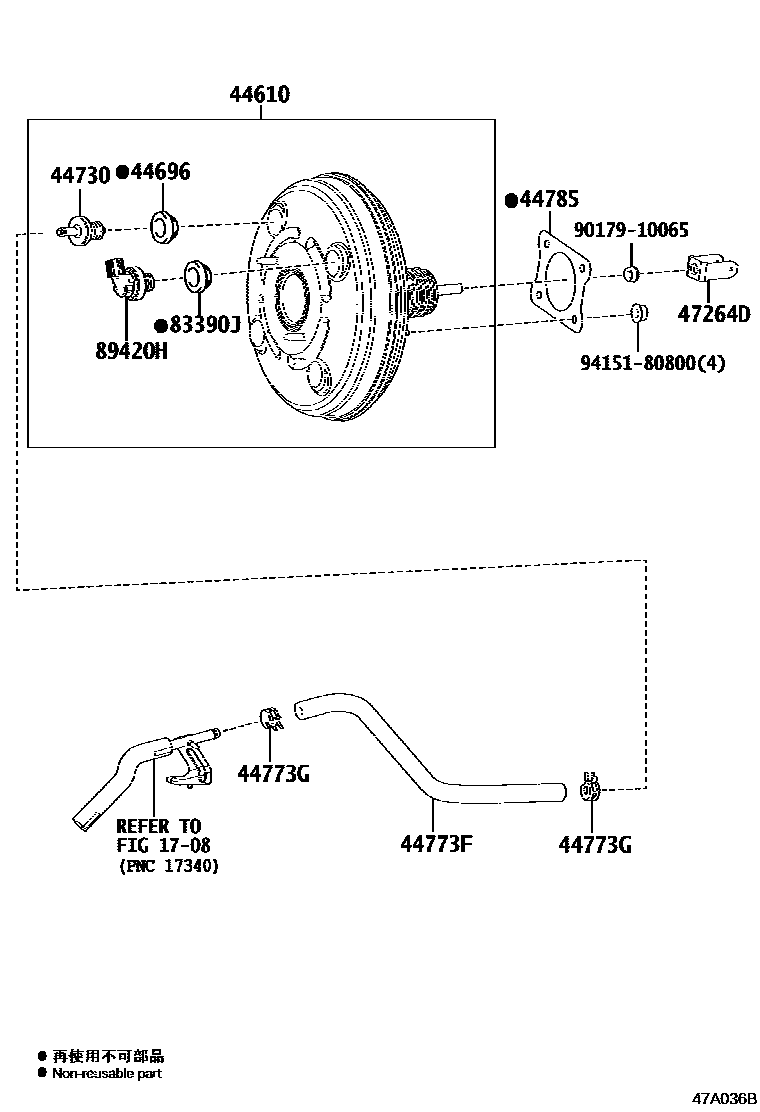

BRAKE BOOSTER & VACUUM TUBE

0001 1 0002 1 0003 1

1708

44610BOOSTER ASSY, BRAKE

main44610-48440iGGL25201509-201908

main44610-48451iAGL2#..LHD201509-201908

main44610-48461iAGL2#..RHD201509-201908

44696GROMMET, CHECK VALVE

main90480-24439iAGL2#,GGL25201509-201908

44730VALVE ASSY, VACUUM CHECK(FOR BRAKE)

main44730-20080iAGL2#201509-201908

main44730-60070iGGL25201509-201908

44773FHOSE, UNION TO CHECK VALVE

main44773-48210iGGL25201509-201908

main44773-48230iAGL2#..LHD201509-201908

44773GCLIP(FOR UNION TO CHECK VALVE HOSE)

main90467-16014iAGL2#,GGL25..LHD201509-201908

44785GASKET, BRAKE BOOSTER

main44785-12040iAGL2#,GGL25201509-201908

47264DCLEVIS, BRAKE MASTER CYLINDER PUSH ROD

main47264-22040iAGL2#,GGL25201509-201908

83390JGROMMET, VACUUM WARNING SWITCH

main90480-24439iAGL2#,GGL25201509-201908

89420HSENSOR ASSY, VACUUM

main89421-52020iAGL2#201509-201908

9017910065

main90179-10065

9415180800

main94151-80800

12 parts on this diagram · 3 diagrams in section
