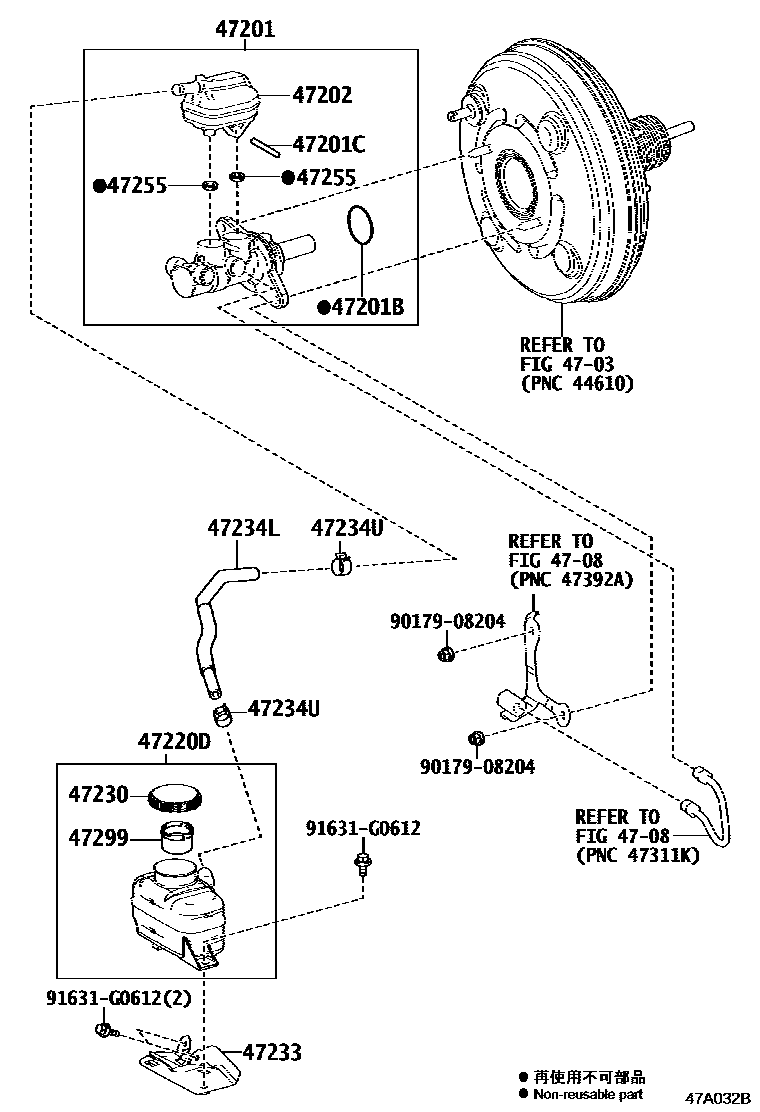

BRAKE MASTER CYLINDER

0001 1 0002 1 0003 1 0004 1

4703

4708

47201CYLINDER SUB-ASSY, BRAKE MASTER

main47201-48202iAGL2#,GGL25201509-201908

main47201-48210iGYL25..LHD201510-201908

main47201-48230iGYL25..RHD201510-201908

47201BRING, O(FOR BRAKE MASTER CYLINDER)

main90015-AH002iAGL2#,GGL25201509-201908

47201CRING PIN, BRAKE MASTER CYLINDER

main90029-15803iAGL2#,GGL25201509-201908

47202RESERVOIR SUB-ASSY, BRAKE MASTER CYLINDER

main47220-48200iAGL2#,GGL25201509-201908

47220DRESERVOIR ASSY, BRAKE MASTER CYLINDER

main47220-48250iAGL2#..RHD201509-201908

main47220-48260iAGL2#,GGL25..LHD201509-201908

main47220-48270iGYL25201510-201710

sub47220-48271

main47220-48271iGYL25201711-201908

47230CAP ASSY, BRAKE MASTER CYLINDER RESERVOIR FILLER

main47230-11010iGYL25201704-201908

main47230-47090iAGL2#,GGL25201612-201908

main47230-58010iAGL2#,GGL25,GYL25201509-201612

sub47230-11010

47233BRACKET, RESERVOIR

main47233-48170iAGL2#,GGL25..LHD201509-201908

main47233-48180iAGL2#..RHD201509-201908

main47233-48190iGYL25201510-201908

47234LHOSE, RESERVOIR, NO.1

main47234-48140iGYL25..LHD201510-201908

main47234-48250iAGL2#,GGL25201509-201908

main47234-48260iAGL2#..RHD201509-201908

main47234-48280iGYL25..RHD201510-201908

47234UCLIP(FOR RESERVOIR HOSE NO.1)

main96137-41501iAGL2#,GGL25201509-201908

47255GROMMET, MASTER CYLINDER RESERVOIR

main47255-16010iGYL25201510-201908

main90029-48001iAGL2#,GGL25201509-201908

sub90016-AT001

47299STRAINER, BRAKE MASTER CYLINDER RESERVOIR

main47299-20060iAGL2#,GGL25201509-201908

main47299-30190iGYL25201510-201908

9017908204

main90179-08204

91631G0612

main91631-G0612

15 parts on this diagram · 4 diagrams in section
