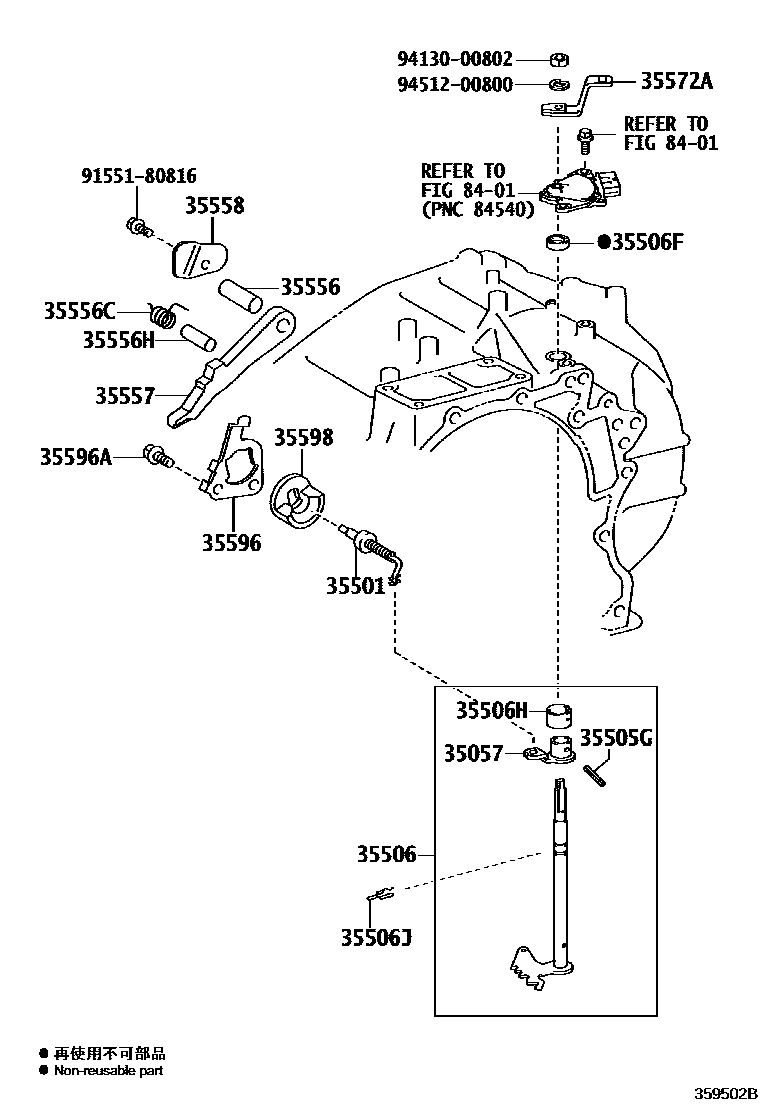

THROTTLE LINK & VALVE LEVER (ATM)

0001 1U661E,U661F 0002 1U881E,U881F

35057LEVER SUB-ASSY,PARKING LOCK

main35057-33010iAGL2#201509-201908

35501ROD SUB-ASSY, PARKING LOCK

main35501-33020iAGL2#201509-201908

main35501-48020iGGL25201509-201908

35505LEVER SUB-ASSY, MANUAL VALVE

main35505-48040iGGL25201509-201908

35505GPIN, SLOTTED SPRING (FOR MANUAL VALVE LEVER)

main90254-04011iAGL2#201509-201908

35506SHAFT SUB-ASSY, MANUAL VALVE LEVER

main35506-33020iAGL2#201509-201908

35506FSEAL, OIL (FOR MANUAL VALVE LEVER SHAFT)

main90311-12002iAGL2#,GGL25201509-201908

35506HSPACER (FOR MANUAL VALVE LEVER SHAFT)

main90560-20006iAGL2#201509-201908

35506JSPRING, RETAINER (FOR MANUAL VALVE LEVER SHAFT)

main90524-09002iAGL2#201509-201908

35556SHAFT, PARKING LOCK PAWL

main35556-33010iAGL2#201509-201908

main35556-48020iGGL25201509-201908

35556CSPRING, TORSION (FOR PARKING LOCK PAWL SHAFT)

main90508-21007iAGL2#201509-201908

35556HSHAFT, PARKING LOCK PAWL

main35556-63010iAGL2#201509-201908

35557PAWL, PARKING LOCK

main35557-33021iAGL2#201509-201908

main35557-48030iGGL25201509-201908

35558CLAMP, PAWL SHAFT

main35558-33010iAGL2#201509-201908

35572ALEVER, TRANSMISSION CONTROL SHAFT

main35572-33020iAGL2#201509-201908

main35572-48040iGGL25201509-201908

35596PLATE, PAWL STOPPER

main35596-33010iAGL2#201509-201908

35596ABOLT (FOR PAWL STOPPER PLATE)

main91551-80816iAGL2#201509-201908

*8-1.25PX16-13.5

35598SLEEVE, PARKING LOCK

main35598-33010iAGL2#201509-201908

8401

9155180816

main91551-80816

9413000802

main94130-00802

9451200800

main94512-00800

21 parts on this diagram · 2 diagrams in section
