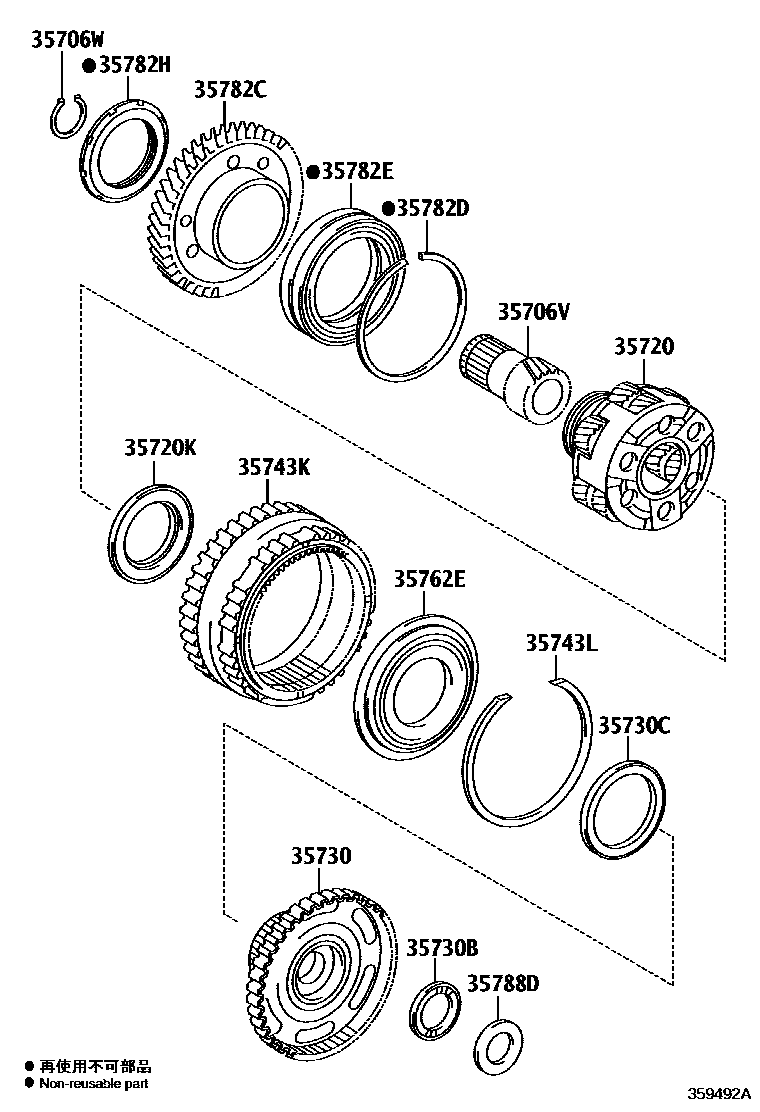

PLANETARY GEAR, REVERSE PISTON & COUNTER GEAR(ATM)

0001 1U661E,U661F 0002 1U881E,U881F

35706VGEAR SUB ASSY, PLANETARY SUN

main35706-33020iAGL2#201908

main35706-48020iGGL25201908

35706WRING, SNAP (FOR PLANETARY SUN GEAR)

main90520-34032iAGL2#201509-201908

35720GEAR ASSY, FRONT PLANETARY

main35720-33062iAGL2#201908

main35720-48040iGGL25201509-201908

35720KBEARING, THRUST NEEDLE ROLLER(FOR PLANETARY GEAR REAR)

main90374-62007iAGL2#201509-201908

35730GEAR ASSY, REAR PLANETARY SUN

main35730-33021iAGL2#201509-201908

35730BBEARING, THRUST NEEDLE ROLLER (FOR REAR PLANERARY SUN GEAR)

main90374-28015iAGL2#201509-201908

35730CBEARING, THRUST NEEDLE(FOR REAR PLANETARY SUN GEAR, NO.2)

main90374-61001iAGL2#201509-201908

35743GEAR, FRONT PLANETARY RING

main35743-48010iGGL25201509-201604

main35743-48030iGGL25201605-201908

35743KGEAR, PLANETARY RING

main35743-33030iAGL2#201509-201908

35743LRING, SNAP (FOR PLANETARY RING GEAR)

main90520-99108iAGL2#201509-201908

35762EFLANGE, PLANETARY RING GEAR

main35762-33020iAGL2#201509-201908

35782CGEAR, COUNTER DRIVE

main35782-33031iAGL2#201509-201908

35782DRING, HOLE SNAP(FOR COUNTER DRIVE GEAR)

main90520-99154iAGL2#201509-201908

35782EBEARING(FOR COUNTER DRIVE GEAR)

main90369-72002iAGL2#201509-201908

35782HNUT(FOR COUNTER DRIVE GEAR)

main90179-60001iAGL2#201509-201908

35788DRACE, THRUST BEARING, NO.3

main35788-33020iAGL2#201908

main35788-48010iGGL25201908

16 parts on this diagram · 2 diagrams in section
