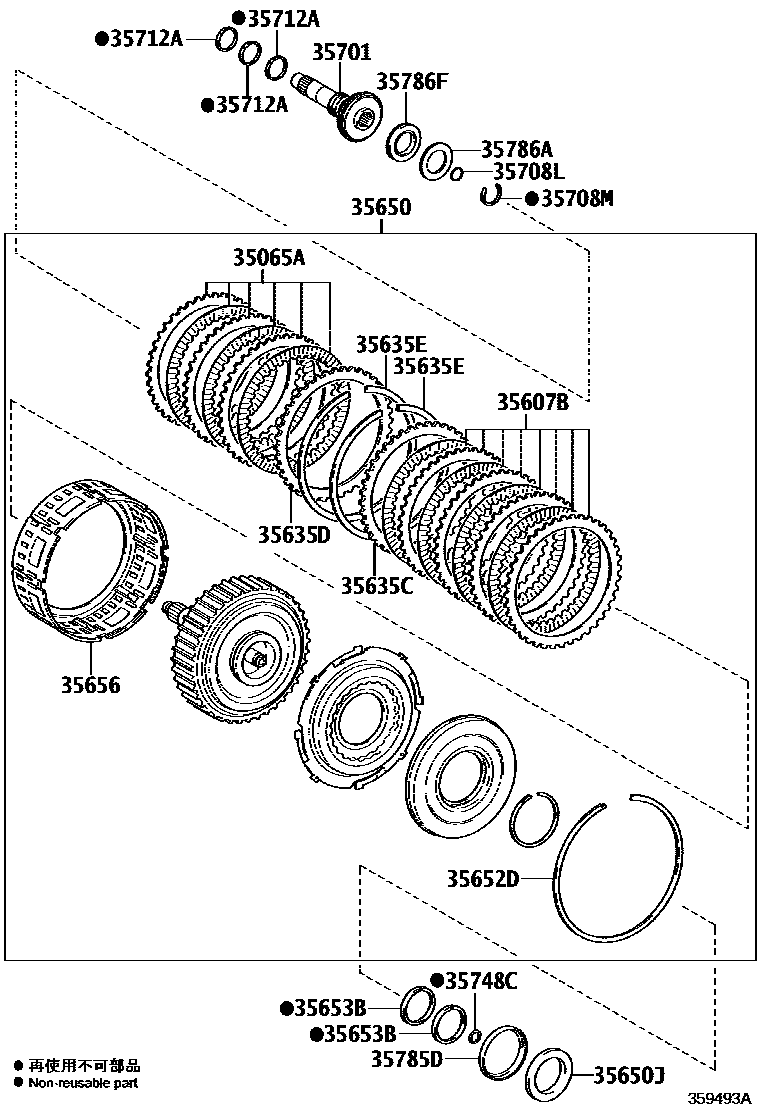

BRAKE BAND & MULTIPLE DISC CLUTCH (ATM)
35065ADISC SET, DIRECT CLUTCH
35607BDISC SET, FORWARD CLUTCH
35635FLANGE, FORWARD CLUTCH
T=4.1
T=4.2
T=4.3
T=4.4
T=4.5
T=4.6
T=4.7
T=4.45
T=4.55
T=4.65
35635CCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.1
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
35635DCLUTCH FRANGE, DIRECT MULTIPLE DISC, NO.2
T=3.0,MARK 30
T=3.1,MARK 31
T=3.2,MARK 32
T=3.3,MARK 33
T=3.4,MARK 34
T=3.5,MARK 35
35635ERING, SNAP (FOR DIRECT MULTIPLE DISC CLUTCH)
35650CLUTCH ASSY, REAR MULTIPLE DISC
35650JBEARING, THRUST NEEDLE ROLLER (FOR DIRECT DISC CLUTCH)
35652DRING, SNAP (FOR DIRECT CLUTCH PISTON)
35653BRING, DIRECT CLUTCH DRUM OIL SEAL
35656PISTON, DIRECT CLUTCH, NO.2
35701SHAFT SUB-ASSY, INPUT
35708LRING, O (FOR INTERMEDIATE SHAFT)
NO.1
NO.2
35708MRING, SNAP (FOR INTERMEDIATE SHAFT)
35748CRING, INTERMEDIATE SHAFT OIL SEAL
35785DRACE, THRUST BEARING, NO.4
35786ARACE, THRUST BEARING, NO.1
35786FBEARING, THRUST NEEDLE ROLLER
19 parts on this diagram · 3 diagrams in section
