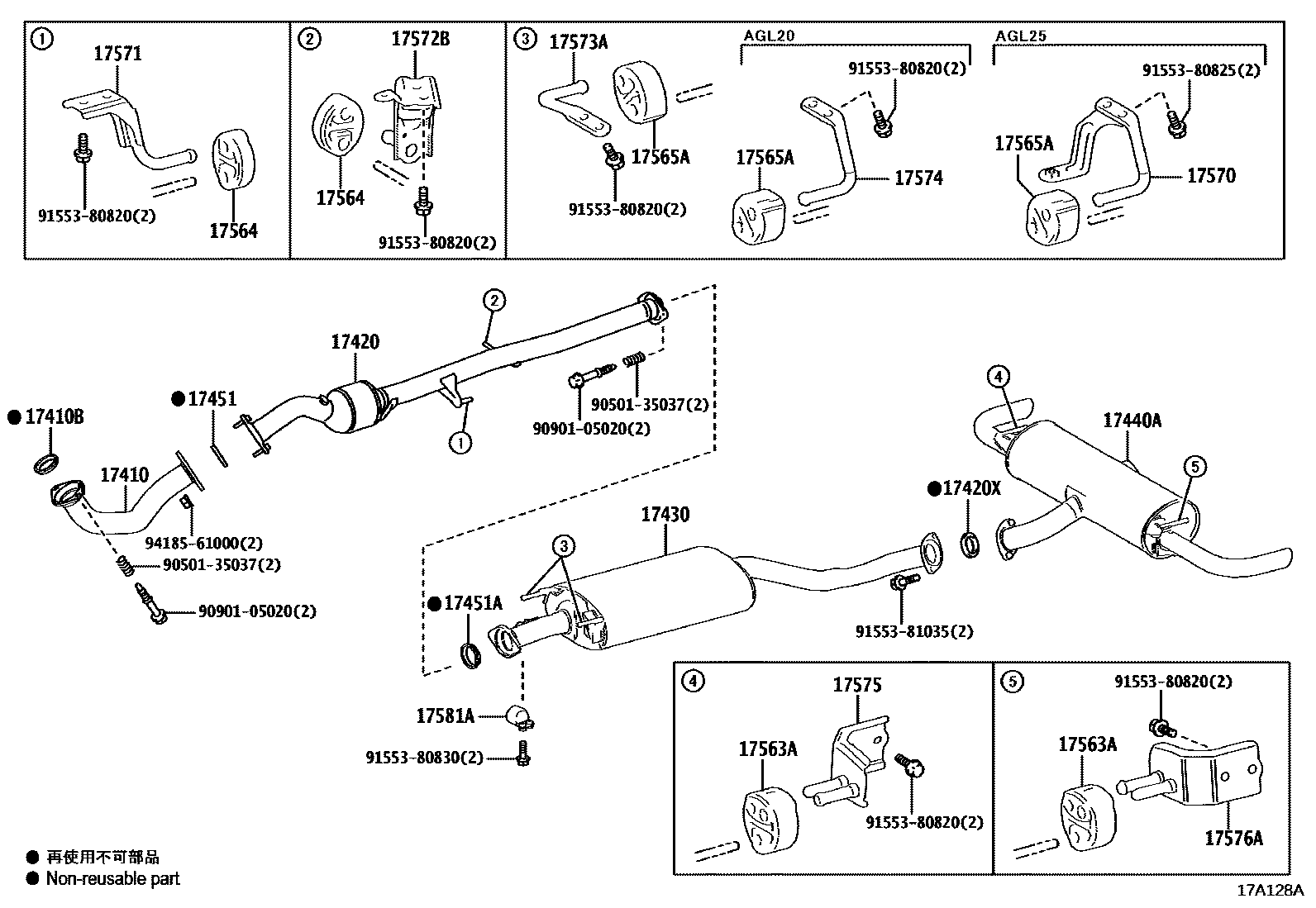

EXHAUST PIPE
17410PIPE ASSY, EXHAUST, FRONT
17410BGASKET, EXHAUST PIPE
sub17451-28041
17420PIPE ASSY, EXHAUST, CENTER
*114=TOYOTA/X82/Y
*114=TOYOTA/UG1/Y
*114=TOYOTA/AH3/Y
*114=TOYOTA/X84/Y
*114=TOYOTA/Y52/Y
17420XGASKET, EXHAUST PIPE, CENTER
17440APIPE ASSY, EXHAUST TAIL, NO.2
17451GASKET, EXHAUST PIPE
17563ASUPPORT, EXHAUST PIPE, NO.3
17564SUPPORT,EXHAUST PIPE, NO.4
17565ASUPPORT, EXHAUST PIPE, NO.4
17570BRACKET ASSY, EXHAUST PIPE SUPPORT
17571BRACKET, EXHAUST PIPE SUPPORT, NO.1
17572BBRACKET, EXHAUST PIPE SUPPORT, NO.2
17573ABRACKET, EXHAUST PIPE SUPPORT, NO.3
17574BRACKET, EXHAUST PIPE SUPPORT, NO.4
17575BRACKET, EXHAUST PIPE SUPPORT, NO.5
17576ABRACKET, EXHAUST PIPE SUPPORT, NO.6
17581ADAMPER, EXHAUST PIPE
9050135037
main90501-35037
9090105020
main90901-05020
9155380820
main91553-80820
9155380825
main91553-80825
9155380830
main91553-80830
9155381035
main91553-81035
9418561000
main94185-61000
26 parts on this diagram · 3 diagrams in section
