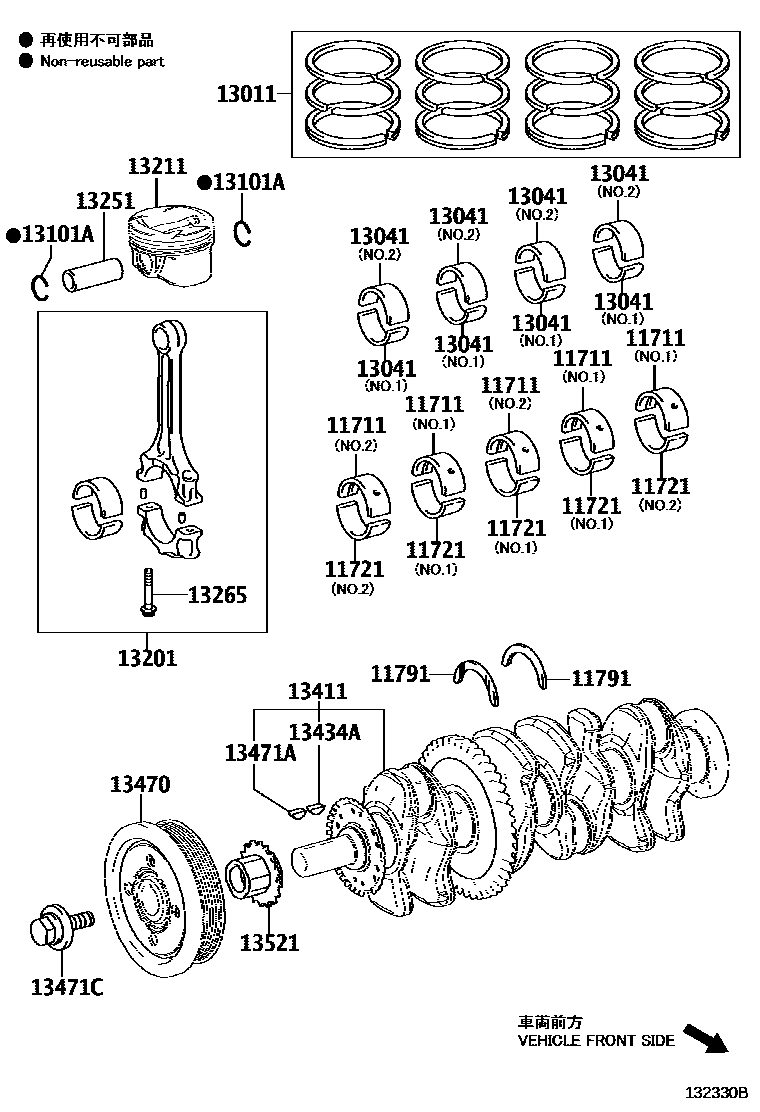

CRANKSHAFT & PISTON
11711BEARING, CRANKSHAFT
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
11721BEARING, CRANKSHAFT, NO.2
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
MARK 4,NO.2,REFER R/M
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 4,NO.1,REFER R/M
11791WASHER, CRANKSHAFT THRUST, UPPER
STD
13011RING SET, PISTON
STD,RUSSIA,BELARUS,KAZAKHSTAN SPEC
STD,UKRAINE SPEC
STD,GEORGIA SPEC
STD,ARMENIA SPEC
STD,AZERBAIJAN SPEC
STD,ADRIA(SLOVENIA) SPEC
STD,BELARUS SPEC
STD,KAZAKHSTAN SPEC
STD,SERBIA SPEC
STD
STD
13041BEARING, CONNECTING ROD
MARK 1
MARK 2
MARK 3
MARK 4
MARK 1,NO.1,REFER R/M
MARK 2,NO.1,REFER R/M
MARK 3,NO.1,REFER R/M
MARK 1,NO.2,REFER R/M
MARK 2,NO.2,REFER R/M
MARK 3,NO.2,REFER R/M
13101PISTON SUB-ASSY, W/PIN
STD,MARK A,RH BANK
STD,MARK B,RH BANK
STD,MARK C,RH BANK
STD,MARK A,RH BANK
STD,MARK B,RH BANK
STD,MARK C,RH BANK
13101ARING, HOLE SNAP(FOR PISTON PIN)
13201ROD SUB-ASSY, CONNECTING
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13211PISTON
BELARUS SPEC,MARK A,REFER REPAIR MANUAL
KAZAKHSTAN SPEC,MARK A,REFER REPAIR MANUAL
SERBIA SPEC,MARK A,REFER REPAIR MANUAL
RUSSIA,BELARUS,KAZAKHSTAN SPEC,MARK A,REFER REPAIR MANUAL
UKRAINE SPEC,MARK A,REFER REPAIR MANUAL
GEORGIA SPEC,MARK A,REFER REPAIR MANUAL
ARMENIA SPEC,MARK A,REFER REPAIR MANUAL
AZERBAIJAN SPEC,MARK A,REFER REPAIR MANUAL
ADRIA(SLOVENIA) SPEC,MARK A,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
ARMENIA SPEC,MARK B,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
RUSSIA,BELARUS,KAZAKHSTAN SPEC,MARK B,REFER REPAIR MANUAL
UKRAINE SPEC,MARK B,REFER REPAIR MANUAL
GEORGIA SPEC,MARK B,REFER REPAIR MANUAL
AZERBAIJAN SPEC,MARK B,REFER REPAIR MANUAL
ADRIA(SLOVENIA) SPEC,MARK B,REFER REPAIR MANUAL
BELARUS SPEC,MARK B,REFER REPAIR MANUAL
KAZAKHSTAN SPEC,MARK B,REFER REPAIR MANUAL
SERBIA SPEC,MARK B,REFER REPAIR MANUAL
ARMENIA SPEC,MARK C,REFER REPAIR MANUAL
UKRAINE SPEC,MARK C,REFER REPAIR MANUAL
RUSSIA,BELARUS,KAZAKHSTAN SPEC,MARK C,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
ADRIA(SLOVENIA) SPEC,MARK C,REFER REPAIR MANUAL
AZERBAIJAN SPEC,MARK C,REFER REPAIR MANUAL
GEORGIA SPEC,MARK C,REFER REPAIR MANUAL
SERBIA SPEC,MARK C,REFER REPAIR MANUAL
KAZAKHSTAN SPEC,MARK C,REFER REPAIR MANUAL
BELARUS SPEC,MARK C,REFER REPAIR MANUAL
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13251PIN, PISTON
MARK A
MARK B
MARK C
MARK A,REFER REPAIR MANUAL
MARK B,REFER REPAIR MANUAL
MARK C,REFER REPAIR MANUAL
13434AKEY(FOR OIL PUMP DRIVE SPLINE)
13470PULLEY ASSY, CRANKSHAFT
13471PULLEY, CRANKSHAFT
13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)
13471CBOLT(FOR CRANKSHAFT PULLEY SET)
13521GEAR OR SPROCKET, CRANKSHAFT TIMING
18 parts on this diagram · 2 diagrams in section
