MIRROR
8106
8606
87810MIRROR ASSY, INNER REAR VIEW
COSTA RICA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(*GDO)
KYRGYZSTAN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
main87840-0W310supersedes 87810-0E330iAALH15,16,TALH17..EUR;AALH1#,TALA1#,TALH17..LHD..GEN202211-202410
MONGOLIA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
COSTA RICA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)
KYRGYZSTAN SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
COSTA RICA SPEC&INSIDE REAR VIEW MIRROR-AUTOMATIC ANTI-GLARE & WITH(*GDO)
MONGOLIA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR
COSTA RICA SPEC&INSIDE REAR VIEW MIRROR-DIGITAL INNER MIRROR & WITH(*GDO)
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
NO PAINT REQ.,EGYPT SPEC&BACK MONITOR-WITH(*BGM)&REAR & REAR SIDE MONITOR-WITHOUT
NO PAINT REQ.,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST)
87915COVER, OUTER MIRROR, RH
SONIC QUARTZ,085,W(SEAL)
SONIC TITANIUM,1J7,W(SEAL)
SONIC CHROME,1L1,W(SEAL)
SONIC IRIDIUM,1L2,W(SEAL)
GRAPHITE BLACK GF.,223,W(SEAL)
RED MC.CS.,3R1,W(SEAL)
SONIC COPPER,4Y5,W(SEAL)
TERRANE KHAKI M.M.,6X4,W(SEAL)
DEEP BLUE MC.,8X5,W(SEAL)
SONIC QUARTZ,085,W(LABEL)
SONIC TITANIUM,1J7,W(LABEL)
SONIC CHROME,1L1,W(LABEL)
SONIC IRIDIUM,1L2,W(LABEL)
GRAPHITE BLACK GF.,223,W(LABEL)
RED MC.CS.,3R1,W(LABEL)
SONIC COPPER,4Y5,W(LABEL)
TERRANE KHAKI M.M.,6X4,W(LABEL)
DEEP BLUE MC.,8X5,W(LABEL)
NO PAINT REQ.,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1 ,8X5,W/O(LABEL)
F SPORT DESIGN,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1 ,8X5,W(SEAL)
F SPORT+&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1 ,8X5,W/O(SEAL)
87917CSCREW, OUTER MIRROR
87917HSCREW, OUTER MIRROR, NO.2
87917JSCREW, OUTER MIRROR, NO.3
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
87931OUTER MIRROR, RH
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
EGYPT SPEC&BACK MONITOR-WITH(*BGM)&REAR & REAR SIDE MONITOR-WITHOUT
87939ACOVER, OUTER MIRROR HOLE, RH
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
87940MIRROR ASSY, OUTER REAR VIEW, LH
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.
NO PAINT REQ.,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
NO PAINT REQ.,EGYPT SPEC&BACK MONITOR-WITH(*BGM)&REAR & REAR SIDE MONITOR-WITHOUT
NO PAINT REQ.,BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
87945COVER, OUTER MIRROR, LH
SONIC QUARTZ,085,W(SEAL)
SONIC TITANIUM,1J7,W(SEAL)
SONIC CHROME,1L1,W(SEAL)
SONIC IRIDIUM,1L2,W(SEAL)
GRAPHITE BLACK GF.,223,W(SEAL)
RED MC.CS.,3R1,W(SEAL)
SONIC COPPER,4Y5,W(SEAL)
TERRANE KHAKI M.M.,6X4,W(SEAL)
DEEP BLUE MC.,8X5,W(SEAL)
SONIC QUARTZ,085,W(LABEL)
SONIC TITANIUM,1J7,W(LABEL)
SONIC CHROME,1L1,W(LABEL)
SONIC IRIDIUM,1L2,W(LABEL)
GRAPHITE BLACK GF.,223,W(LABEL)
RED MC.CS.,3R1,W(LABEL)
SONIC COPPER,4Y5,W(LABEL)
TERRANE KHAKI M.M.,6X4,W(LABEL)
DEEP BLUE MC.,8X5,W(LABEL)
F SPORT DESIGN,BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1 ,8X5,W(SEAL)
F SPORT+&REAR & REAR SIDE MONITOR-WITH(*BSM&*ARFHL&*LC & SAFE EXIT ASSIST),BLACK,083 ,1L1 ,1L2 ,223 ,4Y5 ,8X1 ,8X5,W/O(SEAL)
87946RETRACTOR, OUTER MIRROR, RH
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
MOLDOVA SPEC&BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
EGYPT SPEC&BACK MONITOR-WITH(*BGM)&REAR & REAR SIDE MONITOR-WITHOUT
87948ACOVER, OUTER MIRROR HOLE, LH
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
87961MIRROR OUTER, LH
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
EGYPT SPEC&BACK MONITOR-WITH(*BGM)&REAR & REAR SIDE MONITOR-WITHOUT
87966RETRACTOR, OUTER MIRROR, LH
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)&REAR & REAR SIDE MONITOR-WITH(*BSM & *ARFHL & SAFE EXIT ASSIST)
BACK MONITOR-WITH(*PVM & CAMERA CLEANER)
EGYPT SPEC&BACK MONITOR-WITH(*BGM)&REAR & REAR SIDE MONITOR-WITHOUT
9017906274
main90179-06274

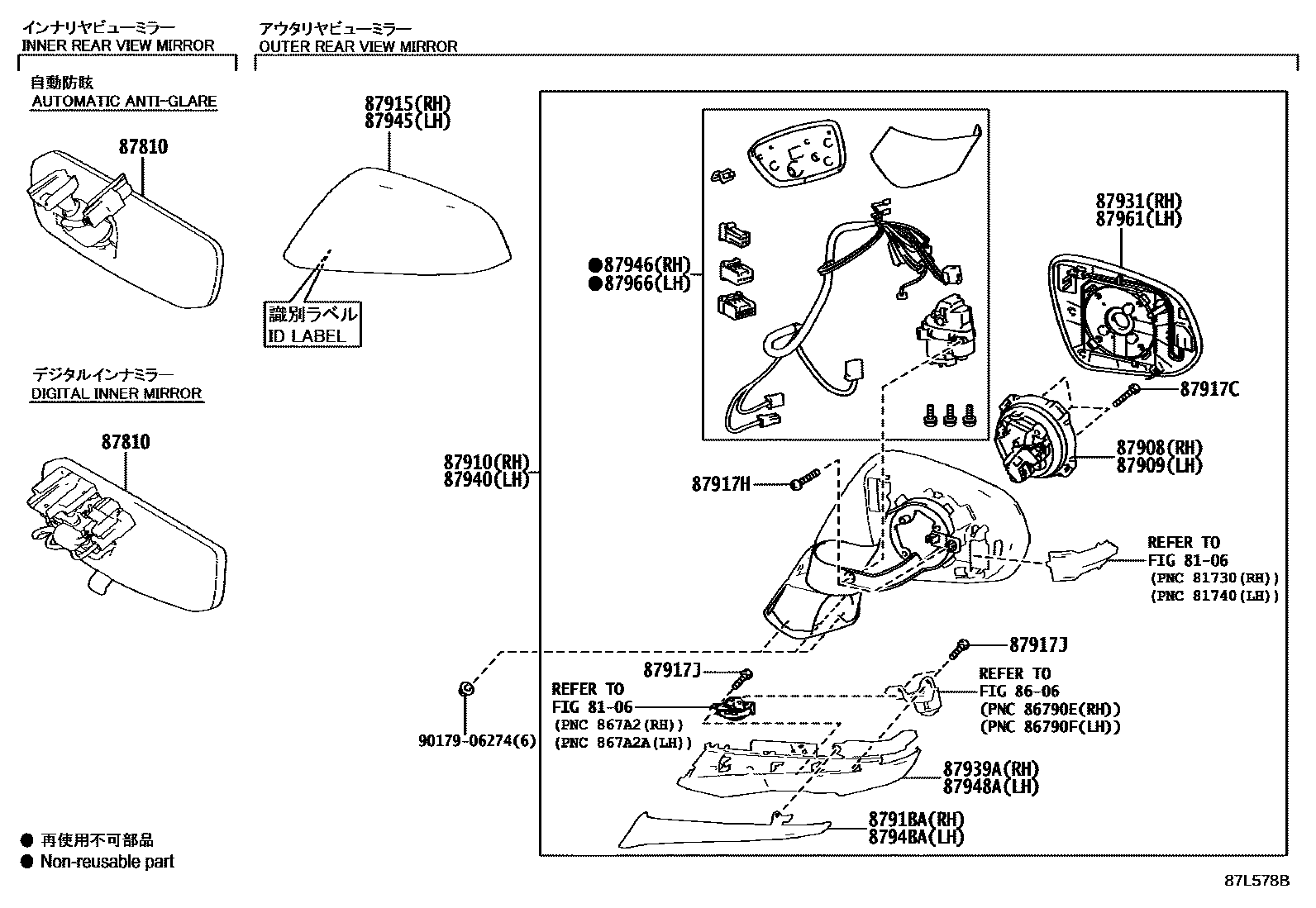

21 parts on this diagram · 1 diagram in section
