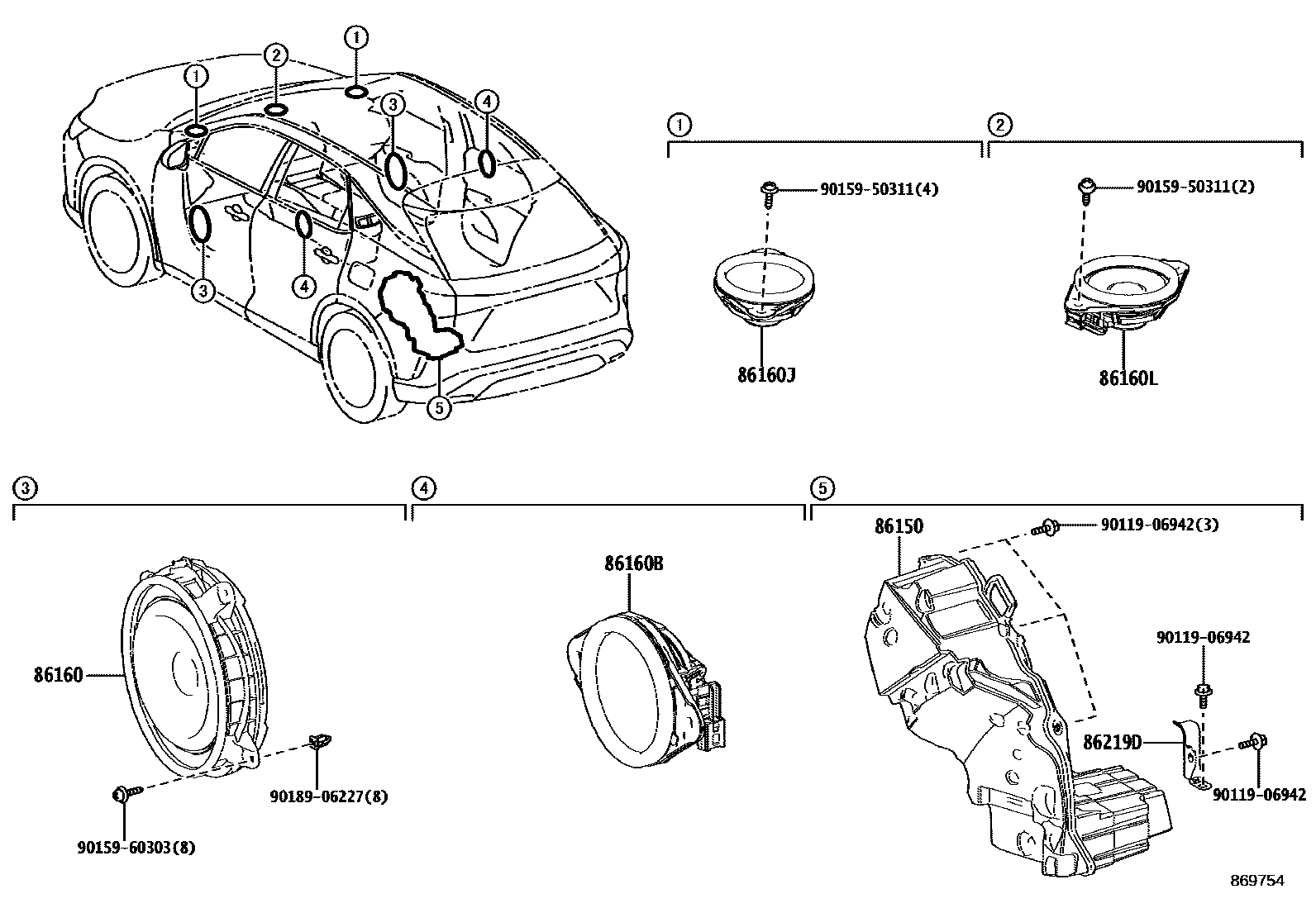

SPEAKER

0001 112SPEAKER 0002 121SPEAKER 0003 1EQUALIZER

86150SPEAKER ASSY, W/BOX, NO.1

main86150-48120iAALH1#,SALA15,TALA1#,TALH17202211

main86150-48130iAALH16,TALH17;AALH10,15,TALA1#..EUR,GCC,GEN202211

AUDIO-EMV & 21SPEAKER

86160SPEAKER ASSY, FRONT NO.1

main86160-48410×2iAALH1#,SALA15,TALA1#,TALH17202211

main86160-78100×2iAALH15,TALA15..GCC202211-202509

AUDIO-*DA & 21SPEAKER

86160BSPEAKER ASSY, REAR

main86160-48400×2iAALH1#,SALA15,TALA1#,TALH17202211

main86160-78090×2iAALH16,TALH17;AALH10,15,TALA1#..EUR,GCC,GEN202211

AUDIO-EMV & 21SPEAKER

86160JSPEAKER ASSY, FRONT NO.3

main86160-48400×2iAALH1#,SALA15,TALA1#,TALH17202211

main86160-78090×2iAALH15,TALA15..GCC202211-202509

AUDIO-*DA & 21SPEAKER

86160LSPEAKER ASSY, FRONT NO.4

main86160-48390iAALH1#,SALA15,TALA1#,TALH17202211

main86160-78090iAALH16,TALH17;AALH10,15,TALA1#..EUR,GCC,GEN202211

AUDIO-EMV & 21SPEAKER

86219DBRACKET, SPEAKER, REAR NO.1

main86219-48020iAALH1#,SALA15,TALA1#,TALH17202211

9011906942

main90119-06942

9015950311

main90159-50311

9015960303

main90159-60303

9018906227

main90189-06227

10 parts on this diagram · 3 diagrams in section
