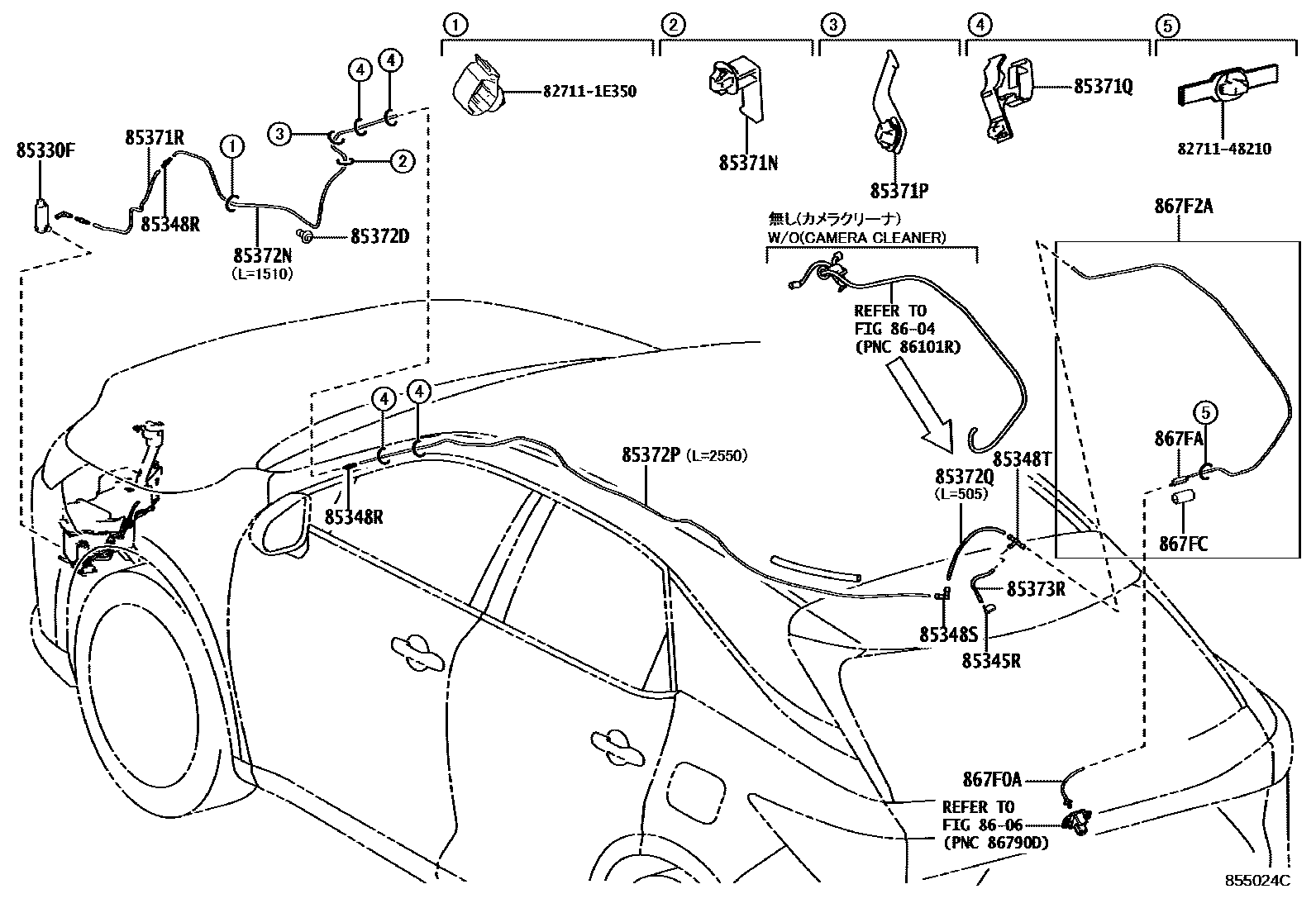

REAR WASHER
85330FMOTOR & PUMP ASSY, RR WASHER
85345RNOZZLE, REAR WASHER
85348RJOINT, REAR WASHER HOSE, NO.1
85348SJOINT, REAR WASHER ELBOW, NO.1
85348TJOINT, REAR WASHER HOSE, NO.2
85371NCLAMP, REAR WASHER HOSE
85371PCLAMP, REAR WASHER HOSE, NO.2
85371QCLAMP, REAR WASHER HOSE, NO.3
85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)
L=528
L=528,AUSTRALIA SPEC
L=528,AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=528,AUSTRALIA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=528,NEW ZEALAND SPEC
L=528,NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=528,NEW ZEALAND SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=528,COLD AREA SPEC
L=528,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=528,COLD AREA SPEC&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=528,WITHOUT(COLD AREA SPEC)
L=528,WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=528,WITHOUT(COLD AREA SPEC)&HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
L=528,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHS)
L=528,HEADLAMP-LED TRIPLE BEAM TYPE & WITH(*AHB)
85372DGROMMET, REAR WASHER HOSE
85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1
85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2
85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3
85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)
8604
8606
867F0ANOZZLE ASSY, CAMERA CLEANER, NO.1
867F2AHOSE ASSY, CAMERA CLEANER
867FAFILTER, CLEANER HOSE
867FCCUSHION, CLEANER HOSE
827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-1E350
8271148210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)
main82711-48210
22 parts on this diagram · 1 diagram in section
