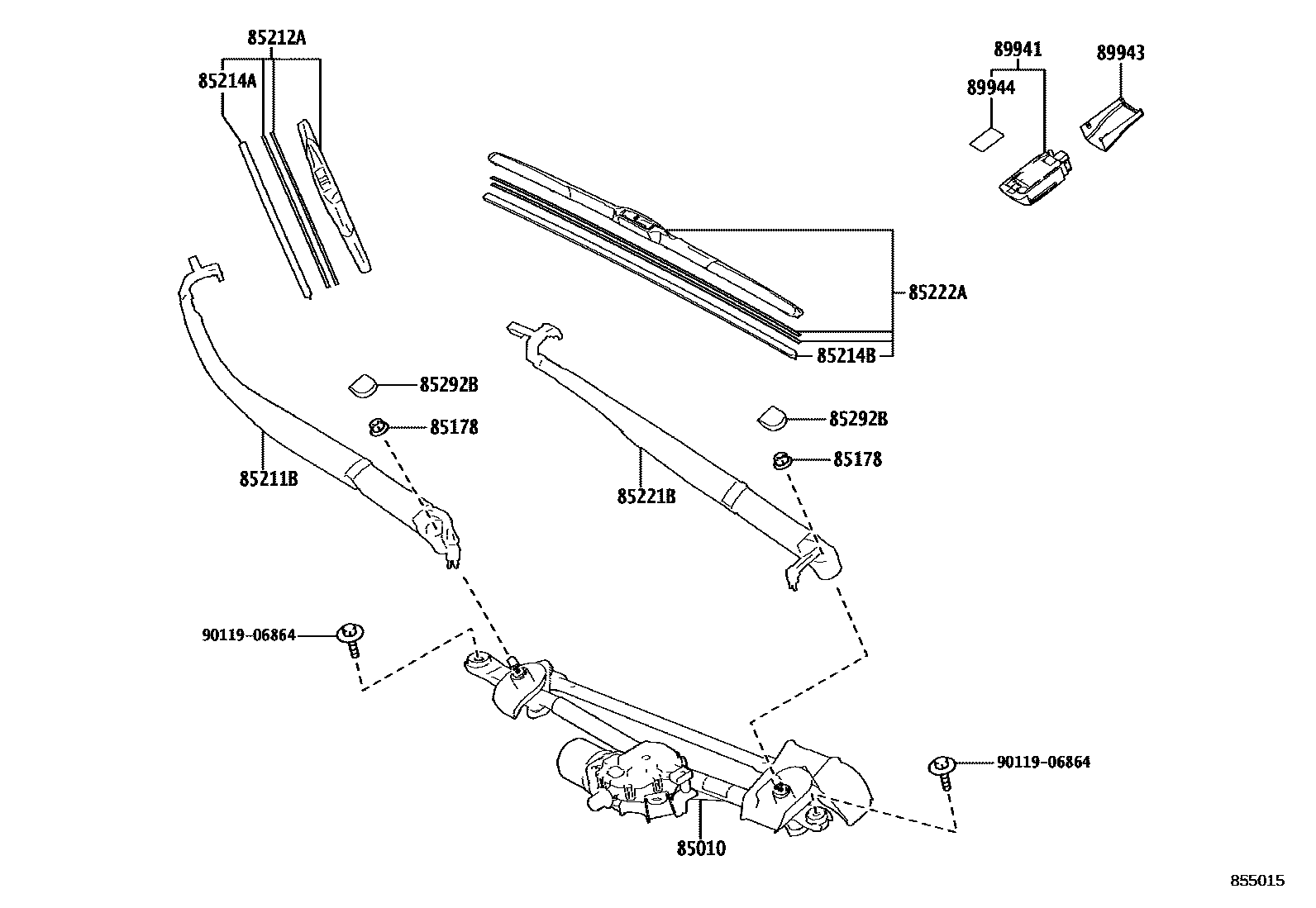

WINDSHIELD WIPER

0001 1 0002 1

85010MOTOR & LINK ASSY, FR WIPER

main85010-48311iAALH1#,TALA1#,TALH17..LHD202211-202304

sub85010-48312

main85010-48312iAALH1#,SALA15,TALA1#,TALH17..LHD202305

main85010-48321iAALH1#,TALA1#,TALH17..RHD202211-202304

sub85010-48322

main85010-48322iAALH1#,TALA1#,TALH17..RHD202305

85178NUT (FOR FRONT WIPER ARM SETTING)

main90182-10006iAALH1#,SALA15,TALA1#,TALH17202211

85211BARM, FRONT WIPER, RH

main85211-48240iAALH1#,SALA15,TALA1#,TALH17..LHD202211

main85211-48280iAALH1#,TALA1#,TALH17..RHD..GEN202211

main85211-48290iAALH15,16,TALH17..RHD..EUR202211

85212ABLADE, FR WIPER, RH

main85212-48190iAALH1#,SALA15,TALA1#,TALH17..LHD202211

main85212-48240iAALH1#,TALA1#,TALH17..RHD202211

85214ARUBBER, WIPER, RH

main85214-33180iAALH1#,SALA15,TALA1#,TALH17..LHD202211

main85214-62010iAALH1#,TALA1#,TALH17..RHD202211

85214BRUBBER, WIPER, LH

main85214-33180iAALH1#,TALA1#,TALH17..RHD202211

main85214-62010iAALH1#,SALA15,TALA1#,TALH17..LHD202211

85221BARM, FRONT WIPER, LH

main85221-48230iAALH1#,TALA1#,TALH17..LHD..(GCC,GEN)202211

main85221-48260iAALH1#,SALA15,TALA15,TALH17..LHD..(CHI,EUR)202211

ARGENTINA SPEC

main85221-48260iAALH1#,SALA15,TALA15,TALH17..LHD..(CHI,EUR)202211

BRAZIL SPEC

main85221-48280iAALH1#,TALA1#,TALH17..RHD202211

85222ABLADE, FR WIPER, LH

main85222-48200iAALH1#,SALA15,TALA1#,TALH17..LHD202211

main85222-48260iAALH1#,TALA1#,TALH17..RHD202211

85292BCAP, FRONT WIPER ARM HEAD

main85292-13010iAALH1#,SALA15,TALA1#,TALH17202211

89941SENSOR, RAIN

main89941-78010iAALH16202211

main89941-78020iAALH10,15,SALA15,TALA1#,TALH17202211

89943COVER, RAIN SENSOR

main89943-76020iAALH1#,SALA15,TALA1#,TALH17202211

89944TAPE, RAIN SENSOR

main89944-42020iAALH1#,SALA15,TALA1#,TALH17202211

9011906864

main90119-06864

13 parts on this diagram · 2 diagrams in section
