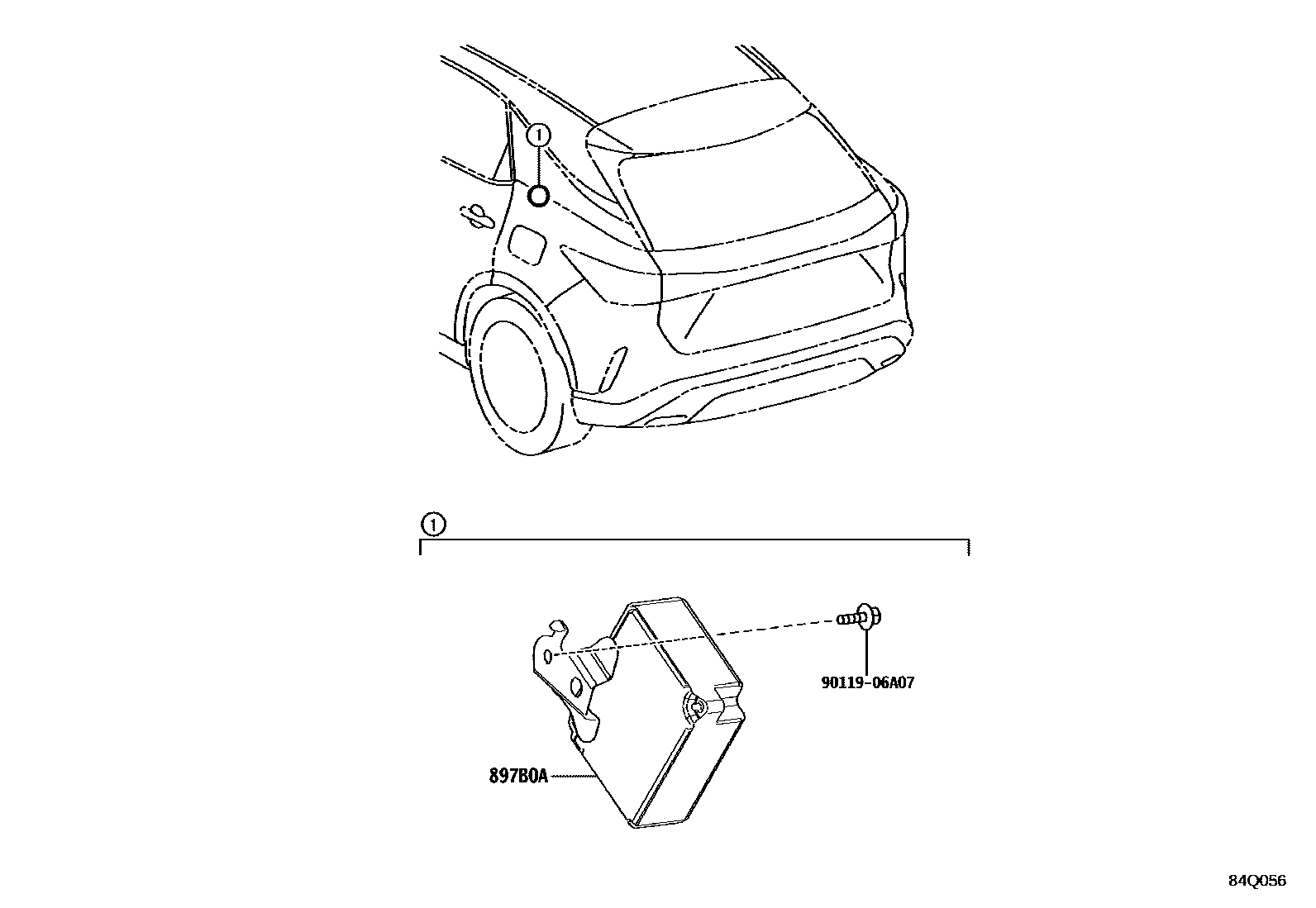

TIRE PRESSURE WARNING SYSTEM

897B0ARECEIVER ASSY, ELECTRICAL KEY & TPMS

main897B0-48380iAALH10,TALA10..LHD..GEN202211-202307

NEW ZEALAND SPEC

main897B0-48380iAALH10,15,TALA15,TALH17..RHD..GEN202211-202307

AUSTRALIA SPEC

main897B0-48380iAALH10,15,TALA15,TALH17..RHD..GEN202211-202307

TAIWAN SPEC

main897B0-48381iAALH10,TALA10..LHD..GEN202308

AUSTRALIA SPEC

main897B0-48381iAALH15,16,TALH17..RHD..GEN202308

TAIWAN SPEC

main897B0-48381iAALH15,16,TALA15,TALH17..LHD..GEN202308

NEW ZEALAND SPEC

main897B0-48400iAALH1#,TALH17..CHI202211-202307

main897B0-48401iAALH1#,SALA15,TALH17..CHI202308

main897B0-48440iAALH10,TALA10..RHD;AALH15,16,TALA15,TALH17..GEN202211-202307

main897B0-48441iAALH10,TALA10..RHD;AALH15,16,TALA15,TALH17..GEN202308

main897B0-48450iTALA15,TALH17..RHD..GEN202211

THAILAND SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

INDONESIA SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

MALAYSIA SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

SOUTH AFRICA SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

VIETNAM SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

CAMBODIA SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

PHILIPPINE SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

HONG KONG SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

MACAU SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

BRUNEI SPEC

main897B0-48450iTALA15,TALH17..RHD..GEN202211

SINGAPORE SPEC

9011906A07

main90119-06A07

2 parts on this diagram · 1 diagram in section
