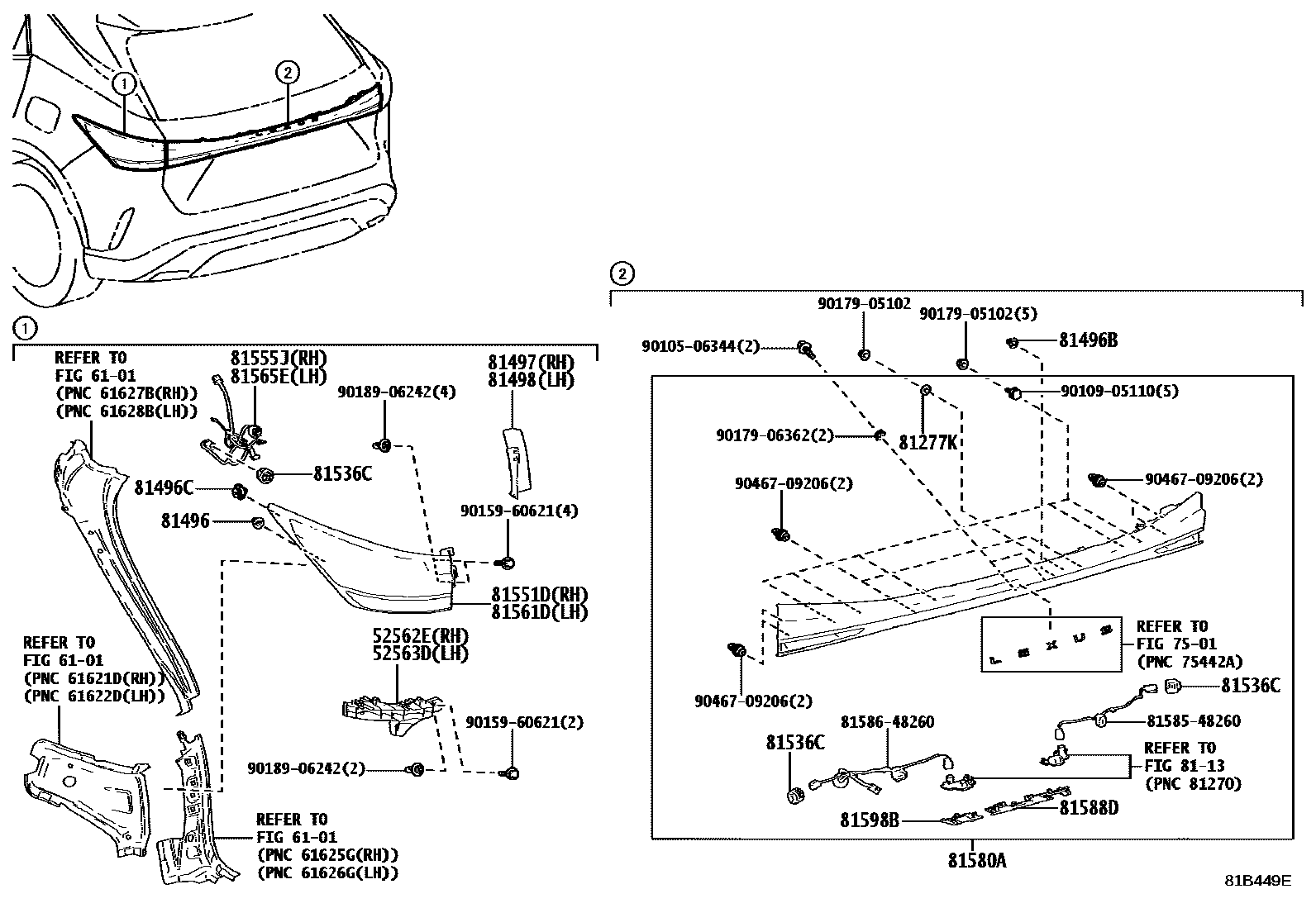

REAR COMBINATION LAMP

52562ERETAINER, REAR BUMPER, UPPER RH

main52562-48040iAALH1#,SALA15,TALA1#,TALH17202211

52563DRETAINER, REAR BUMPER, UPPER LH

main52563-48040iAALH1#,SALA15,TALA1#,TALH17202211

6101

7501

8113

81277KSHADE, LICENSE PLATE LAMP, RH

main81277-20240iAALH1#,SALA15,TALA1#,TALH17202211

81496GUIDE, REAR COMBINATION LAMP

main81496-52020iAALH1#,SALA15,TALA1#,TALH17202211

81496BGUIDE, REAR LAMP

main81496-78010iAALH1#,SALA15,TALA1#,TALH17202211

81496CGUIDE, REAR COMBINATION LAMP, NO.2

main81496-60010iAALH1#,SALA15,TALA1#,TALH17202211

81497COVER, REAR COMBINATION LAMP, RH

main81497-48020iAALH1#,SALA15,TALA1#,TALH17202211

81498COVER, REAR COMBINATION LAMP, LH

main81498-48020iAALH1#,SALA15,TALA1#,TALH17202211

81536CLED, TAIL & STOP LAMP

main8158A-58320iAALH1#,TALA1#,TALH17202211-202403

TYPE A

main81965-40010iAALH1#,SALA15,TALA1#,TALH17202403

TYPE B

81551DLENS & BODY, REAR COMBINATION LAMP, RH

main81551-48400iAALH1#,SALA15,TALA1#,TALH17202211

81555JSOCKET & WIRE, REAR COMBINATION LAMP, RH

main81555-48390iAALH1#,SALA15,TALA1#,TALH17202211

81561DLENS & BODY, REAR COMBINATION LAMP, LH

main81561-48400iAALH1#,SALA15,TALA1#,TALH17202211

81565ESOCKET & WIRE, REAR COMBINATION LAMP, LH

main81565-48390iAALH1#,SALA15,TALA1#,TALH17202211

81580ALAMP ASSY, REAR

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

PHILIPPINE SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

AUSTRALIA SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

NEW ZEALAND SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

THAILAND SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

MALAYSIA SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

SOUTH AFRICA SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

VIETNAM SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

CAMBODIA SPEC

main81580-48370iAALH10,SALA15,TALA10..LHD;AALH15,16,TALA15,TALH17..CHI,EUR,GCC202211

TAIWAN SPEC

main81580-48380iAALH10,TALA10..RHD;AALH15,16,TALA15,TALH17..GEN202211

81588DGARNISH, REAR LAMP, RH

main76811-48360iAALH1#,SALA15,TALA1#,TALH17202211

81598BGARNISH, REAR LAMP, LH

main76812-48140iAALH1#,SALA15,TALA1#,TALH17202211

8158548260SOCKET & WIRE, REAR LAMP

main81585-48260

8158648260CORD, REAR LAMP

main81586-48260

9010506344

main90105-06344

9010905110

main90109-05110

9015960621

main90159-60621

9017905102

main90179-05102

9017906362

main90179-06362

9018906242

main90189-06242

9046709206

main90467-09206

28 parts on this diagram · 1 diagram in section
