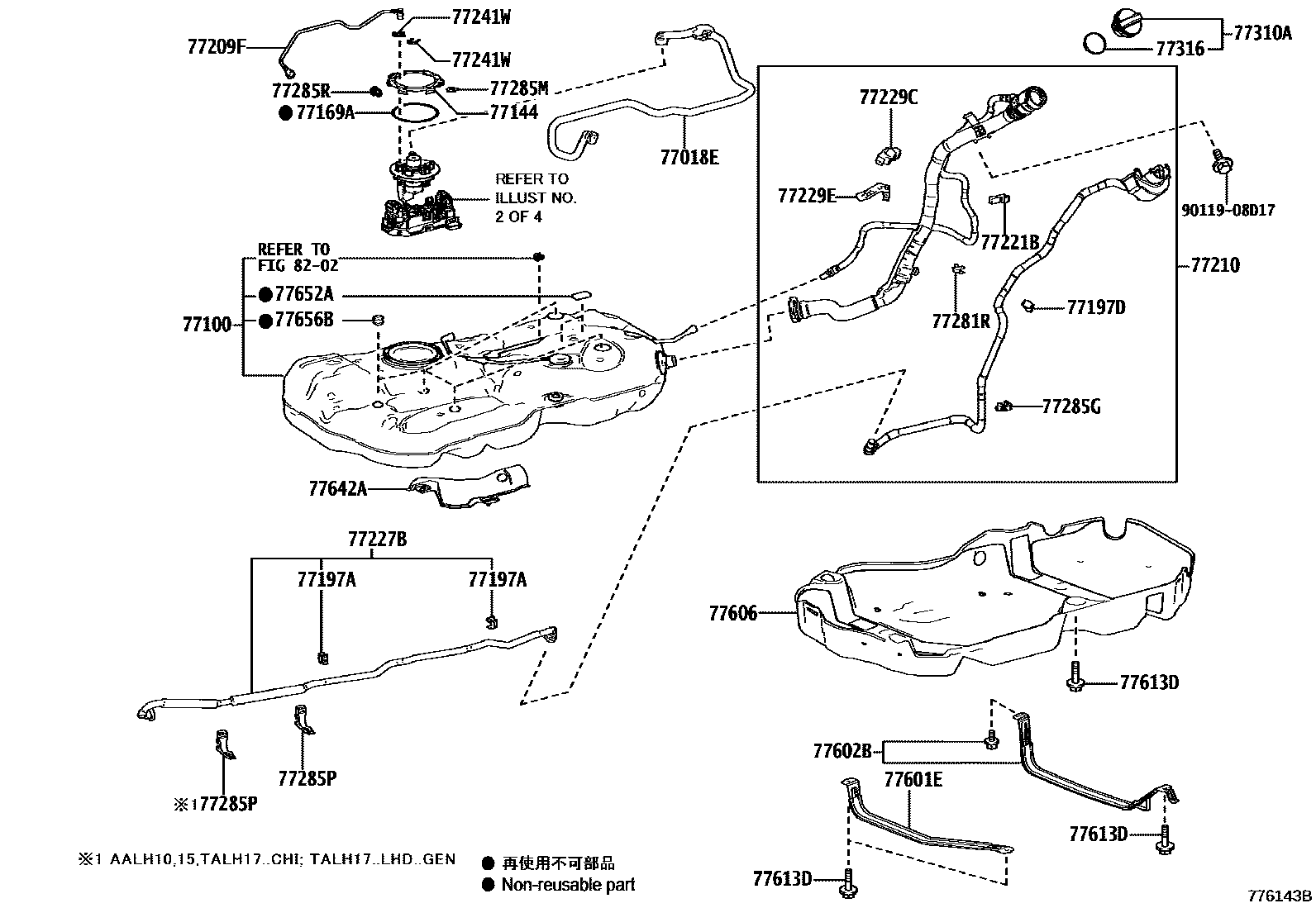

FUEL TANK & TUBE

0001 1FUEL TANK 0002 1FUEL TANK 0003 1FUEL TANK 0004 1FUEL TANK 0005 1FUEL TANK 0006 1FUEL PUMP 0007 1FUEL PUMP 0008 1FUEL PUMP 0009 1FUEL TUBE 0010 1FUEL TUBE 0011 1FUEL TUBE 0012 1FUEL TUBE 0013 1FUEL TUBE(BRAZIL SPEC) 0014 1FUEL TUBE 0015 1FUEL TUBE 0016 1FUEL LID OPENER

77018ETUBE SUB-ASSY, FUEL TANK EVAPORATION VENT

main77018-48070iTALA1#202211

main77018-48080iSALA15202410

main77018-48100iAALH10,15,TALH17..CHI202211

BRAZIL SPEC

main77018-48110iAALH10,15,TALH17..EUR,GCC,GEN202211

77100TANK ASSY, FUEL

main77001-42440iAALH16..EUR,GEN202211-202403

main77001-42480iAALH16..EUR,GEN202403

main77001-48290iSALA15202410

main77001-48310iTALA1#202211

main77001-48330iAALH10,15,TALH17..CHI202211

BRAZIL SPEC

main77001-48350iAALH10,15,TALH17..EUR,GCC,GEN202211

main77001-78330iAALH16..CHI202211-202403

main77001-78540iAALH16..CHI202403

77144RETAINER, FUEL PUMP GAUGE

main77144-30030iAALH1#,SALA15,TALA1#,TALH17202211

77169AGASKET, FUEL SUCTION TUBE SET

main77169-47030iAALH15..LHD..EUR202211

AZERBAIJAN SPEC

main77169-47030iAALH15..LHD..EUR202211

GEORGIA SPEC

main77169-47030iAALH15..LHD..EUR202211

MOROCCO SPEC

main77169-47030iAALH15..LHD..EUR202211

MONGOLIA SPEC

main77169-47030iAALH15..LHD..EUR202211

MOLDOVA SPEC

main77169-47030iAALH15..LHD..EUR202211

KYRGYZSTAN SPEC

main77169-47030iAALH15,TALH17..LHD..EUR202211

KAZAKHSTAN SPEC

main77169-47030iAALH15,TALH17..LHD..EUR202211

UKRAINE SPEC

main77169-47030iAALH15,TALH17..LHD..EUR202211

ARMENIA SPEC

main77169-47040iTALH17..LHD..GEN202211

TAIWAN SPEC

main77169-47040iTALH17..LHD..GEN202211

BRAZIL SPEC

77197ACLAMP, EVAPORATION VENT TUBE, NO.2

main77197-42010iAALH10,15,SALA15,TALA1#,TALH17202211

main77229-48170iAALH16202211

77197DCLAMP, EVAPORATION VENT TUBE, NO.2

main77197-33080iAALH10,15,SALA15,TALA1#,TALH17202211

77209FTUBE SUB-ASSY, FUEL TANK MAIN

main77209-42250iAALH16202211

main77209-48200iSALA15,TALA10..LHD202211

TAIWAN SPEC

main77209-48210iTALA15;TALA10..RHD202211

main77209-48220iAALH10..LHD;AALH15,TALH17..CHI,EUR202211

BRAZIL SPEC

main77209-48220iAALH10..LHD;AALH15,TALH17..CHI,EUR202211

TAIWAN SPEC

main77209-48240iAALH15,TALH17..LHD..EUR202211

GEORGIA SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

KAZAKHSTAN SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

UKRAINE SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

AZERBAIJAN SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

MOROCCO SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

MONGOLIA SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

MOLDOVA SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

KYRGYZSTAN SPEC

main77209-48240iAALH10..RHD;AALH15,TALH17..GCC,GEN202211

ARMENIA SPEC

77210PIPE ASSY, FUEL TANK FILLER

main77210-48560iSALA15202410

main77210-48570iTALH17..LHD..GEN202211

BRAZIL SPEC

main77210-48580iAALH16..CHI202211

main77210-48590iTALA10..LHD202211

TAIWAN SPEC

main77210-48600iAALH15,TALH17..LHD..GEN202211

TAIWAN SPEC

main77210-48610iAALH16..EUR,GEN202211

main77210-48620iTALA15;TALA10..RHD202211

main77210-48630iTALH17..LHD..EUR202211

KAZAKHSTAN SPEC

main77210-48630iTALH17..LHD..EUR202211

UKRAINE SPEC

main77210-48630iTALH17..LHD..EUR202211

AZERBAIJAN SPEC

main77210-48630iTALH17..LHD..EUR202211

GEORGIA SPEC

main77210-48630iTALH17..LHD..EUR202211

MOROCCO SPEC

main77210-48630iTALH17..LHD..EUR202211

MONGOLIA SPEC

main77210-48630iTALH17..LHD..EUR202211

MOLDOVA SPEC

main77210-48630iTALH17..LHD..EUR202211

KYRGYZSTAN SPEC

main77210-48630iTALH17..LHD..EUR202211

ARMENIA SPEC

77221BCLAMP, BREATHR TUBE

main77229-48120iAALH16202211

main77229-48130iAALH10,15,SALA15,TALA1#,TALH17202211

77227BTUBE, FUEL TANK BREATHER, NO.7

main77227-48140iSALA15202410

main77227-48150iTALA1#202211

main77227-48170iTALH17..LHD..GEN202211

BRAZIL SPEC

main77227-48180iAALH10,15,TALH17..EUR,GCC,GEN202211

main77227-48190iAALH16202211

77229CCLAMP, BREATHER TUBE

main77229-48110iAALH1#,SALA15,TALA1#,TALH17202211

77229ECLAMP, BREATHER TUBE

main77229-48140iSALA15,TALA1#202211

main77229-48180iAALH10,15,TALH17202211

77241WCLIP, TUBE JOINT

main77241-60550iSALA15;AALH10,15,TALA1#,TALH17..EUR,GCC,GEN202211

BRAZIL SPEC

77281RCLAMP, FUEL FILLER PIPE, NO.2

main77229-48140iAALH16202211

main77229-48160iAALH10,15,SALA15,TALA1#,TALH17202211

77285GCLAMP, FUEL TUBE, NO.1

main77285-47120iAALH10,15,SALA15,TALA1#,TALH17202211

77285MCLAMP, FUEL TUBE, NO.1

main77285-48120iAALH10,15,TALH17202211

77285PCLAMP, NO.1(FOR CHARCOAL CANISTER PIPE)

main77285-42200iAALH10,15,TALH17..EUR,GCC,GEN202211

BRAZIL SPEC

77285RCLAMP, FUEL TUBE, NO.1

main77285-30350iAALH1#,SALA15,TALA1#,TALH17202211

77310ACAP ASSY, FUEL TANK

main77300-11010iAALH1#,TALH17..CHI202211

main77300-12020iTALA15;AALH10,TALA10..RHD;AALH15,TALH17..GCC,GEN202211

main77300-33040iAALH16..EUR,GEN202211

BRAZIL SPEC

main77300-33080iSALA15202410

main77300-48020iAALH10..LHD..GEN;AALH15,TALH17..EUR202211-202405

TAIWAN SPEC

77316GASKET, FUEL TANK CAP

main77316-52040iTALA15;AALH10,TALA10..RHD;AALH15,TALH17..GCC,GEN202211

main77316-75020iTALA15..LHD..GEN202211

BRAZIL SPEC

main77316-75020iAALH10..LHD..GEN;AALH15,TALH17..EUR202211-202405

TAIWAN SPEC

77601EBAND SUB-ASSY, FUEL TANK

main77601-48220iSALA15,TALA1#202211

main77601-48240iAALH15,TALH17..EUR202211

main77601-48250iAALH10,15,TALH17..CHI,GCC,GEN202211

main77601-48260iAALH16202211-202411

main77601-48261iAALH16202411

77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH

main77602-48220iTALA1#202211-202407

main77602-48221iSALA15,TALA1#202407

main77602-48240iAALH15,TALH17..EUR202211-202407

main77602-48241iAALH15,TALH17..EUR202407

main77602-48250iAALH10,15,TALH17..CHI,GCC,GEN202211-202407

main77602-48251iAALH10,15,TALH17..CHI,GCC,GEN202407

77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1

main77606-42070iAALH16..EUR,GEN202211-202403

main77606-42080iAALH16202403

main77606-48170iAALH10,15,TALH17202211

main77606-78050iAALH16..CHI202211-202403

sub77606-42070

77613DBOLT, FUEL TANK BAND SET, NO.2

main90119-10995iAALH16202211

L=59

main90119-10A05iAALH16202411

L=29

77642APROTECTOR, FUEL TANK, NO.2

main77642-48080iSALA15,TALA1#202211

main77642-48090iAALH10,15,TALH17202211

77652CUSHION, FUEL TANK, NO.1

main77651-33060iAALH16,SALA15,TALA1#202211

77652ACUSHION, FUEL TANK, NO.2

main77652-33060iAALH16202211

main77652-48040iSALA15,TALA1#202211

main77652-48050iAALH10,15,TALH17202211

77656BCUSHION, FUEL TANK, NO.6

main77656-33010iAALH16,SALA15,TALA1#202211

8202

9011908D17

main90119-08D17
